Oil Pump Assembly: Disassembly

  1. Remove the oil seal retainer.

    Also remove the O-ring and oil seal (air breather).

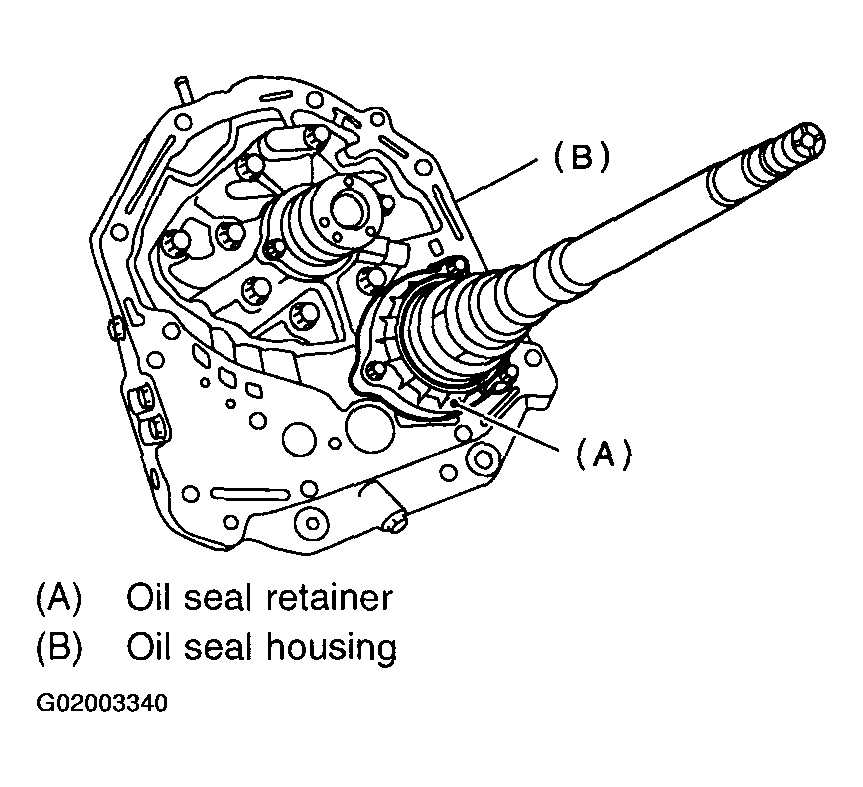

    Fig 1: Removing Oil Seal Retainer
    G02003340
  2. Remove O-rings from oil pump housing.
    CAUTION: Be careful not to damage O-ring.
  3. Remove the four seal rings.
    CAUTION: Be careful not to damage seal ring.

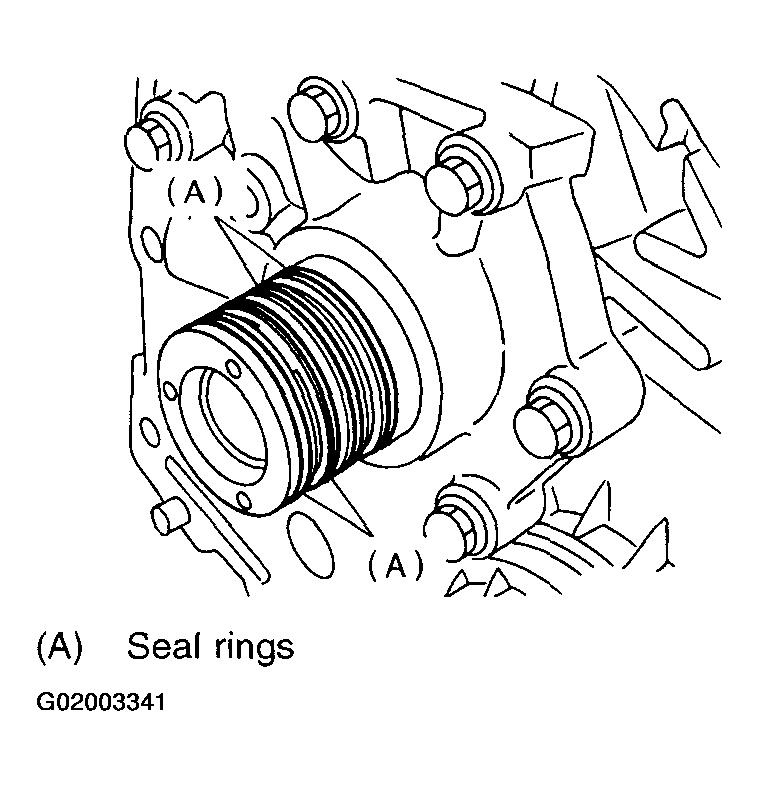

    Fig 2: Removing Four Seal Rings
    G02003341
  4. Remove the oil pump cover.
    NOTE: Lightly tap the end of the stator shaft to remove the cover.

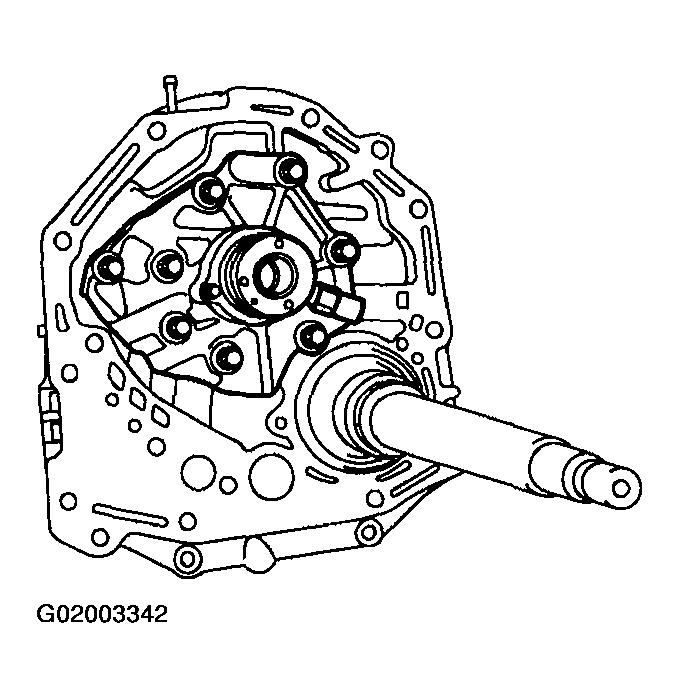

    Fig 3: Removing Oil Pump Cover
    G02003342
  5. Remove the inner and outer rotor.

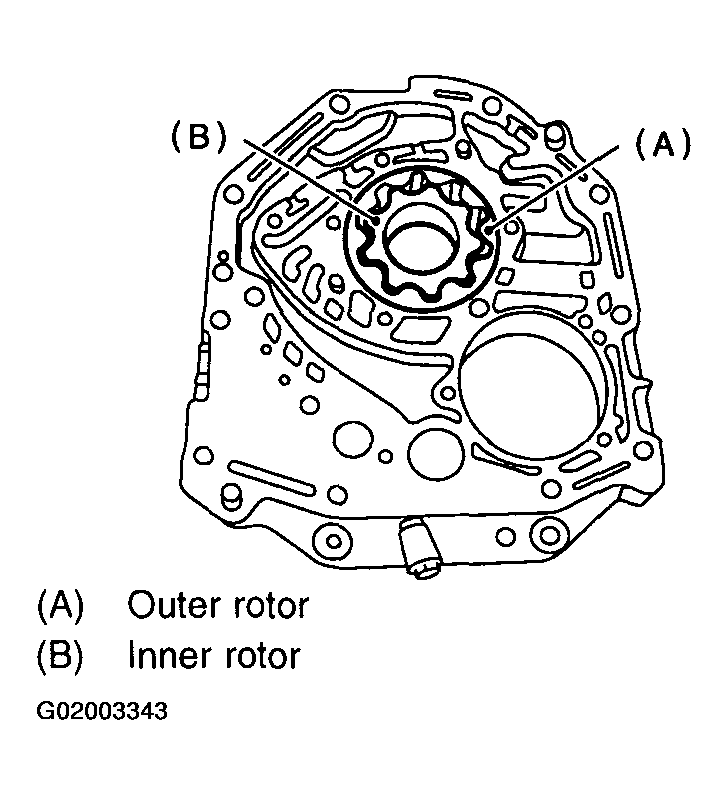

    Fig 4: Removing Inner & Outer Rotor
    G02003343
