Extension Section

Take out the transfer clutch by lightly tapping the end of the rear drive shaft.
CAUTION: Be careful not to damage the oil seal in the extension.

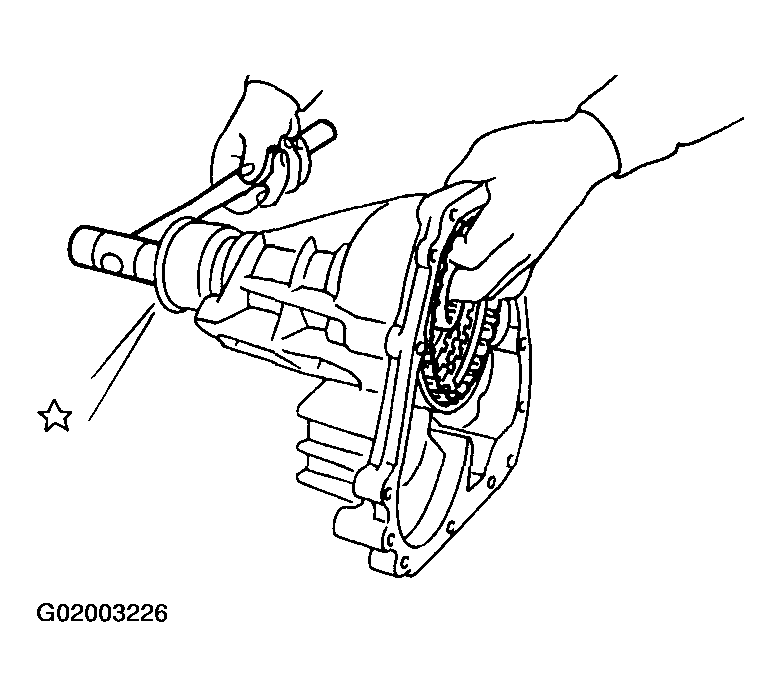

Fig 1: Tapping End Of Rear Drive Shaft For Removal
Remove the transfer pipe.
CAUTION: Be careful not to bend the pipe.

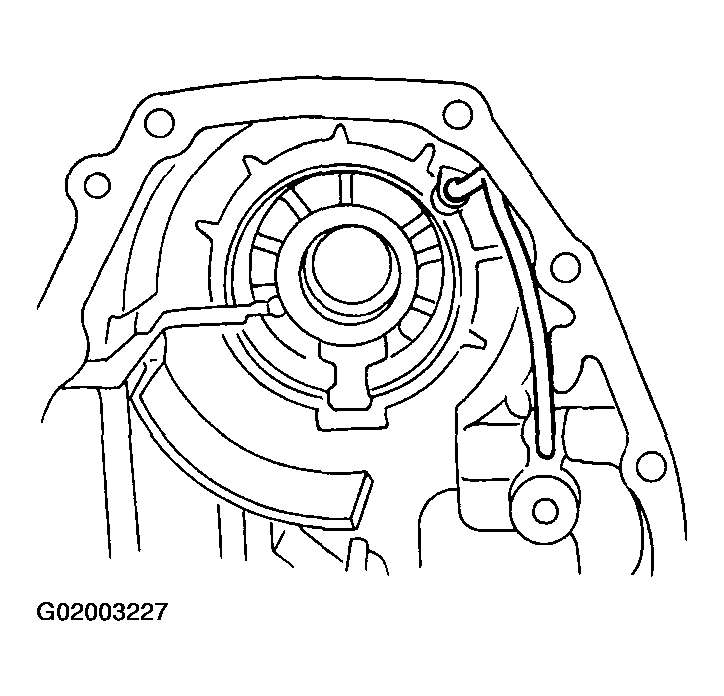

Fig 2: Identifying Transfer Pipe
