Torque Converter Clutch Case Section

Wrap the axle shaft serration with vinyl tape.

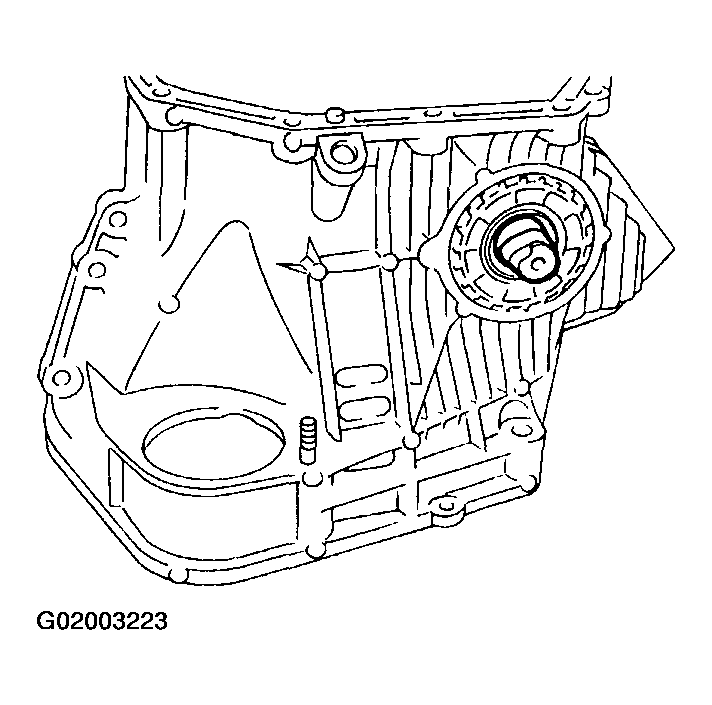

Fig 1: Wrapping Axle Shaft Serration With Vinyl Tape
Remove the differential side retainer with ST.
CAUTION: Hold the differential case assembly by hand to avoid damaging retainer mounting hole of the torque converter clutch case and speedometer gears.

ST 499787000 WRENCH ASSEMBLY
Extract the axle shaft with ST1 and ST2.
CAUTION: Do not reuse the circlip.

ST1 499095500 REMOVER

ST2 499247300 INSTALLER

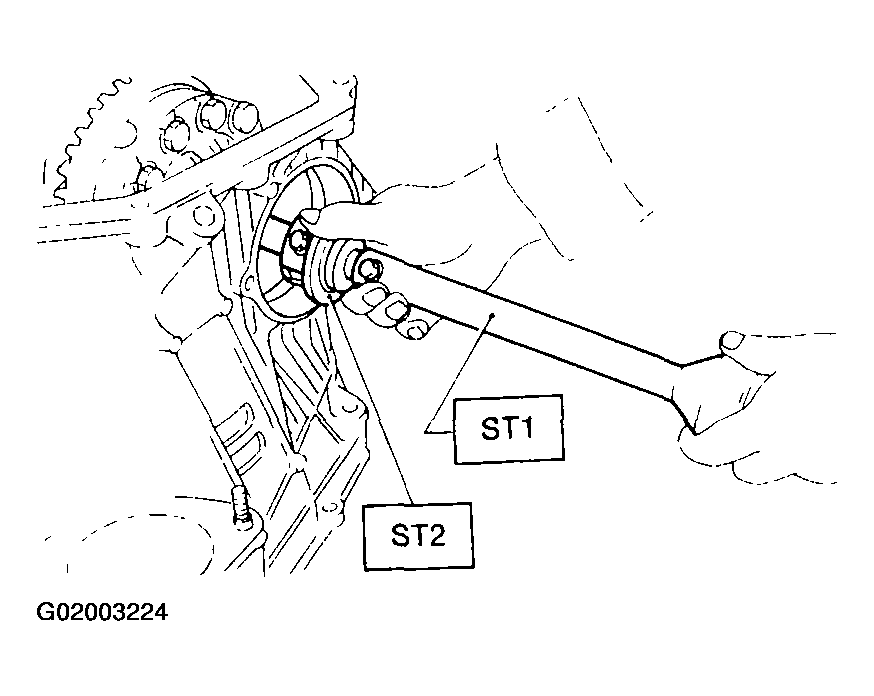

Fig 2: Removing Axle Shaft Using (ST1) & (ST2)
Remove the differential case assembly.
CAUTION:
- Remove the seal pipe if it is attached. (Reusing is not allowed.)
- Be careful not to damage the retainer mounting hole of the torque converter clutch case and the speedometer gears.

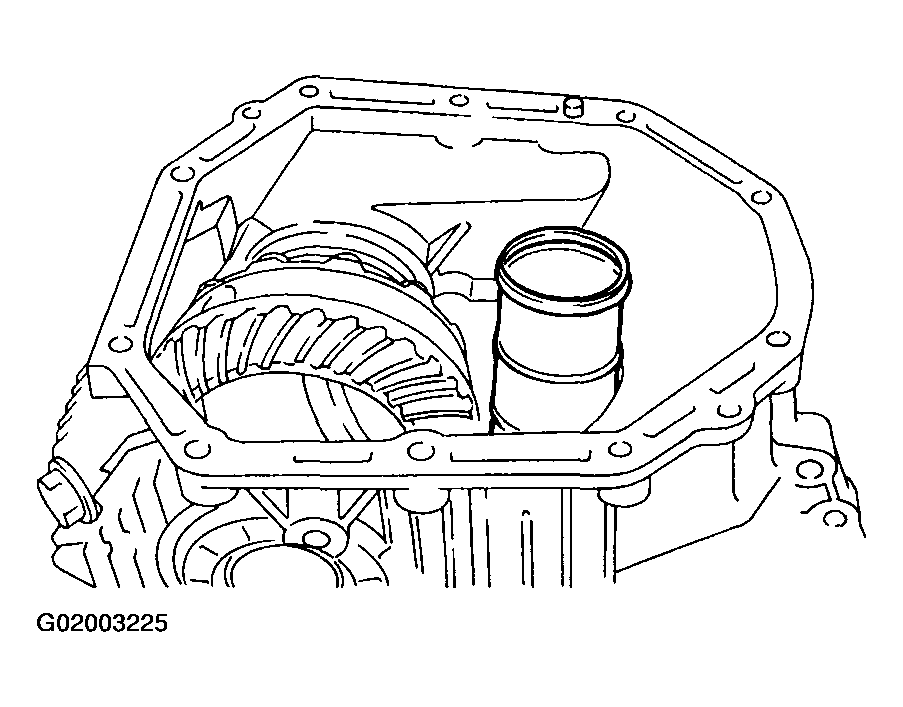

Fig 3: Removing Differential Case Assembly
