Reduction Drive Gear Assembly: Disassembly

  1. Take out the seal rings.
    CAUTION: Be careful not to damage the seal rings.

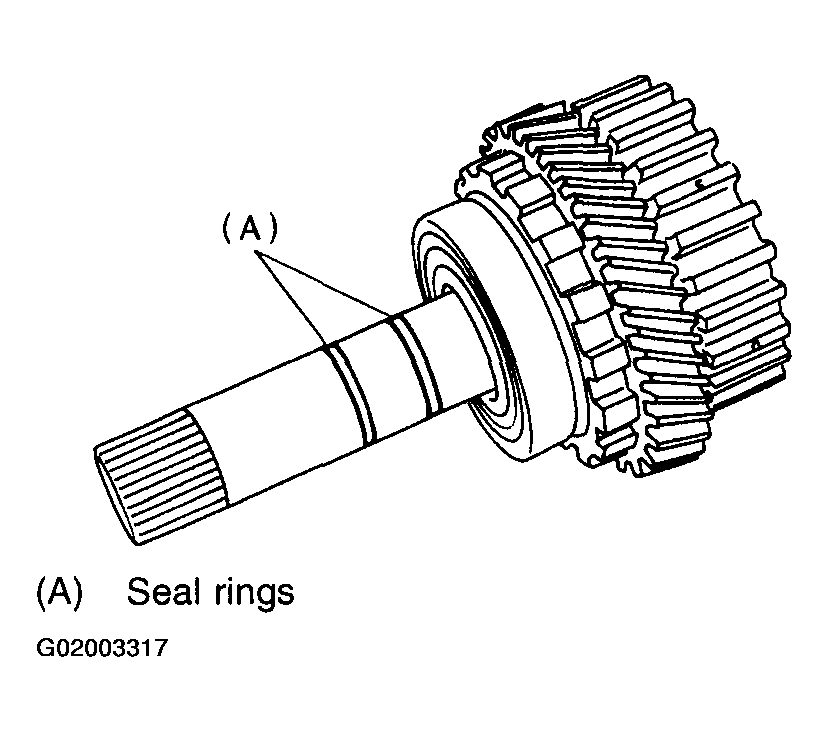

    Fig 1: Identifying Seal Rings
    G02003317
  2. Using ST, remove the ball bearing.

    ST 498077600 REMOVER

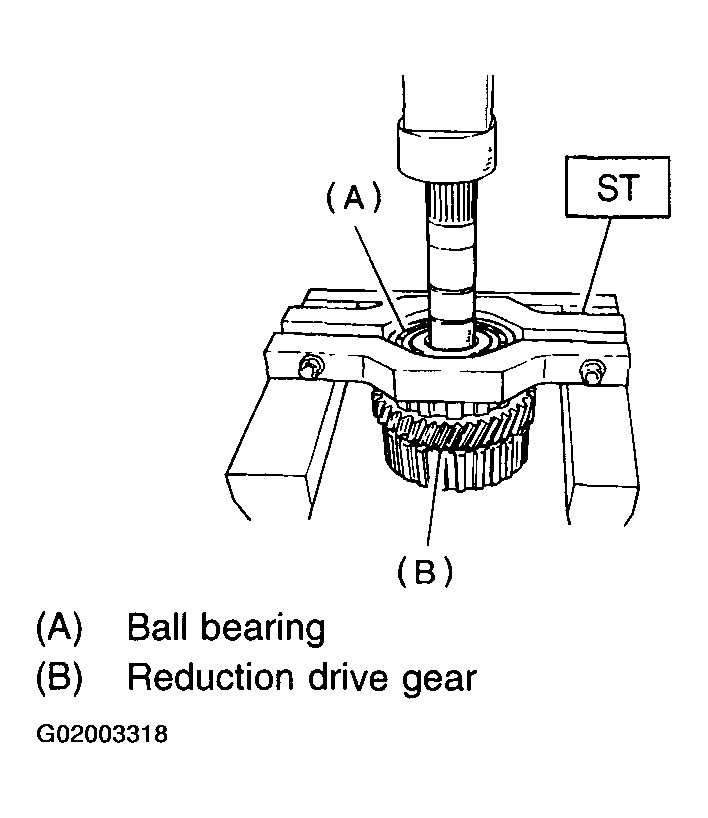

    Fig 2: Removing Ball Bearing Using (ST)
    G02003318
  3. Using a press, remove the reduction drive gear.

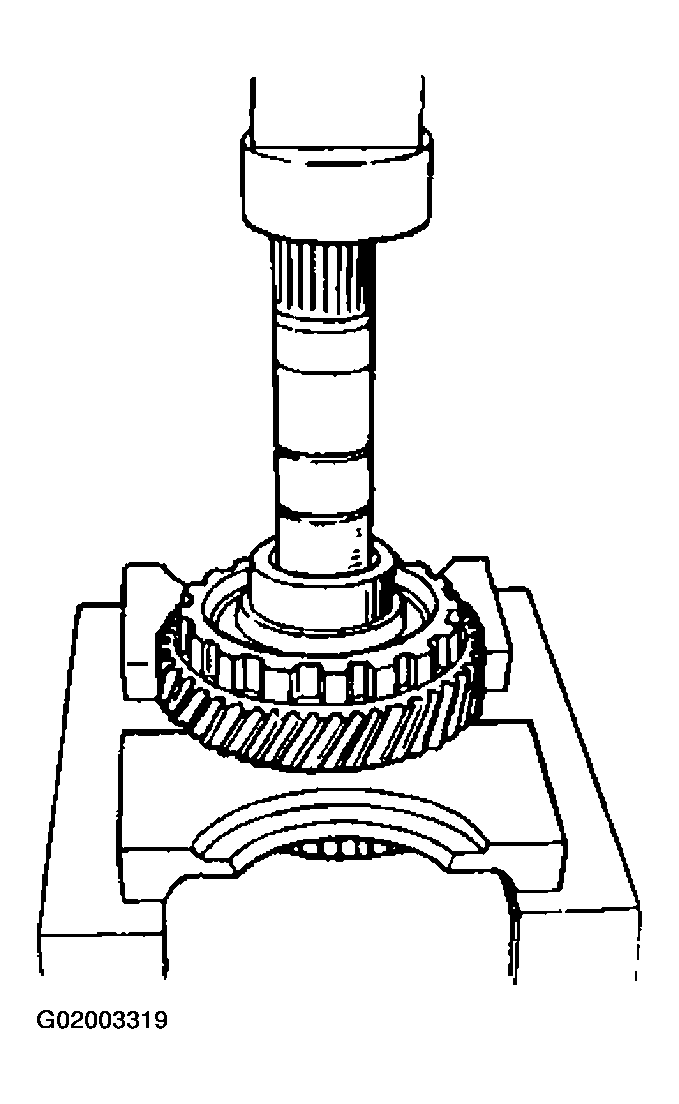

    Fig 3: Removing Reduction Drive Gear
    G02003319
