Reduction Driven Gear: Assembly

  1. Using a press, install ball bearing to reduction driven gear.

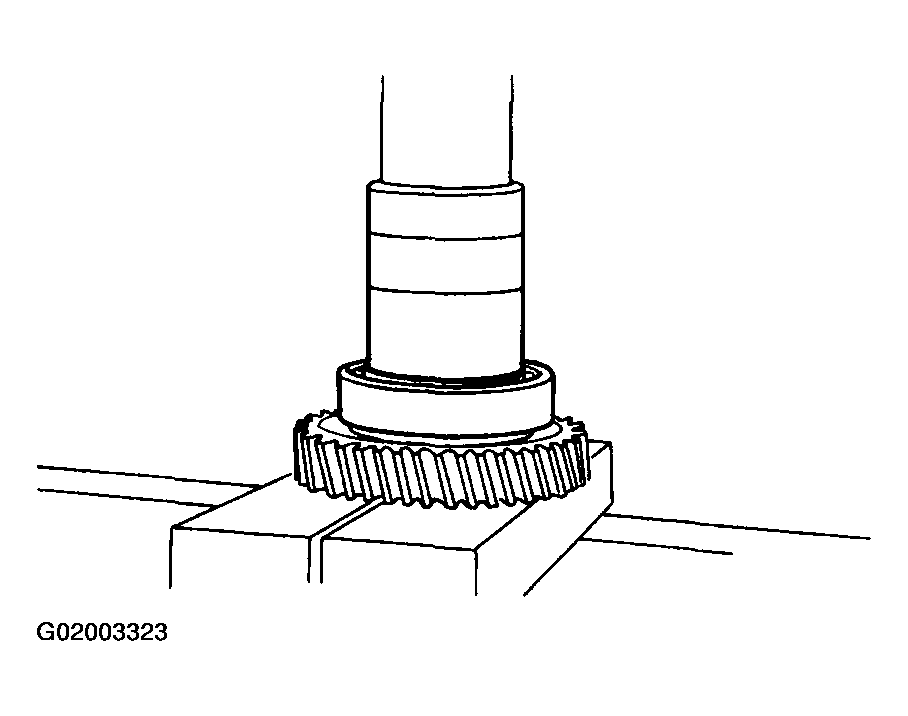

    Fig 1: Installing Ball Bearing To Reduction Driven Gear
    G02003323
  2. Install snap ring to reduction driven gear.

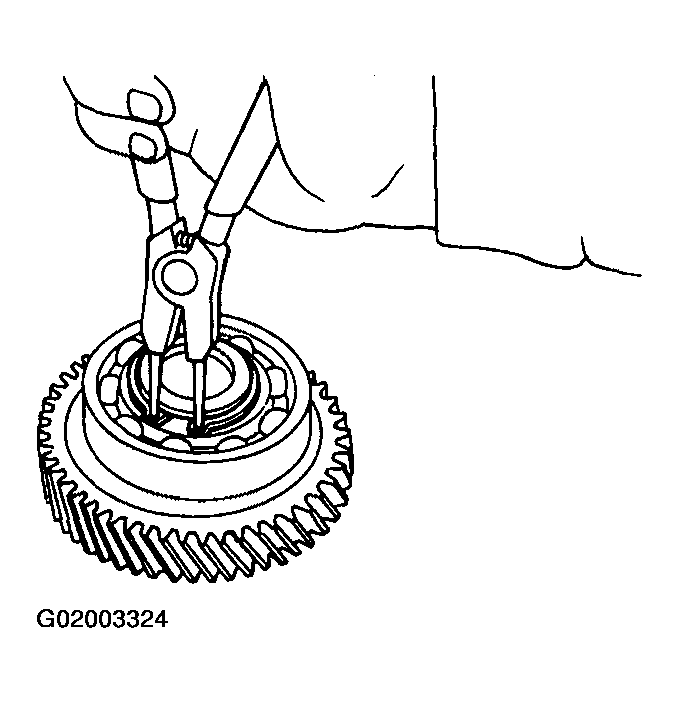

    Fig 2: Installing Snap Ring To Reduction Driven Gear
    G02003324
