Shift Patterns

Check "kick-down".

D range: 1st ^<-- _-->  2nd ^<-- _-->  3rd ^<-- _-->  4th

3 range: 1st ^<-- _-->  2nd ^<-- _-->  3rd<--4th

2 range: 2nd<--3rd<--4th

1 range: 1st<--2nd<--3rd<--4th

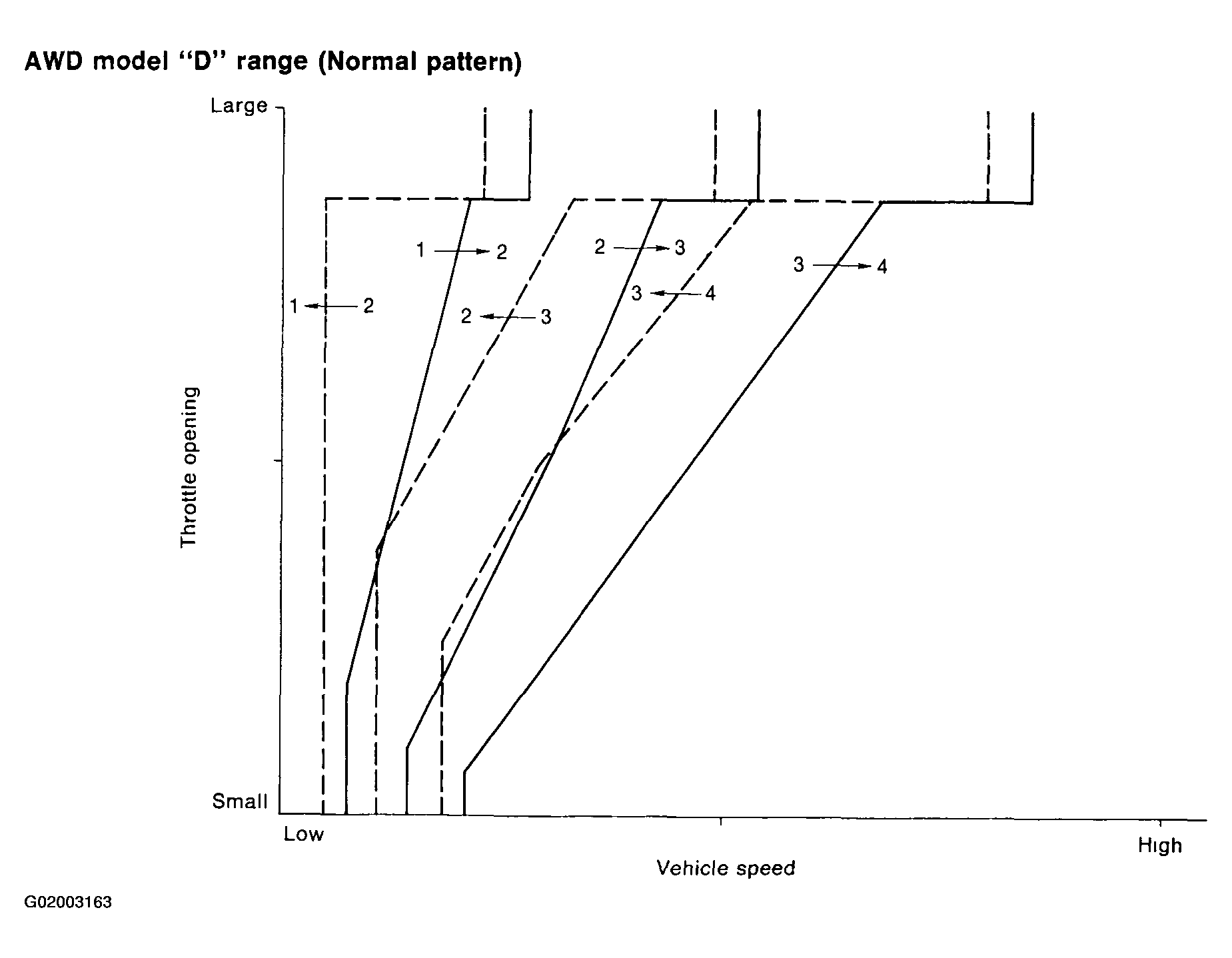

Fig 1: Identifying Shift Pattern (Shown: AWD "D" Range, Normal Pattern)

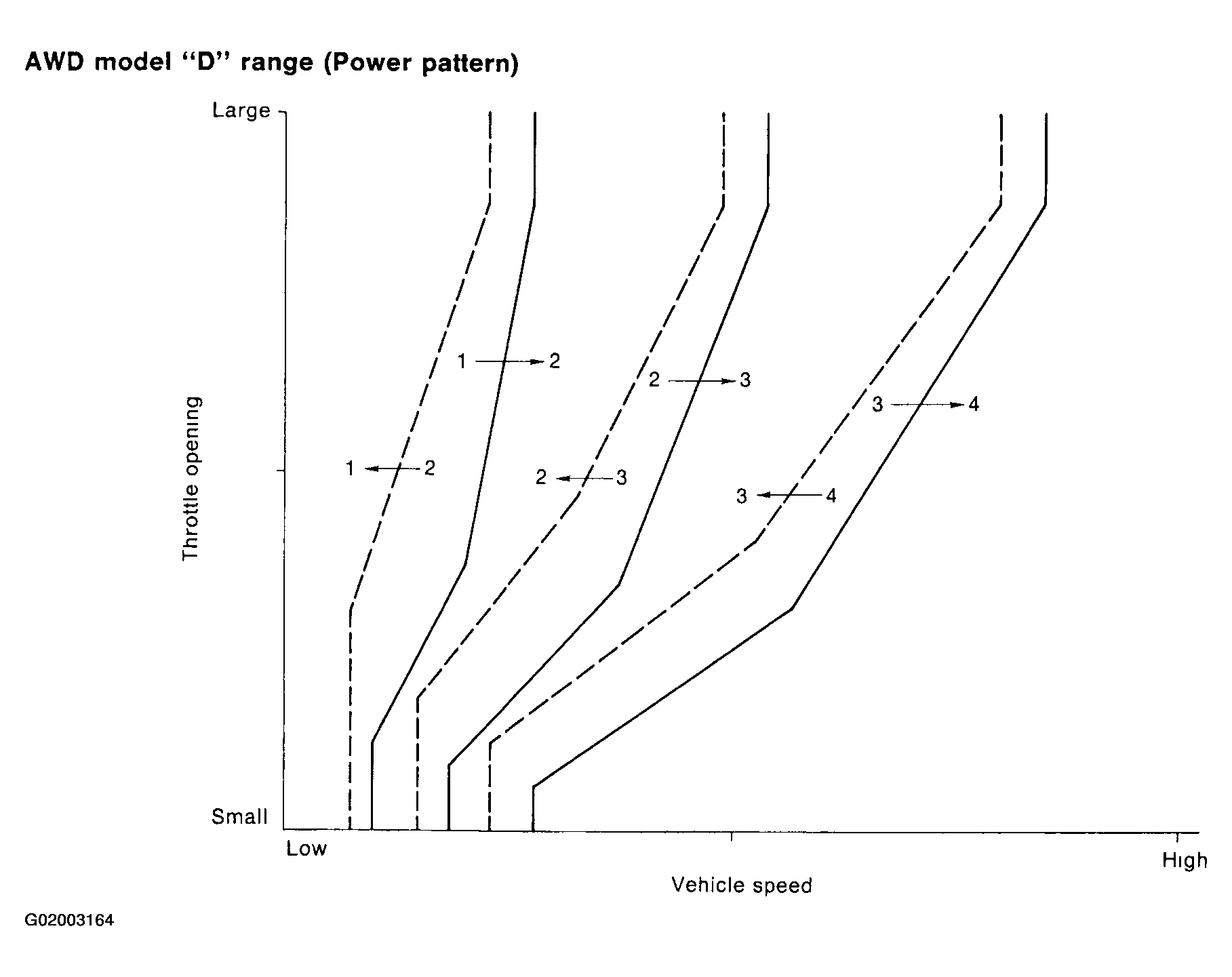

Fig 2: Identifying Shift Pattern (Shown: AWD "D" Range, Power Pattern)
