Sensors (In Transmission): Inspection: Notes

  1. Remove air cleaner case and duct.
  2. Disconnect transmission connector.

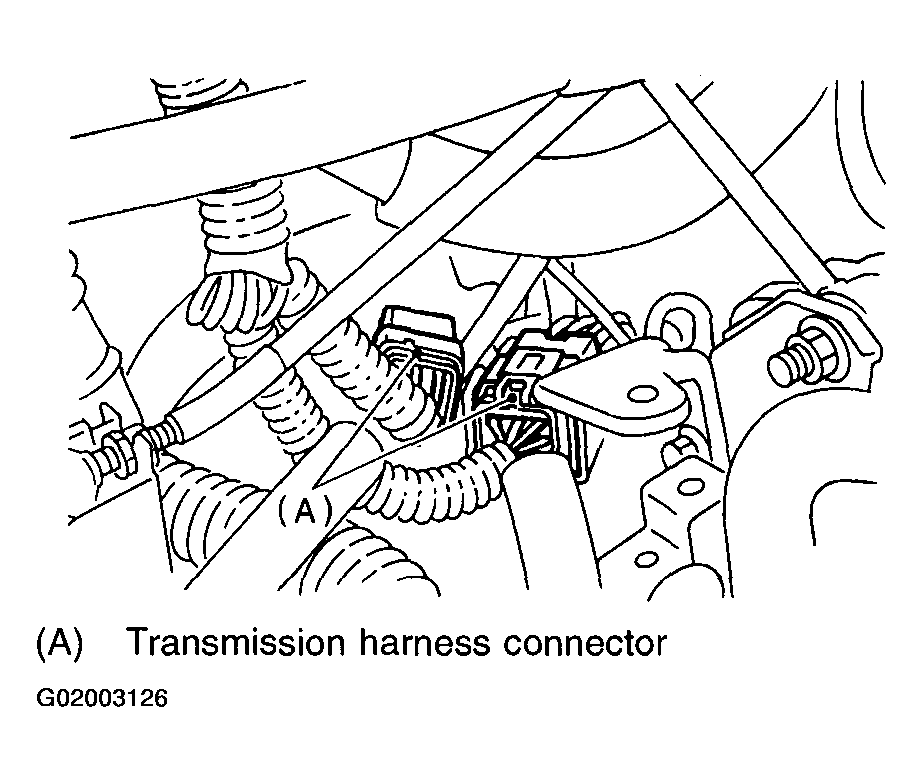

    Fig 1: Identifying Transmission Harness Connectors "A" (Inhibitor Switch & Sensors)
    G02003126
  3. Check each sensor, solenoid and ground system for short circuits.

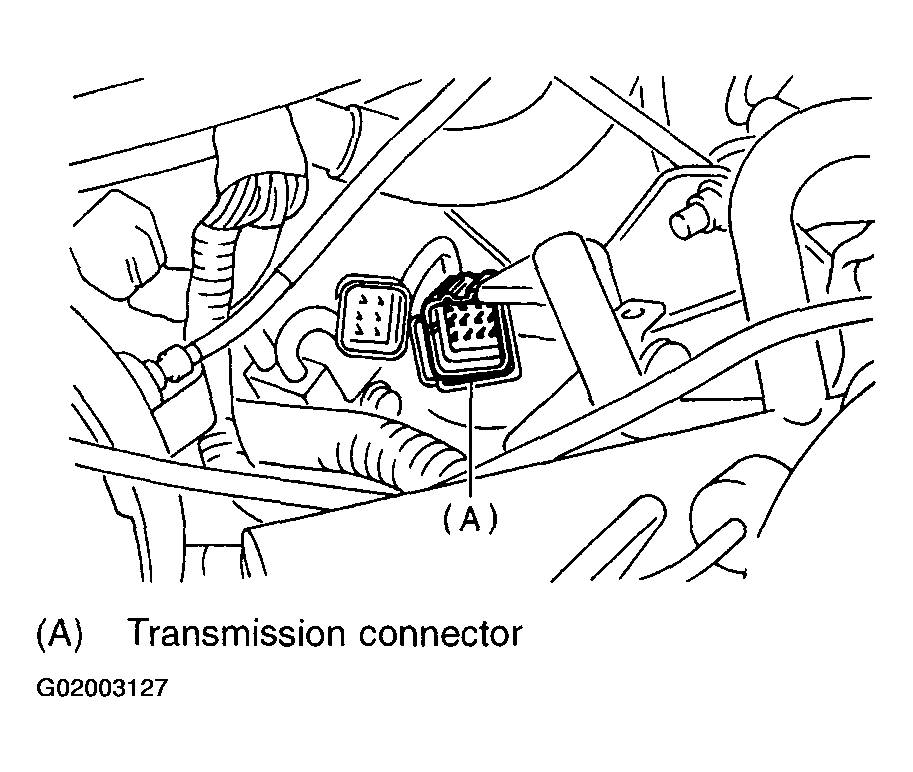

    Fig 2: Identifying Transmission Harness Connector "A" (Sensors)
    G02003127

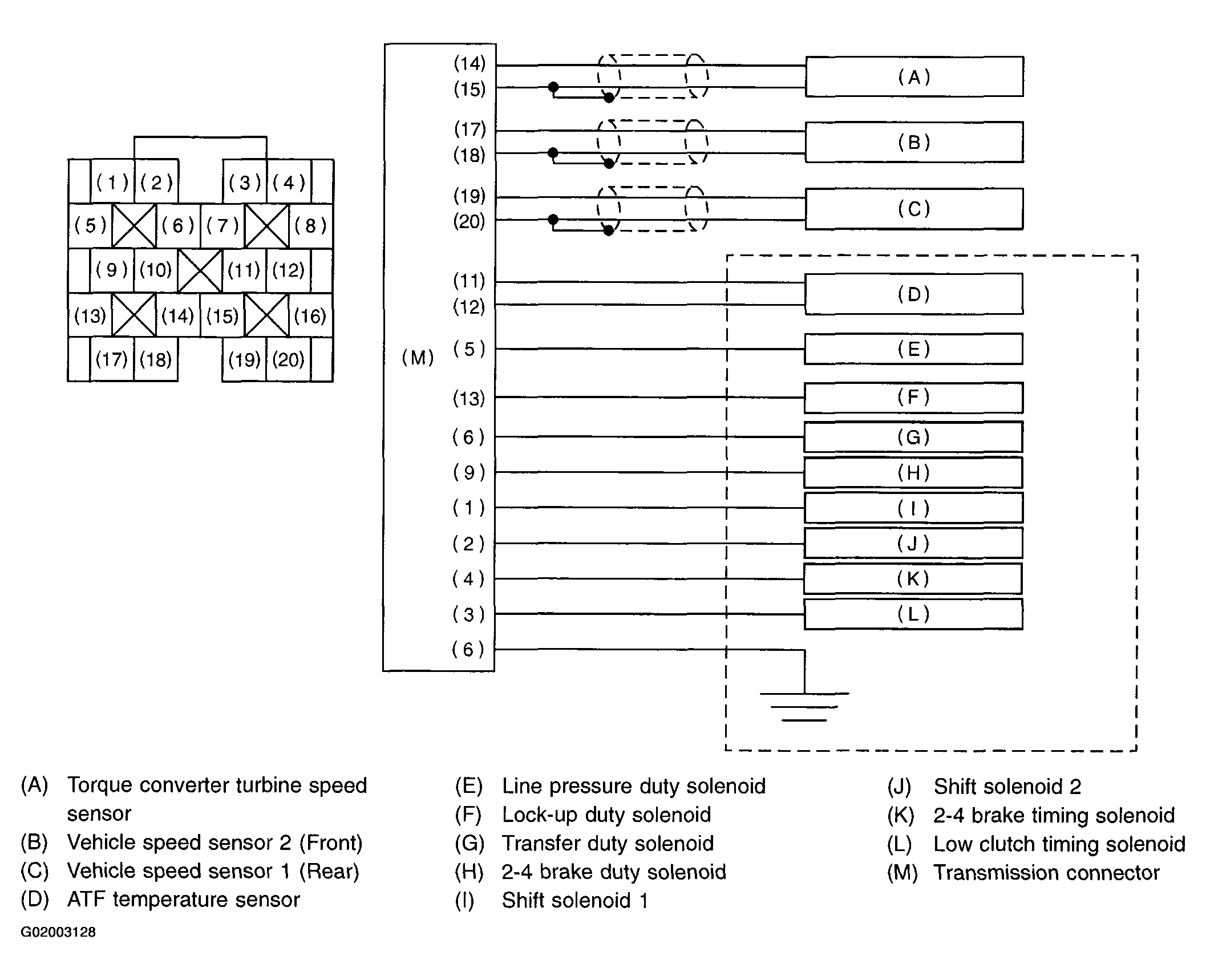

Fig 3: Transmission Harness Connector Terminal Circuits
G02003128
