Transfer Clutch: Assembly

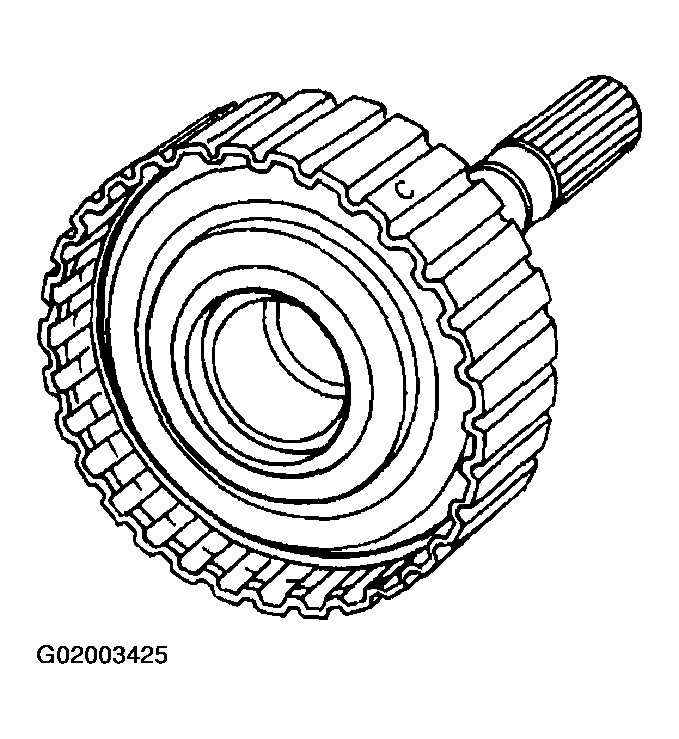

Install the transfer clutch piston.

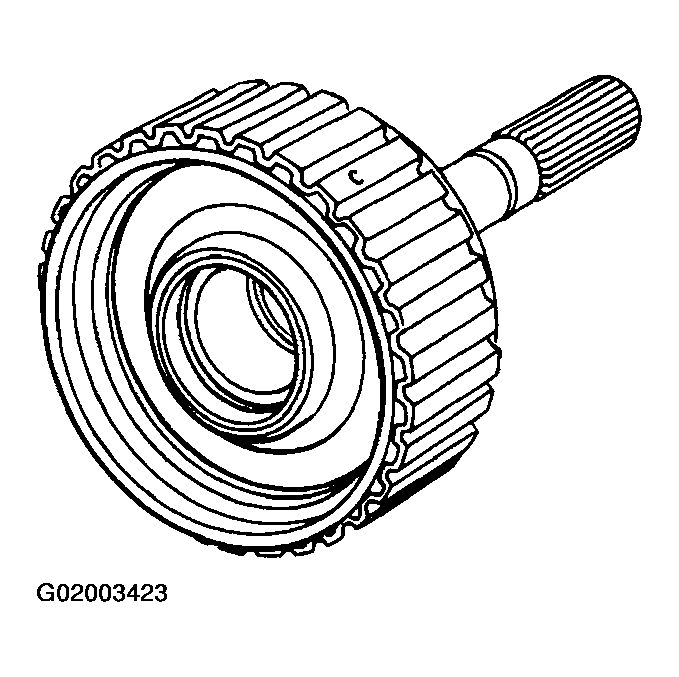

Fig 1: Installing Transfer Clutch Piston

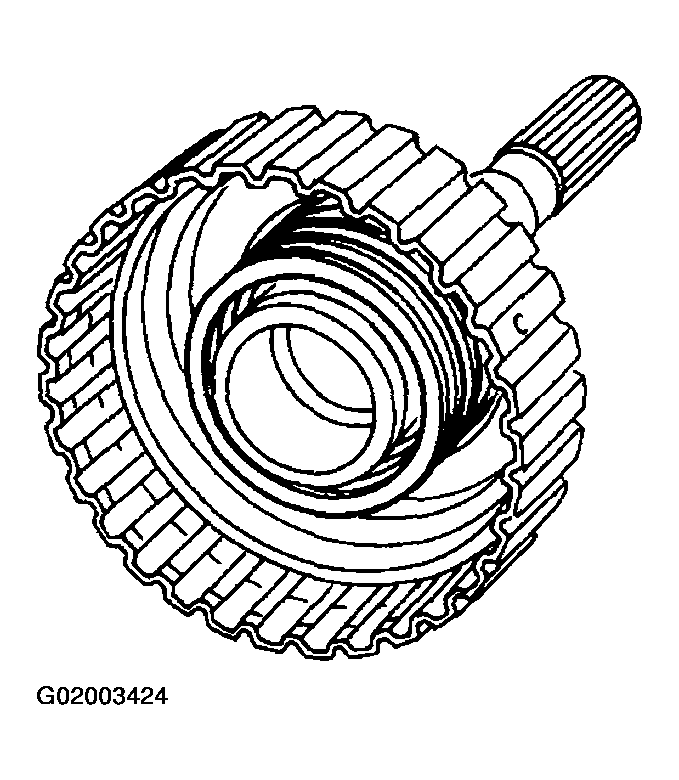

Install return spring to transfer piston.

Fig 2: Installing Return Spring To Transfer Piston

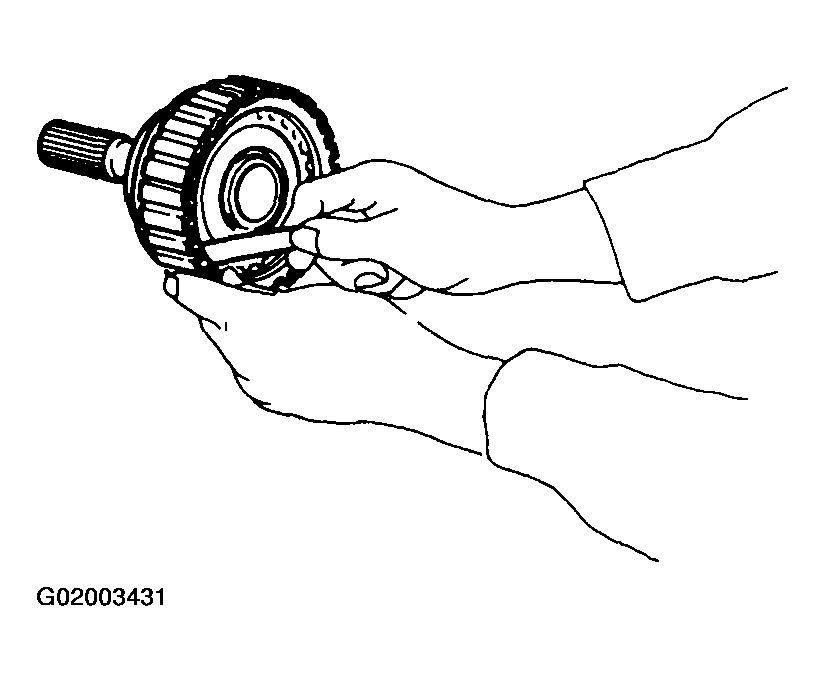

Install transfer clutch piston seal.

Fig 3: Installing Transfer Clutch Piston Seal
Install ST to rear drive shaft.
ST 499257300 SNAP RING OUTER GUIDE

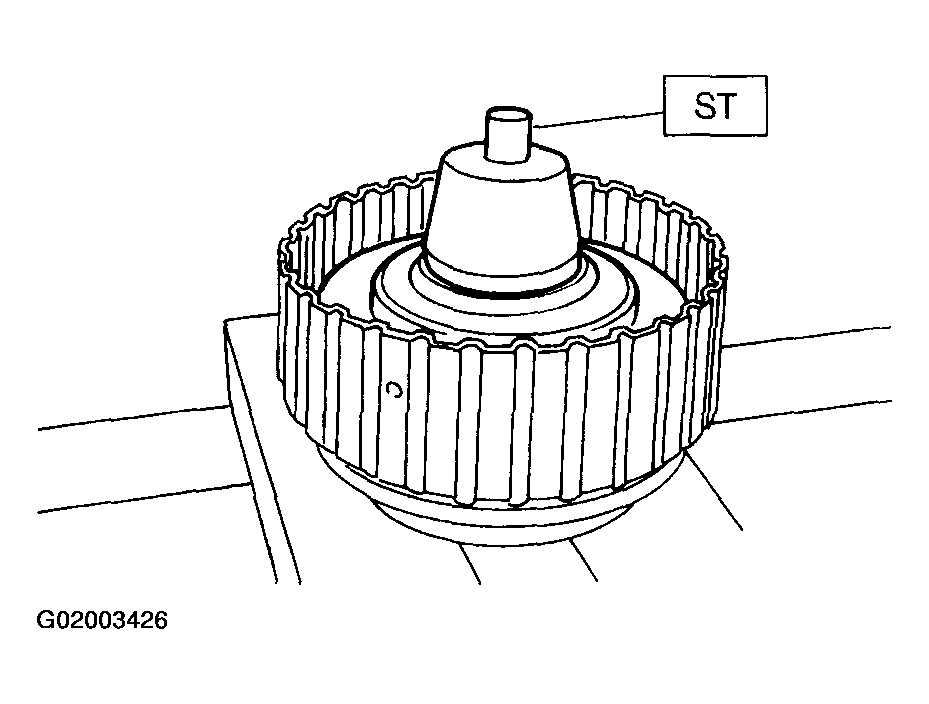

Fig 4: Installing (ST) To Rear Drive Shaft
Install snap ring to ST.
ST 499257300 SNAP RING OUTER GUIDE

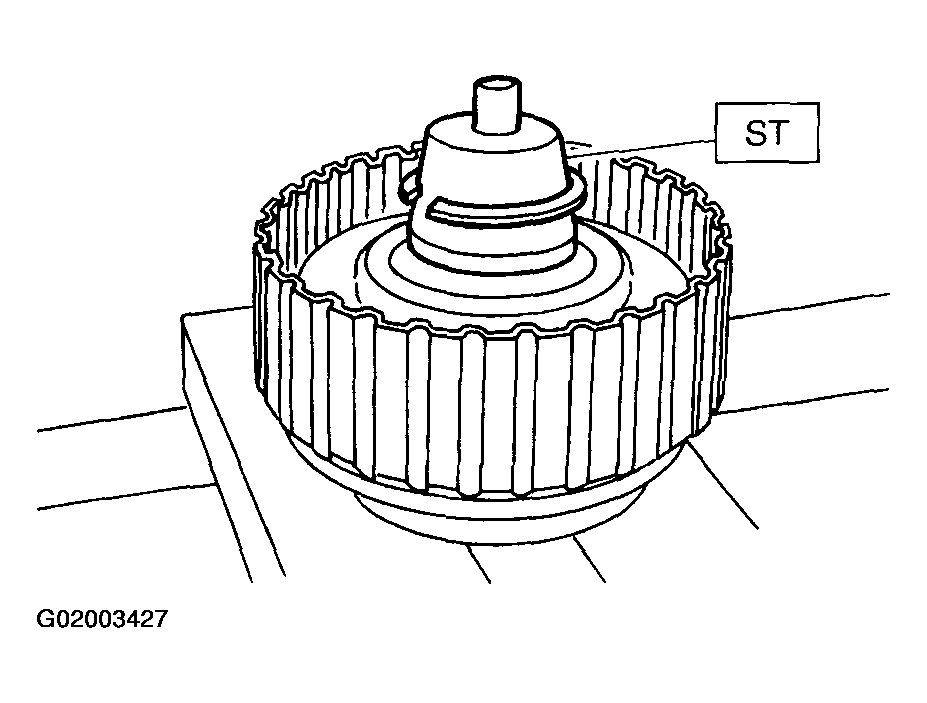

Fig 5: Installing Snap Ring To (ST)

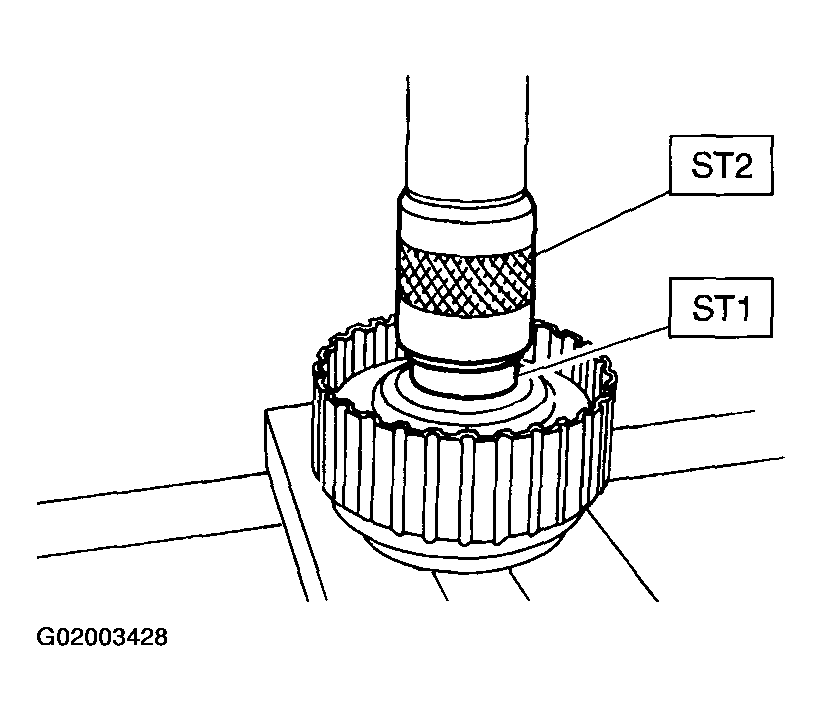

Using ST1 and ST2, install snap ring to rear drive shaft.
NOTE: After installing snap ring, remove ST1 and ST2.

ST1 499257300 SNAP RING OUTER GUIDE

ST2 499247400 INSTALLER

Fig 6: Installing Snap Ring To Rear Drive Shaft

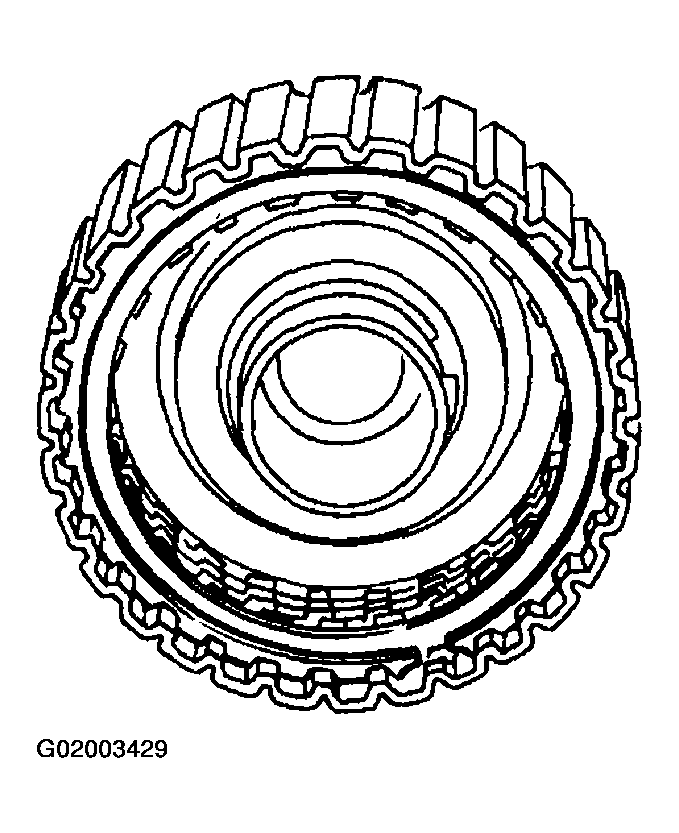

Install the driven plates, drive plates, pressure plate and snap ring.

Fig 7: Installing Driven Plates & Related Components

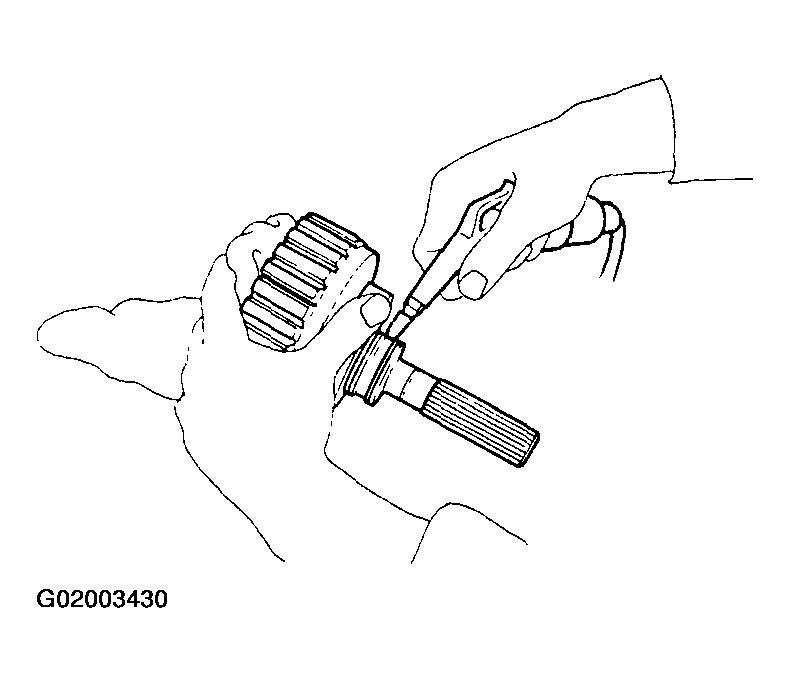

Apply compressed air to see if the assembled parts move smoothly.

Fig 8: Checking Assembled Parts For Smooth Operation
Check the clearance.
NOTE: Before measuring clearance, place the same thickness of shim on both sides to prevent pressure plate from tilting.
If the clearance is not within the specified range, select a proper pressure plate.

Standard value: 0.2 - 0.6 mm (0.008 - 0.024 in)

Allowable limit: 1.6 mm (0.063 in)

Fig 9: Measuring Pressure Plate Clearance

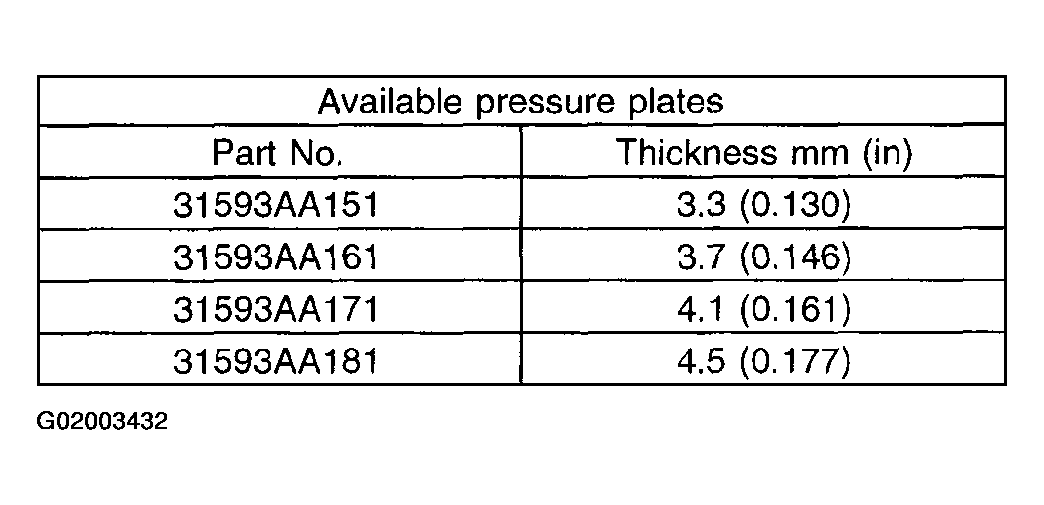

Fig 10: Identifying Pressure Plate Selection Chart
Press-fit the ball bearing with ST.
ST 899580100 INSTALLER

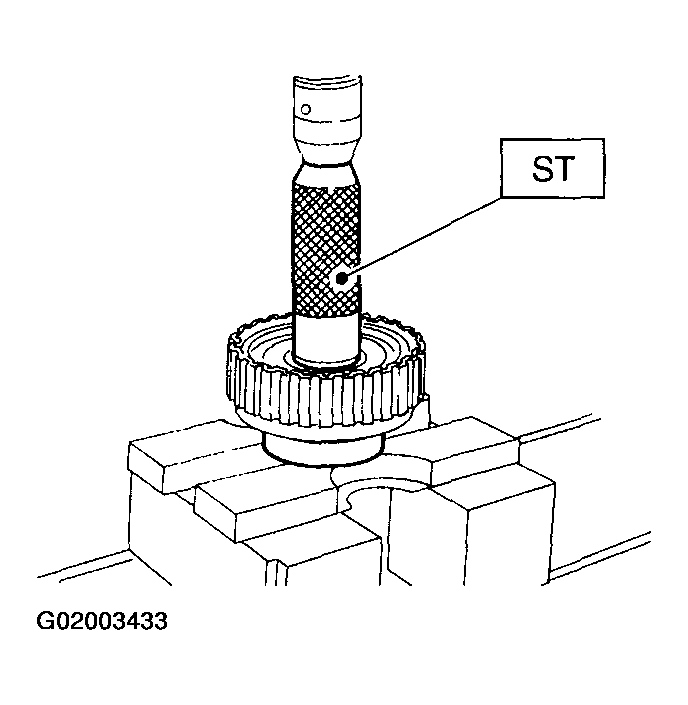

Fig 11: Installing Ball Bearing

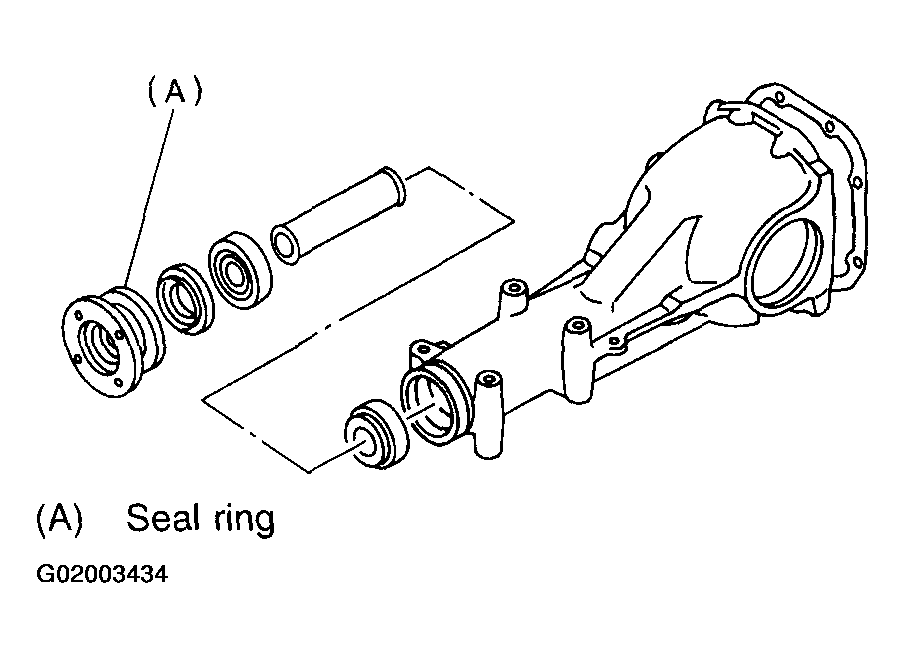

Coat the seal ring with vaseline, and install it in the seal ring groove of the shaft.
CAUTION: Do not expand the seal ring excessively when installing.

ST 899580100 INSTALLER

Fig 12: Installing Seal Ring
