Transfer Clutch: Disassembly

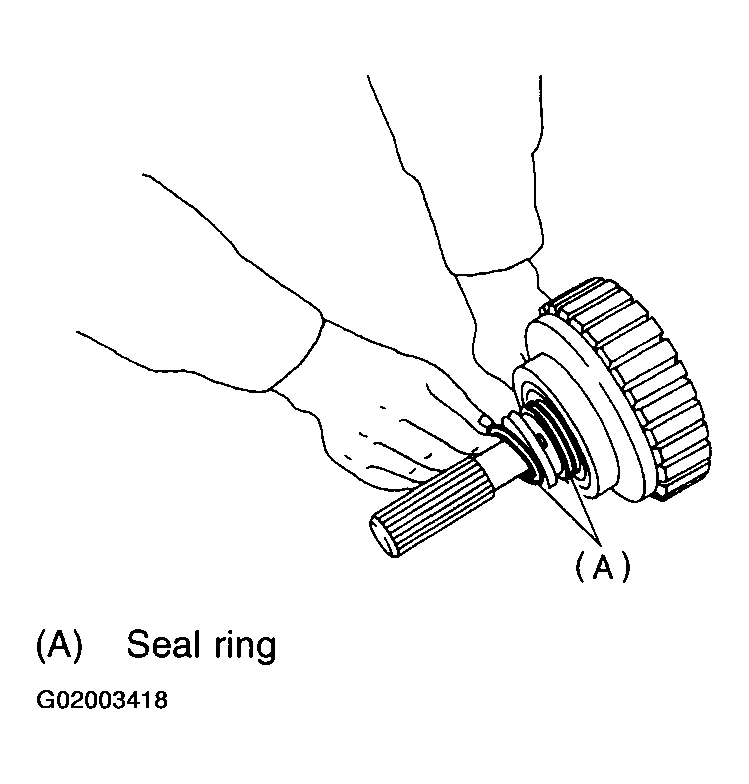

Remove the seal ring.
CAUTION: Be careful not to damage the seal ring.

Fig 1: Removing Seal Ring

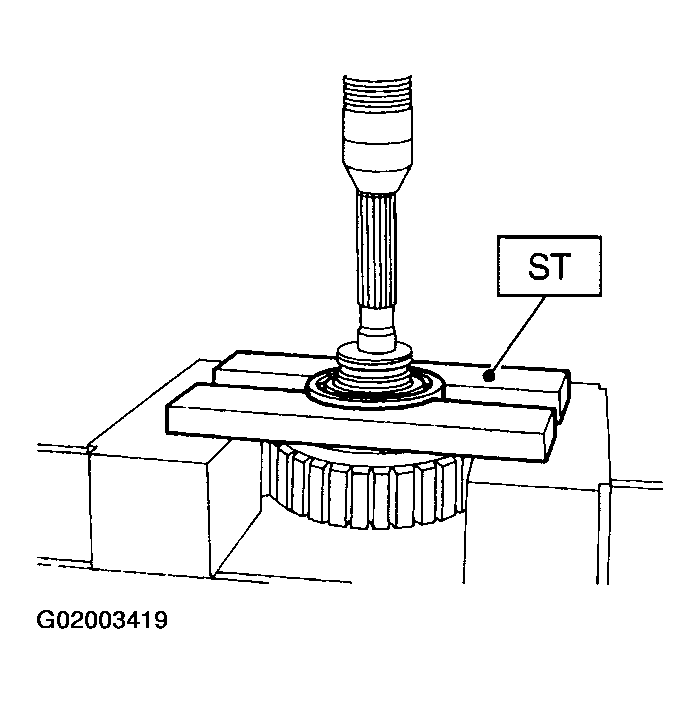

Using a press and ST, remove the ball bearing.
CAUTION: Do not reuse the bearing.

ST 498077600 REMOVER

Fig 2: Removing Ball Bearing

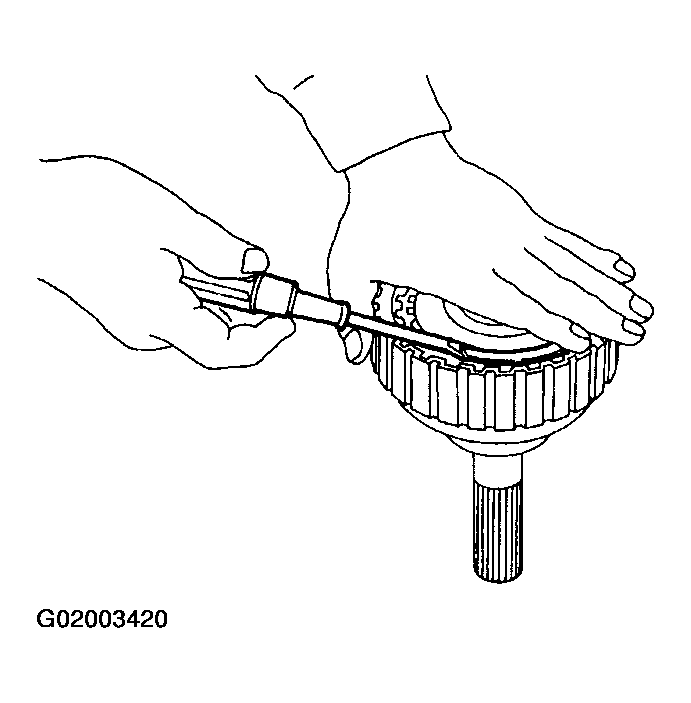

Remove the snap ring, and take out the pressure plate, drive plates, and driven plates.

Fig 3: Removing Snap Ring

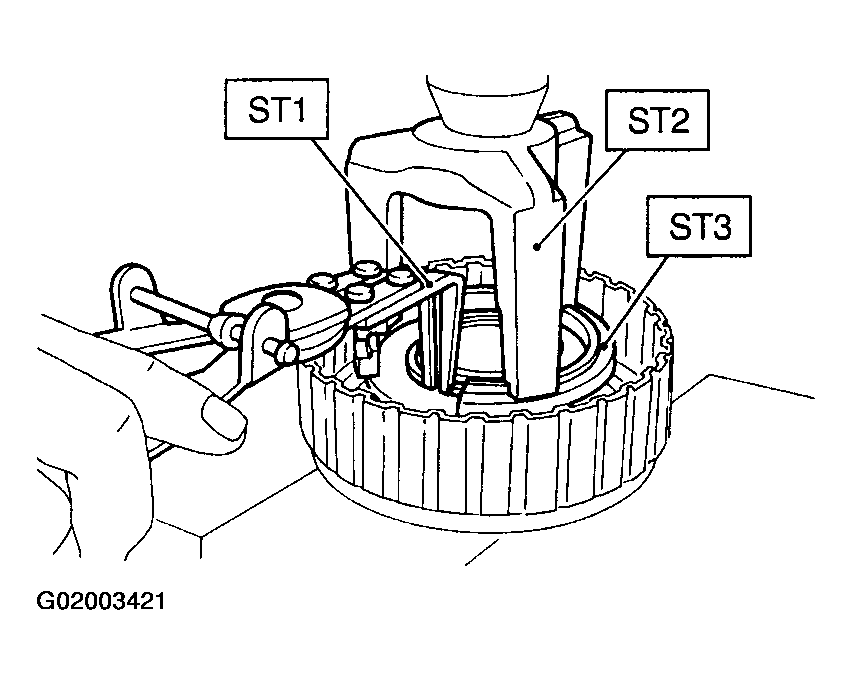

Remove the snap ring with ST1, ST2 and ST3, and take out the return spring and transfer clutch piston seal.
ST1 399893600 PLIERS

ST2 398673600 COMPRESSOR

ST3 398623600 SEAT

Fig 4: Removing Snap Ring

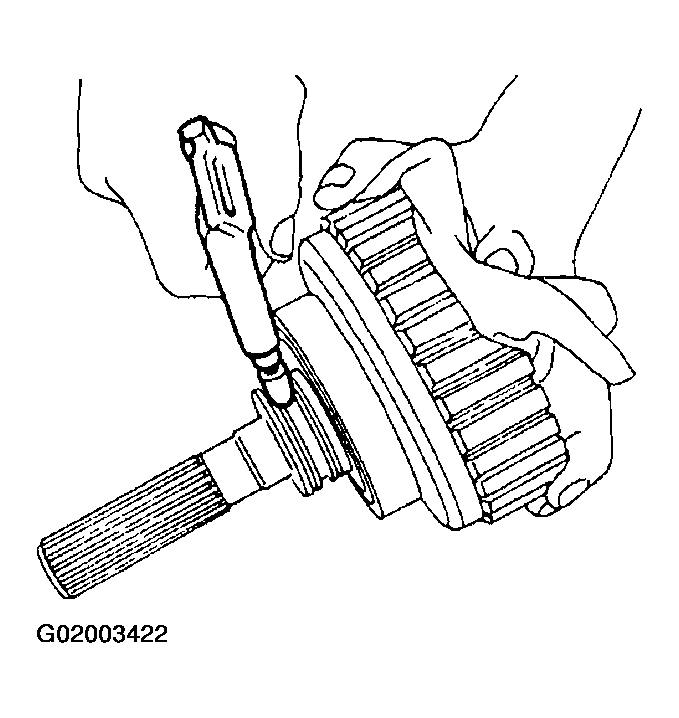

Apply compressed air to the rear drive shaft to remove the piston.

Fig 5: Removing Rear Piston
