Adjusting Parts

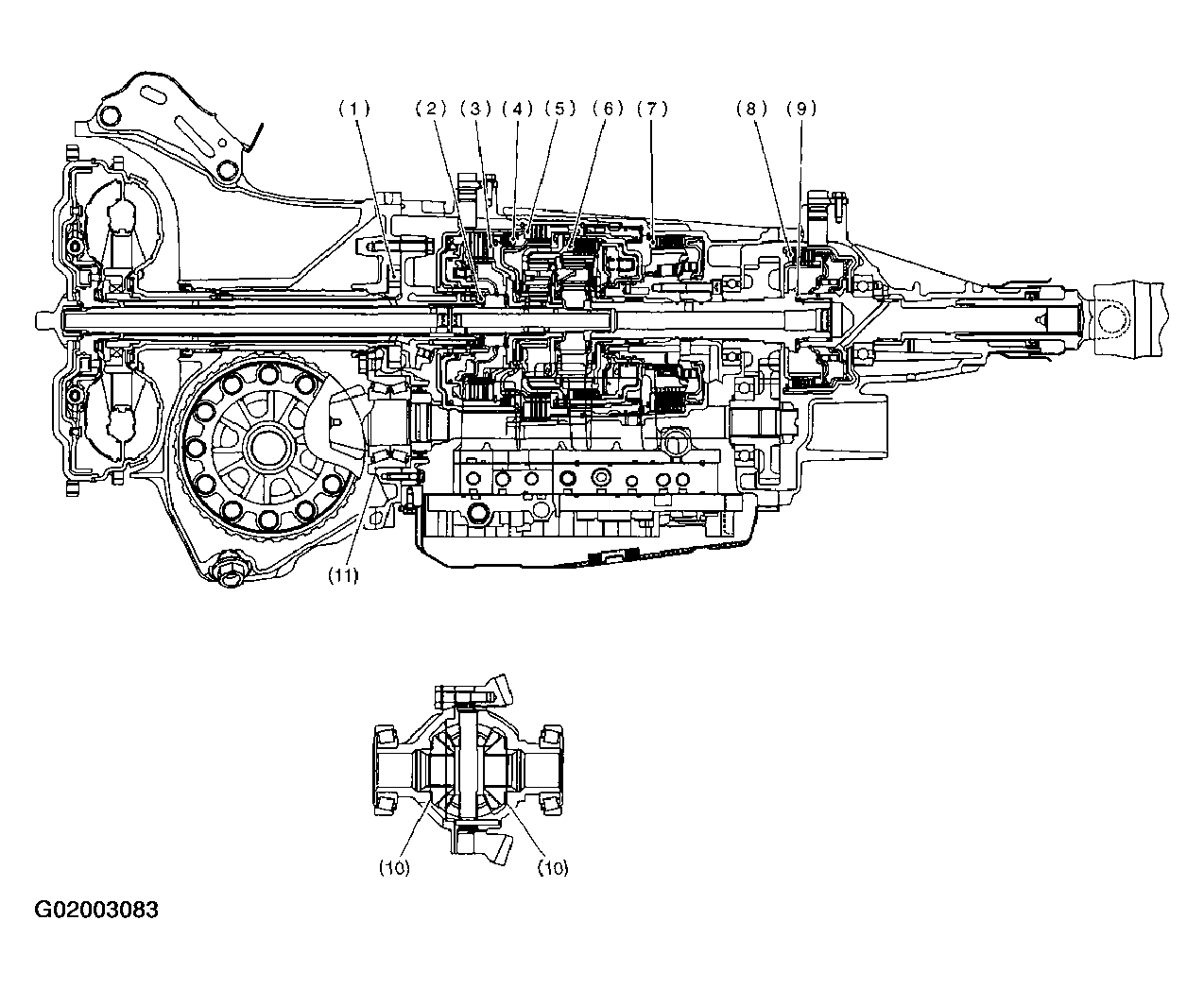

Fig 1: Identifying Adjustable Transmission Parts (1 Of 3)
G02003083

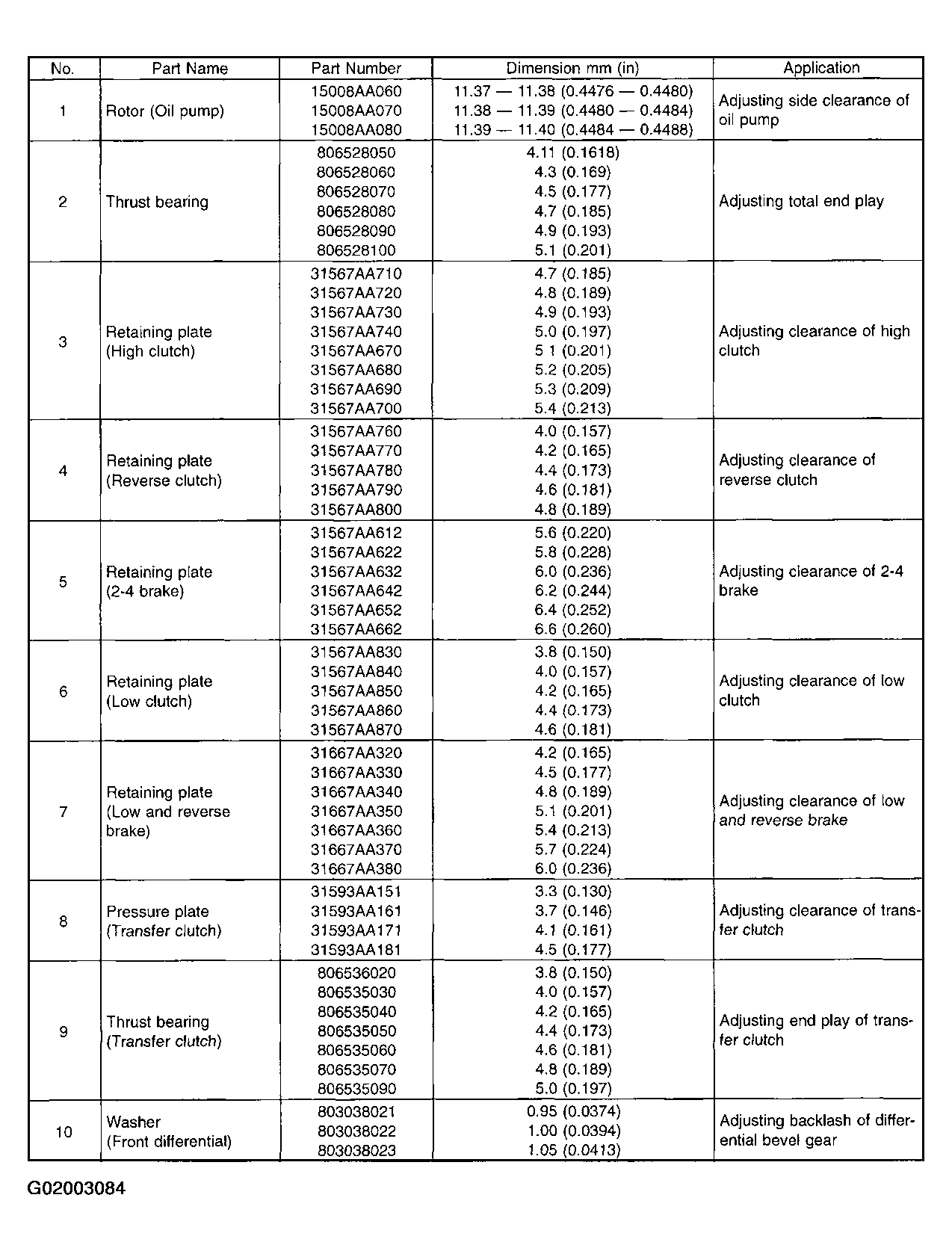

Fig 2: Identifying Adjustable Transmission Parts (2 Of 3)
G02003084

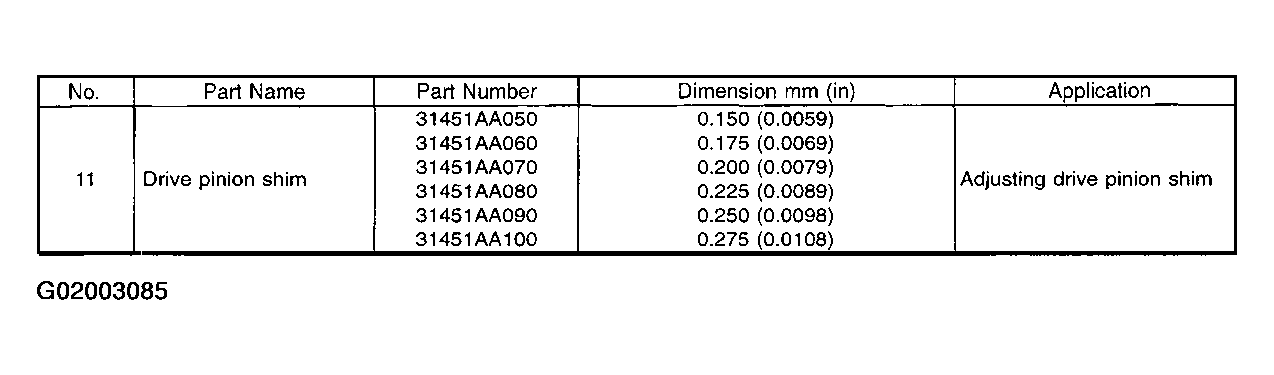

Fig 3: Identifying Adjustable Transmission Parts (3 Of 3)
G02003085
