Differential Gear
Tightening torque: N.m (kgf-m, ft-lb)
T1:
25 (2.5, 18.1)
T2:
62 (6.3, 45.6)

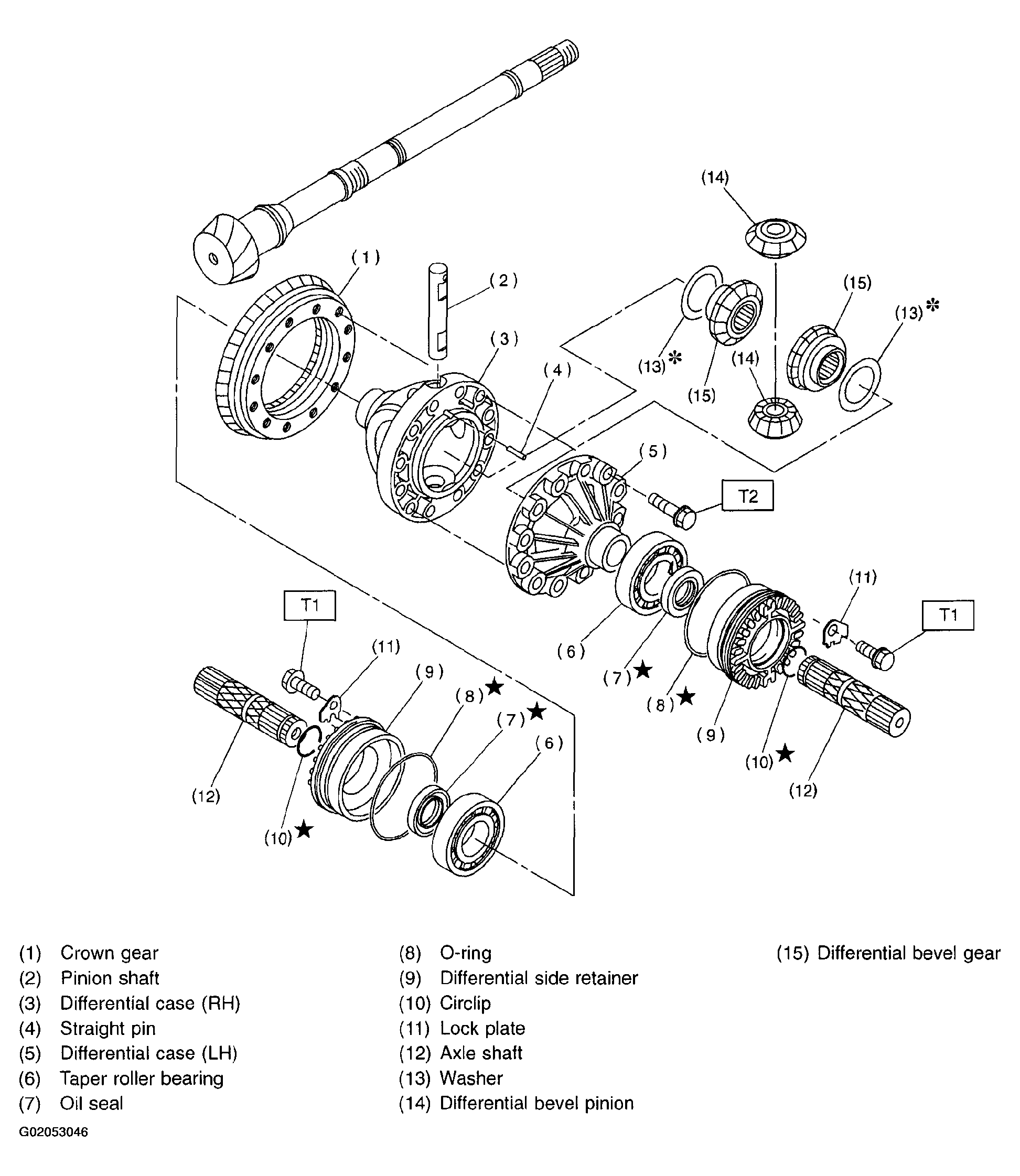

Fig 1: Exploded View Of Differential Gear
