Reduction Drive Gear: Disassembly: AWD

  1. Take out the seal rings.
    CAUTION: Be careful not to damage the seal rings.

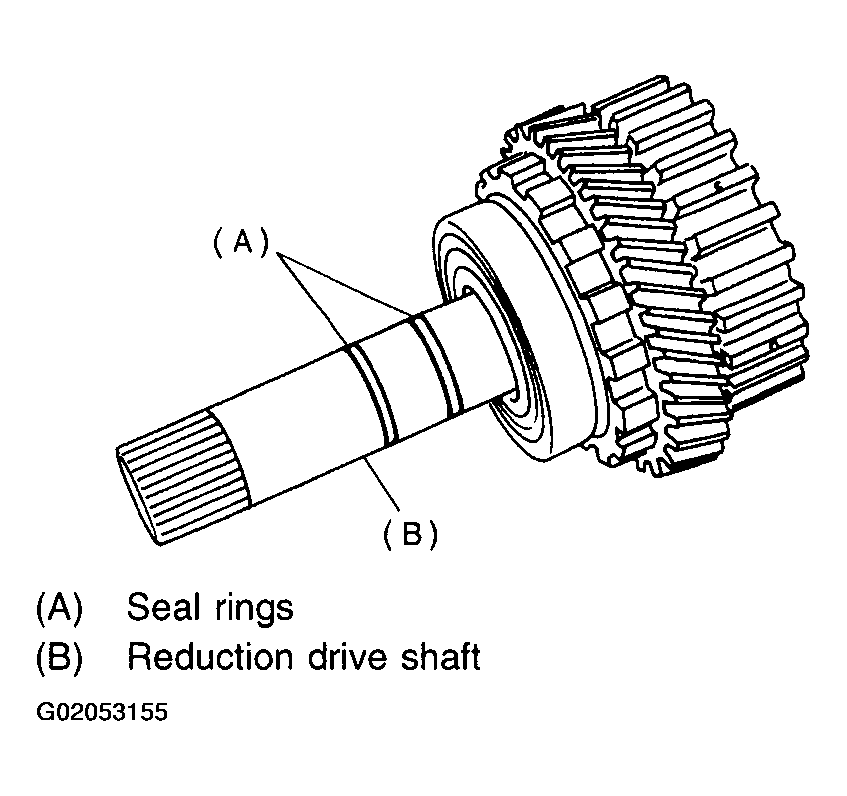

    Fig 1: Taking Out Seal Rings
    G02053155
  2. Using ST, remove the ball bearing.

    ST 498077600 REMOVER

    Fig 2: Removing Ball Bearing
    G02053156
  3. Using a press, remove the reduction drive gear.
    Fig 3: Removing Reduction Drive Gear
    G02053157
