AT Vehicle

The constant-velocity joint propeller shaft is installed to provide quiet operation of drive line components. The center joint is a DOJ (Double Offset Joint) type which extends and retracts in the axial direction.

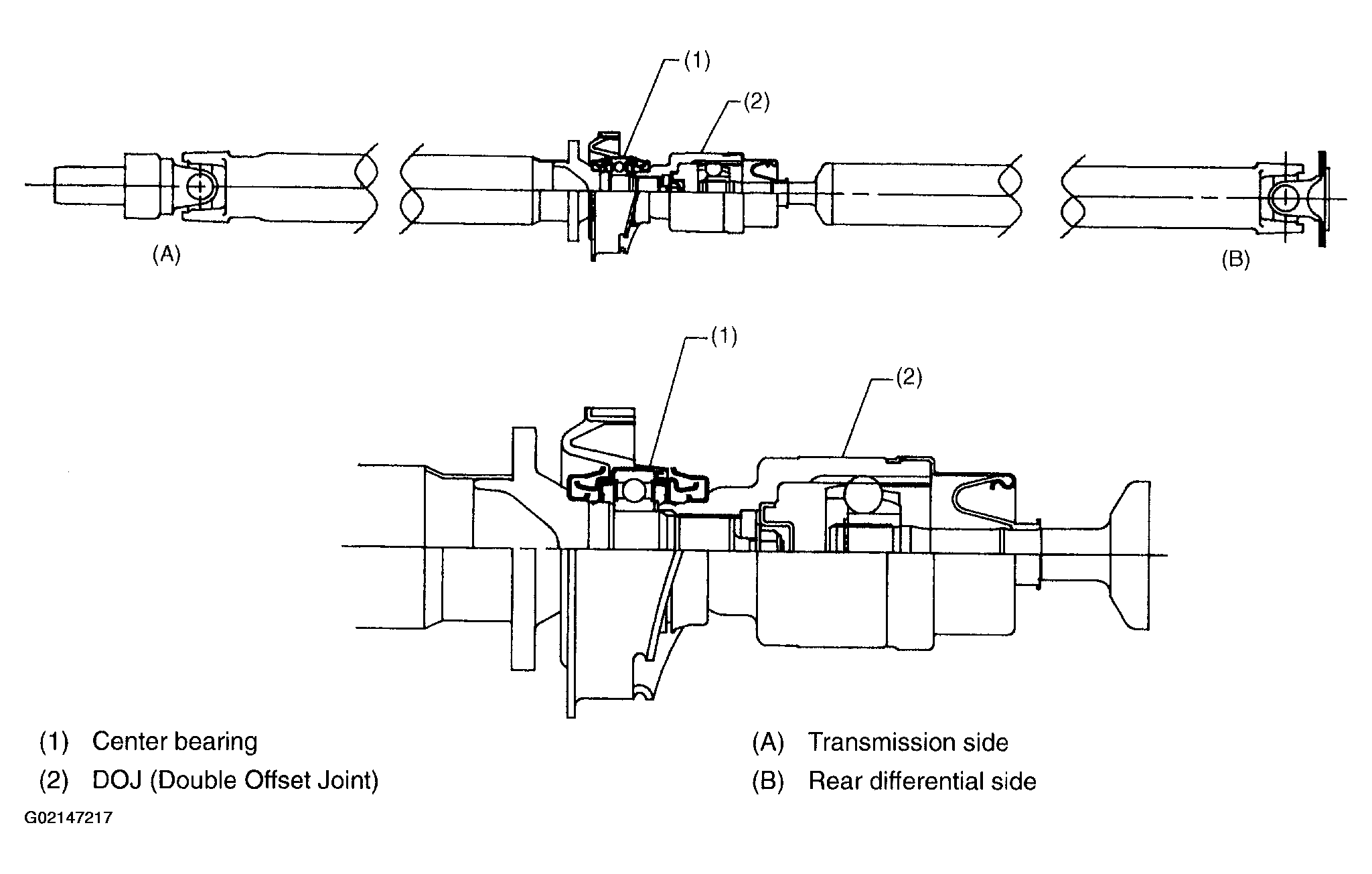

Fig 1: Identifying Propeller Shaft Components (AT Vehicles)
G02147217
