Electrical Specification

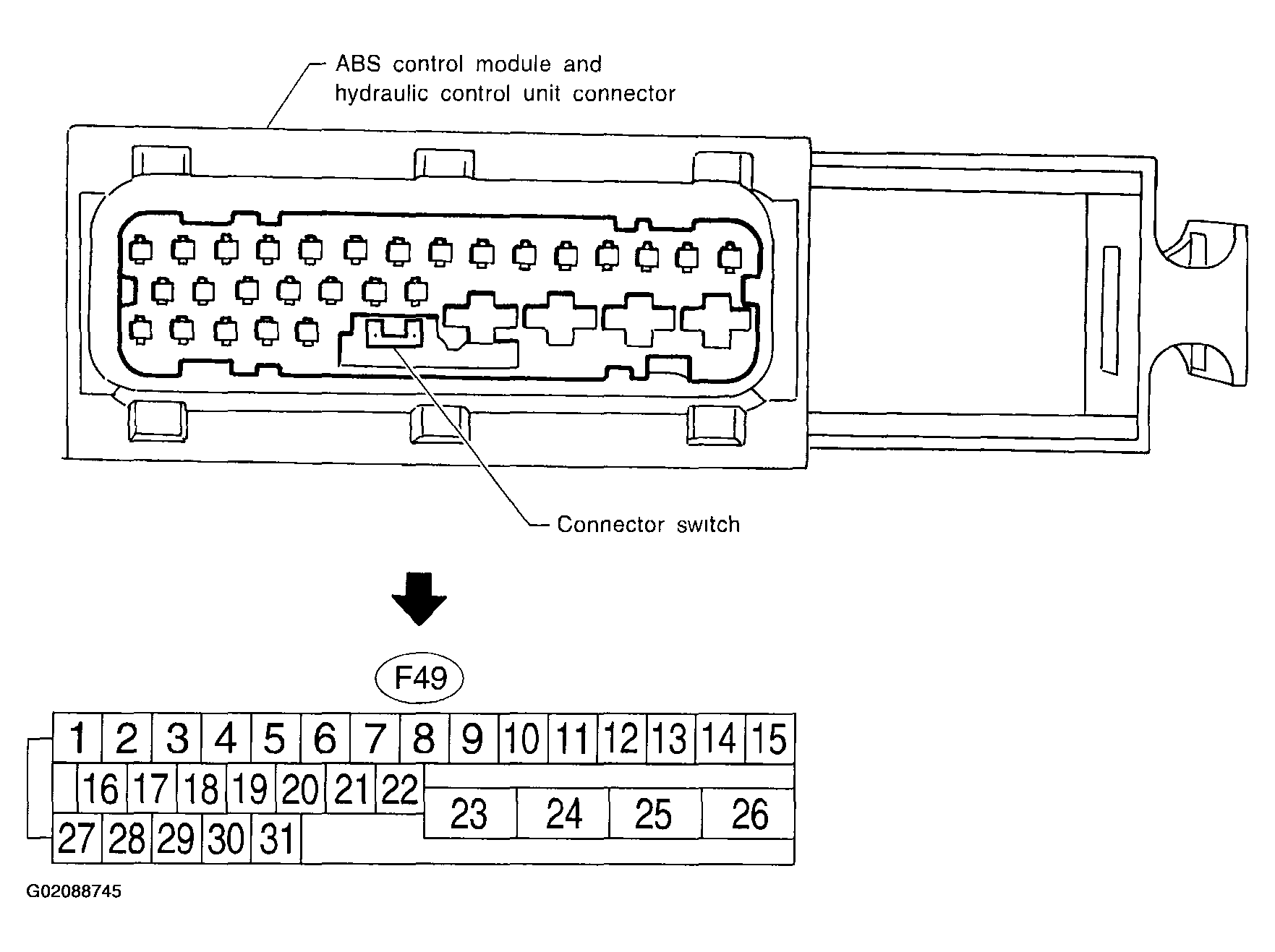

Fig 1: Electrical Specification Chart (1 Of 2)
G02088745
NOTE:
  • The terminal numbers in the ABS control module and hydraulic control unit connector are as shown in the figure.
  • When the connector is removed from the ABSCM&H/U, the connector switch closes the circuit between terminal No. 21 and No. 23. The ABS warning light illuminates.

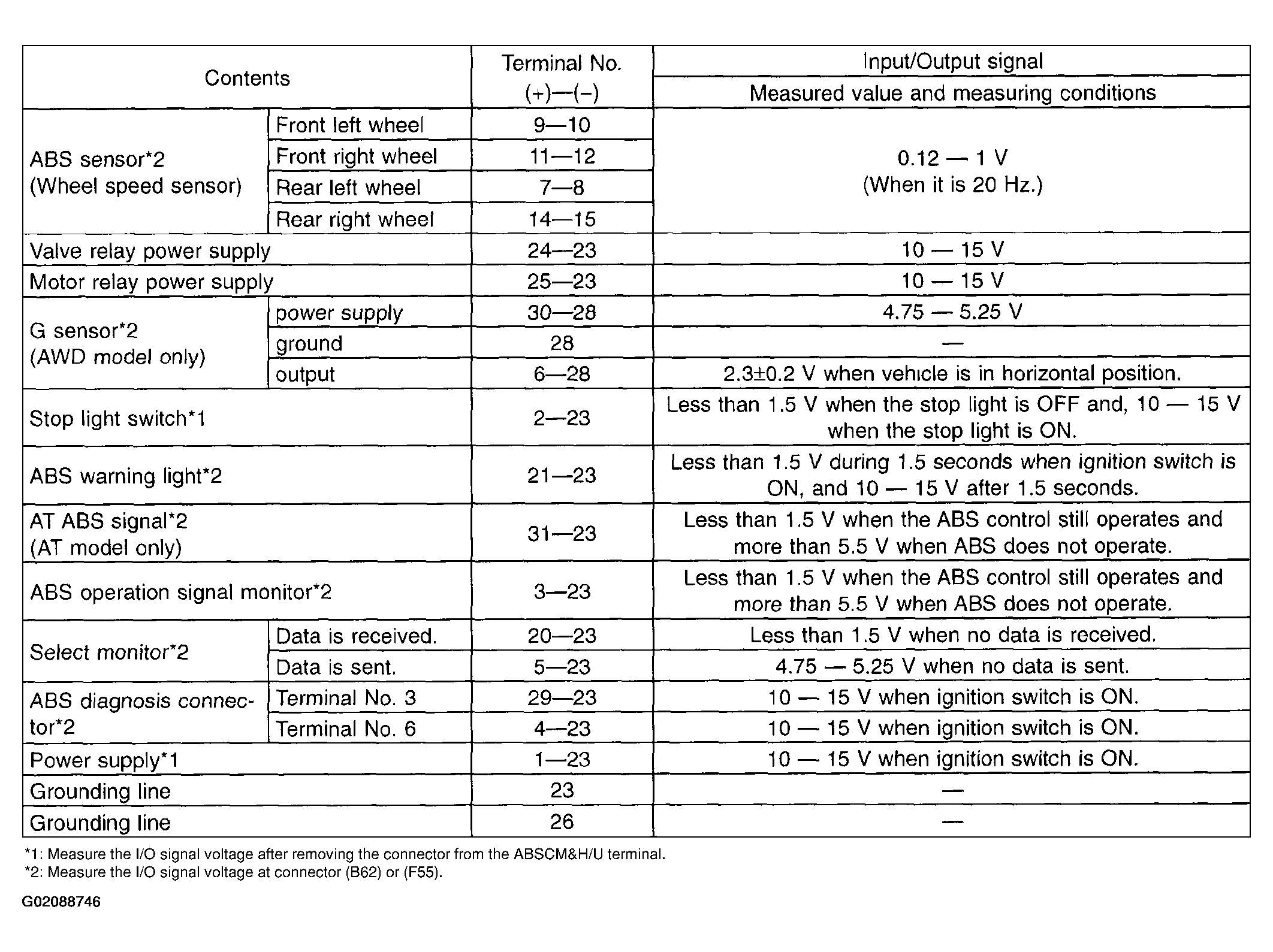

Fig 2: Electrical Specification Chart (2 Of 2)
G02088746
