Electrical Specification

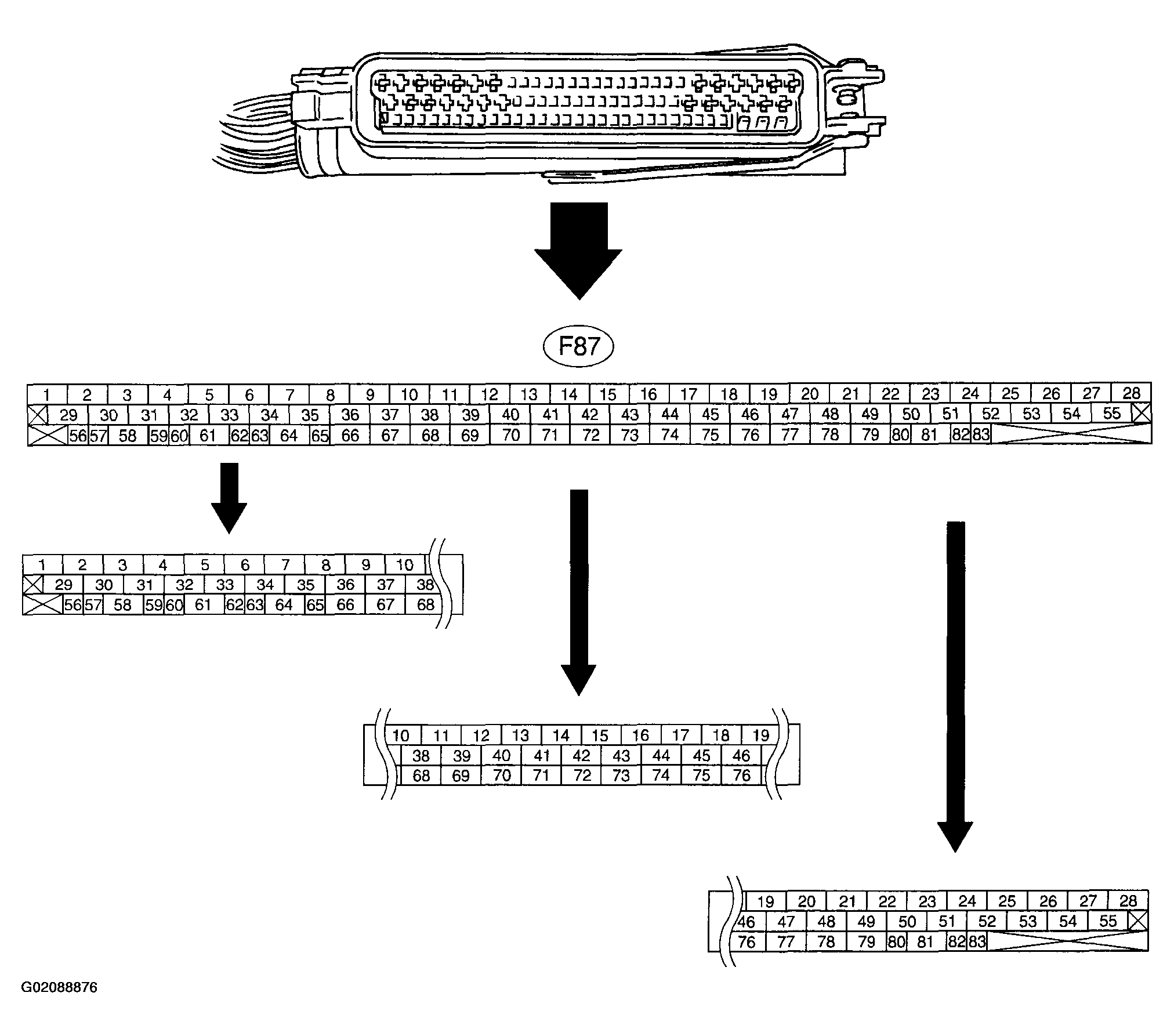

Fig 1: Identifying Control Module Harness Connectors
G02088876
NOTE:
  • The terminal numbers in the VDC control module connector are as shown in the figure.
  • When the connector is removed from the VDCCM, the connector switch closes the circuit between terminal No. 53, No. 54 and No. 55. The ABS and VDC warning light illuminate.

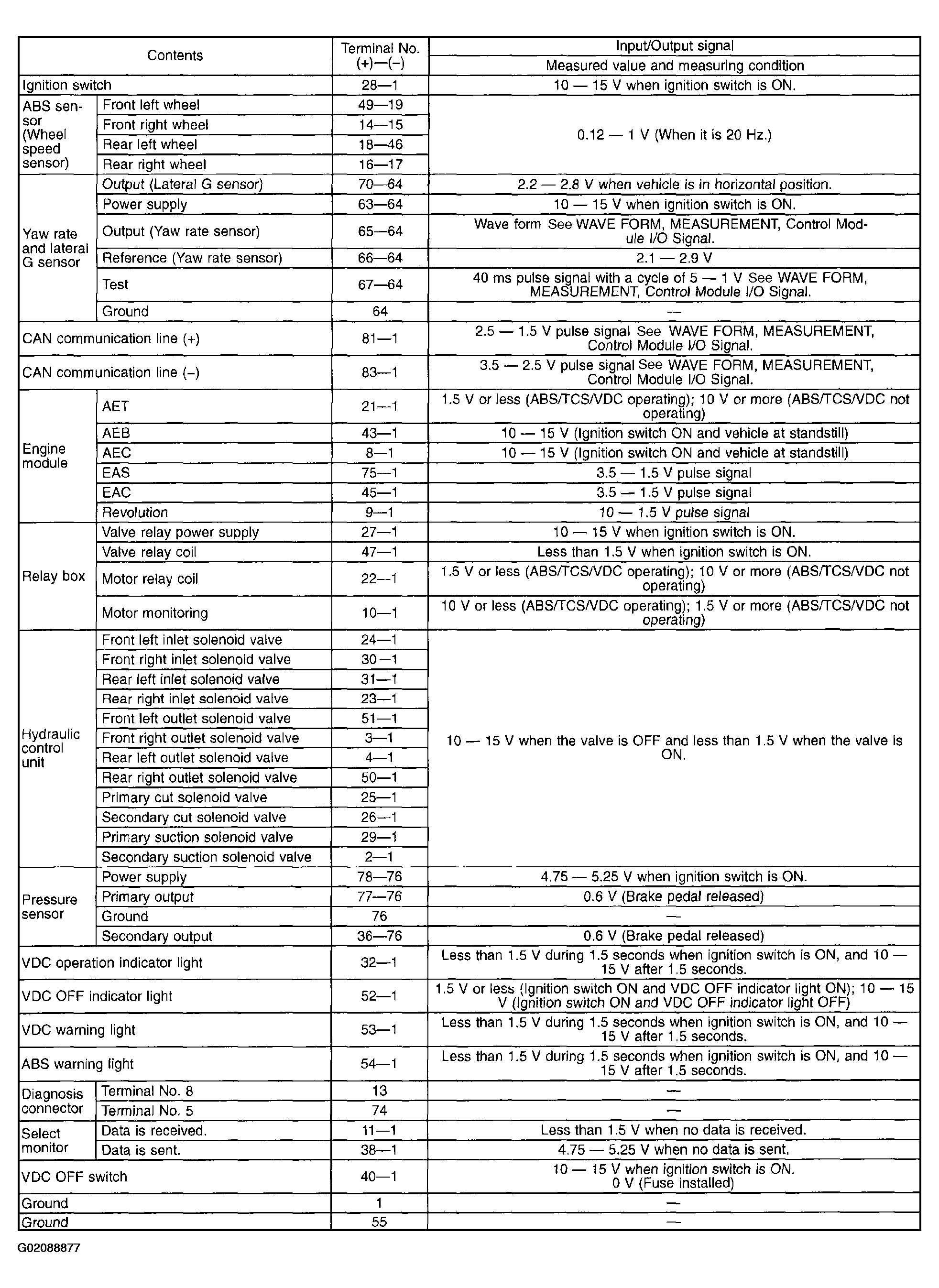

Fig 2: Control Module I/O Signal Chart
G02088877
