ABS Control Module and Hydraulic Control Unit (ABSCM&H/U): Installation

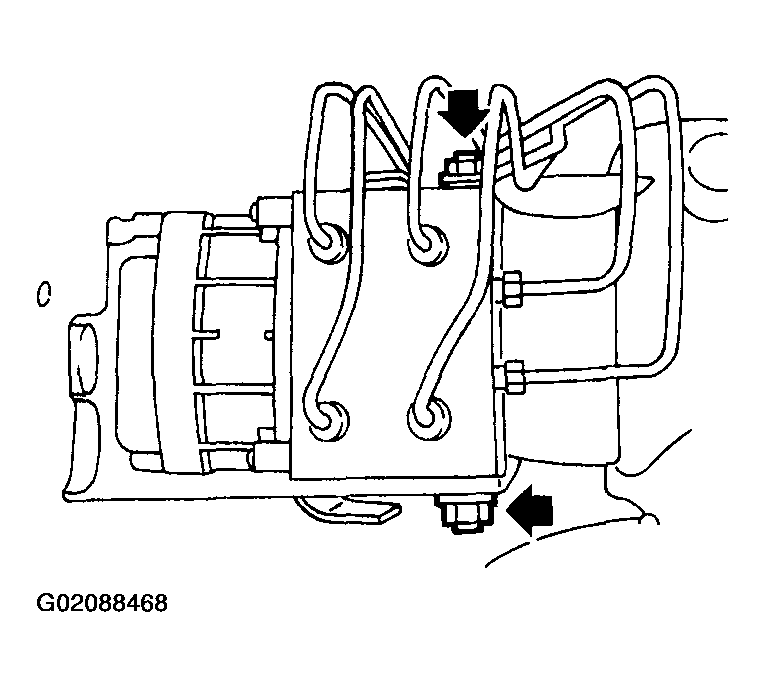

- Install ABSCM&H/U.CAUTION: Confirm that the specifications of the ABSCM&H/U conforms to the vehicle specifications.
Tightening torque:
- 18 N.m (1.8 kgf-m, 13.0 ft-lb)
- Install ABSCM&H/U ground terminal to bracket.
Tightening torque:
- 32 N.m (3.3 kgf-m, 24 ft-lb)
- Connect brake pipes to their correct ABSCM&H/U connections.
Tightening torque:
- 15 N.m (1.5 kgf-m, 10.8 ft-lb)
- Using cable clip, secure ABSCM&H/U harness to bracket.
- Connect connector to ABSCM&H/U.CAUTION:
- Be sure to remove all foreign matter from inside the connector before connecting.
- Ensure that the ABSCM&H/U connector is securely locked.
- Install air intake duct.
- Connect ground cable to battery.
- Bleed air from the brake system.
