Abs Sequence Control With Diagnosis Connector

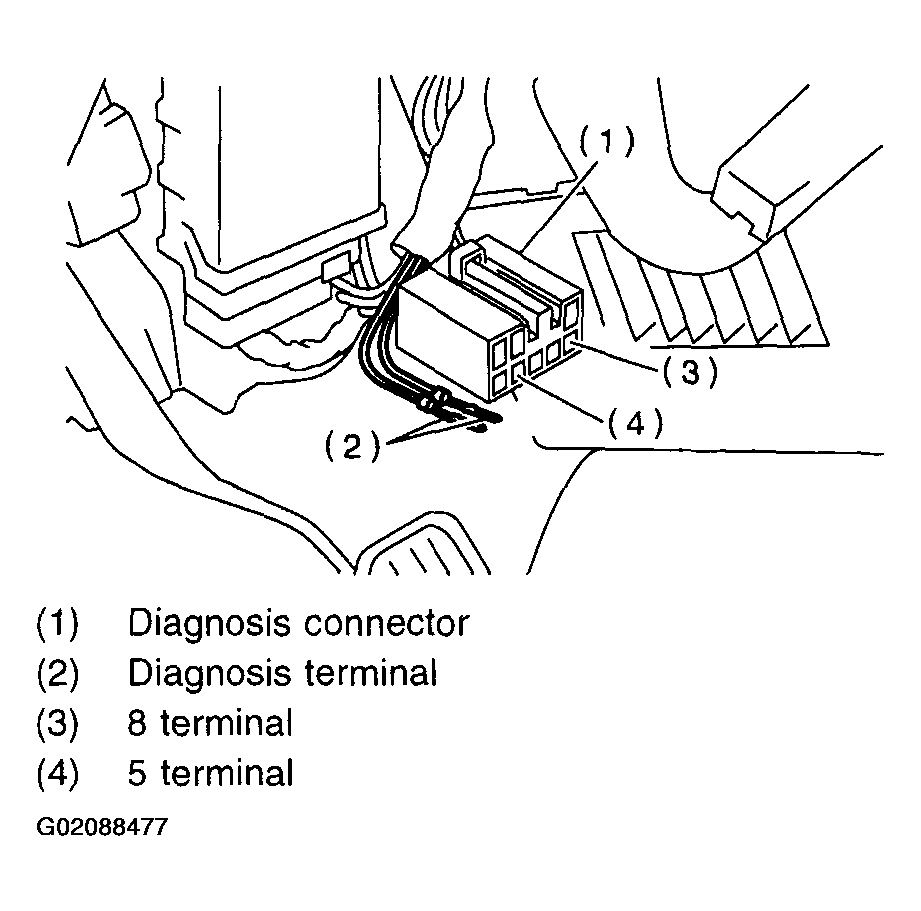

- Connect diagnosis terminals to terminals No. 5 and No. 8 of the diagnosis connector beside driver's seat heater unit.
- Set the speed of all wheels at 2.75 km/h (2 MPH) or less.
- Turn ignition switch OFF.
- Within 0.5 seconds after the ABS warning light goes out, depress the brake pedal and hold it immediately after ignition switch is turned to ON.CAUTION: Do not depress the clutch pedal.NOTE:
- When the ignition switch is set to on, the brake pedal must not be depressed.
- Engine must not operate.
- After completion of ABS sequence control, turn ignition switch OFF.
