G Sensor: Installation

  1. Install in the reverse order of removal.
    NOTE: Do not install G sensor in the wrong direction. There is an arrow mark on the sensor showing which side faces the vehicle front.

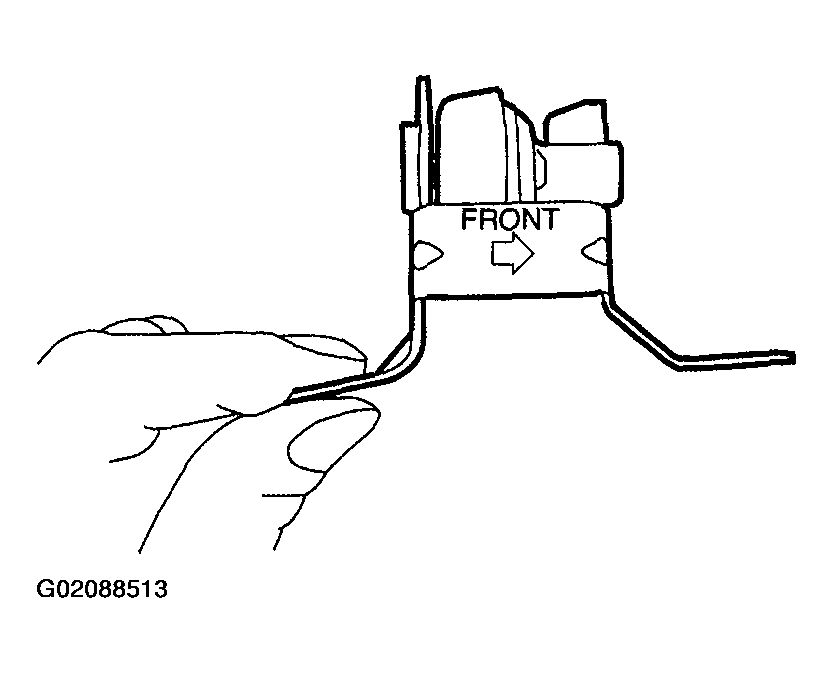

    Fig 1: Installing & Identifying G Sensor Direction
    G02088513
