Abs Control Module And Hydraulic Control Unit (ABSCM&H/U)

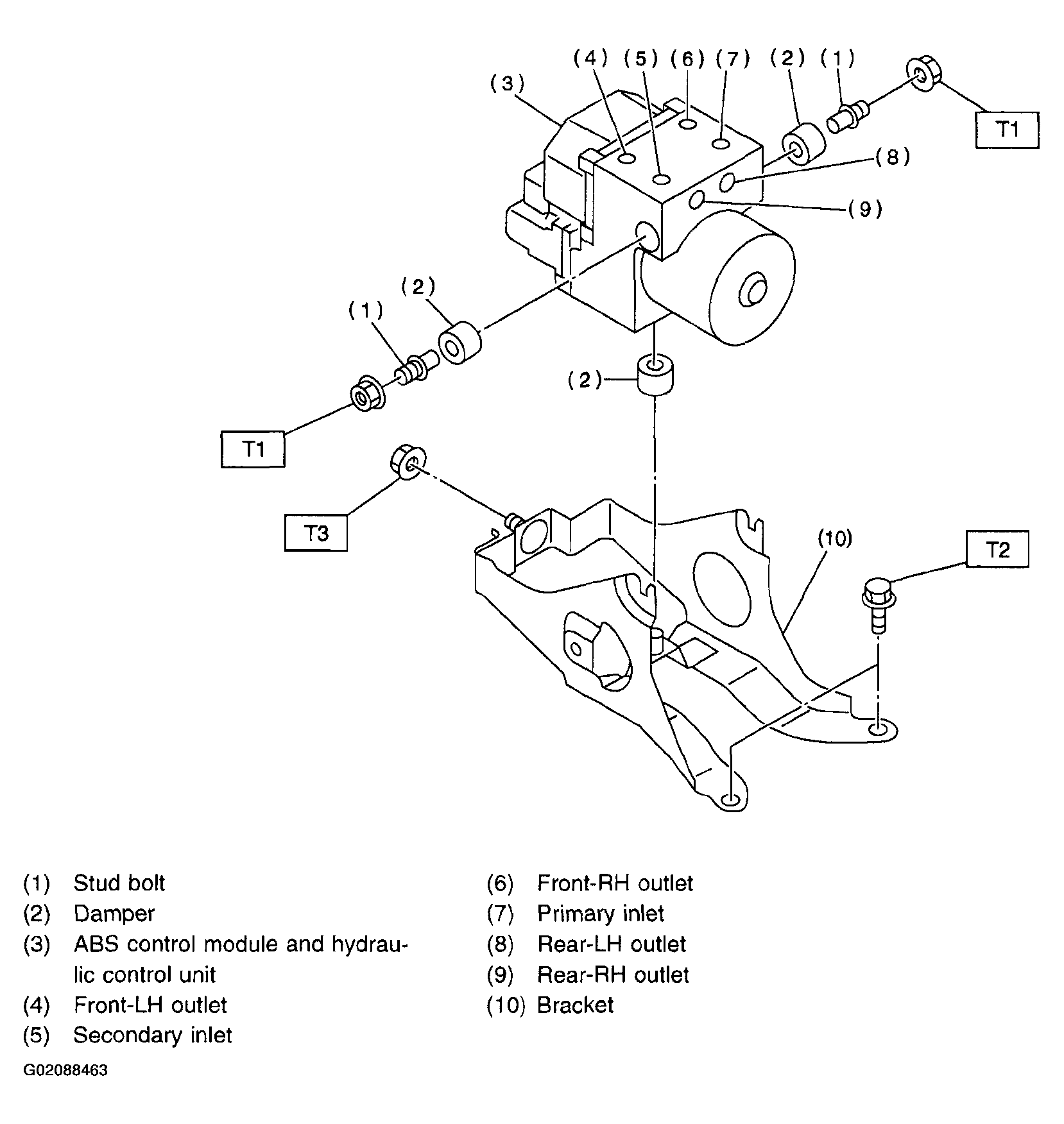

Fig 1: Exploded View Of ABS Control Module & Hydraulic Control Unit

Tightening torque: N.m (kgf-m, ft-lb)

1. T1: 18 (1.8, 13.06)
2. 12: 32 (3.3, 24)
3. T3: 38 (3.8, 28)
