Rear ABS Sensor: Removal

Disconnect battery ground cable.
Lift-up the vehicle.
Remove fuel tank cover.

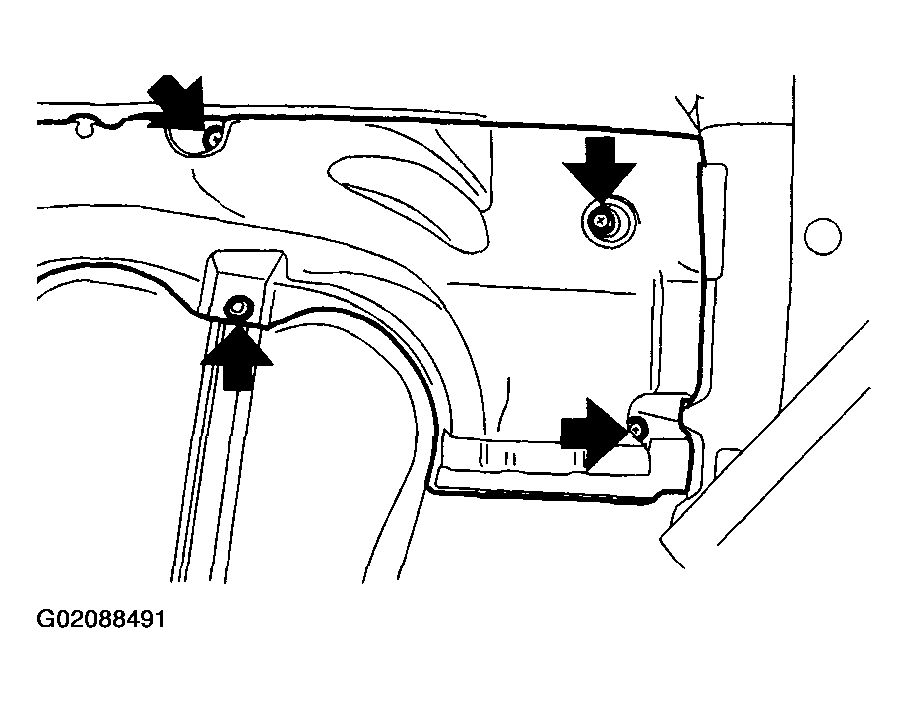

Fig 1: Removing Fuel Tank Cover
Disconnect rear ABS sensor connector.

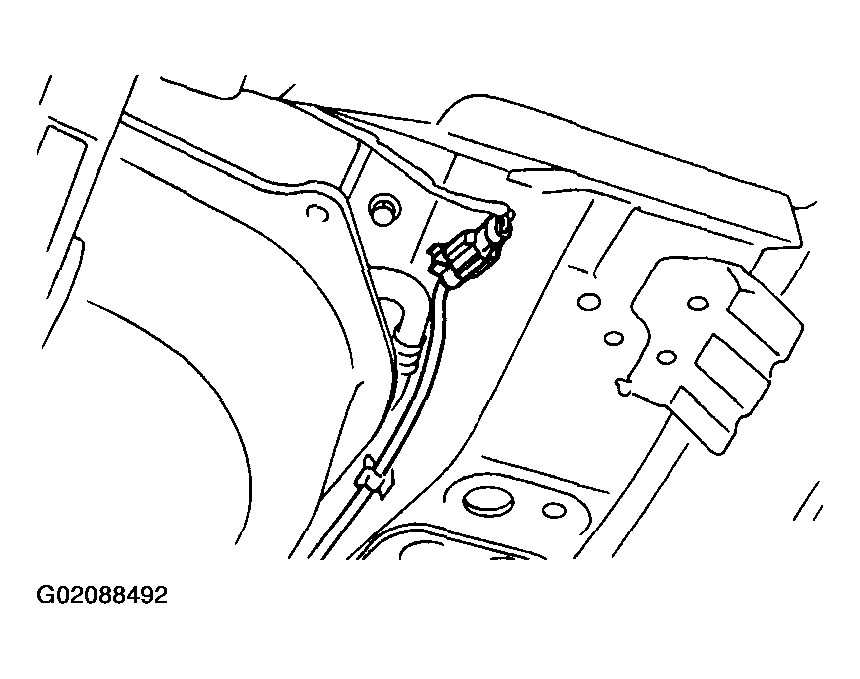

Fig 2: Disconnecting Rear ABS Sensor Connector
Remove rear sensor harness from clip on body side.

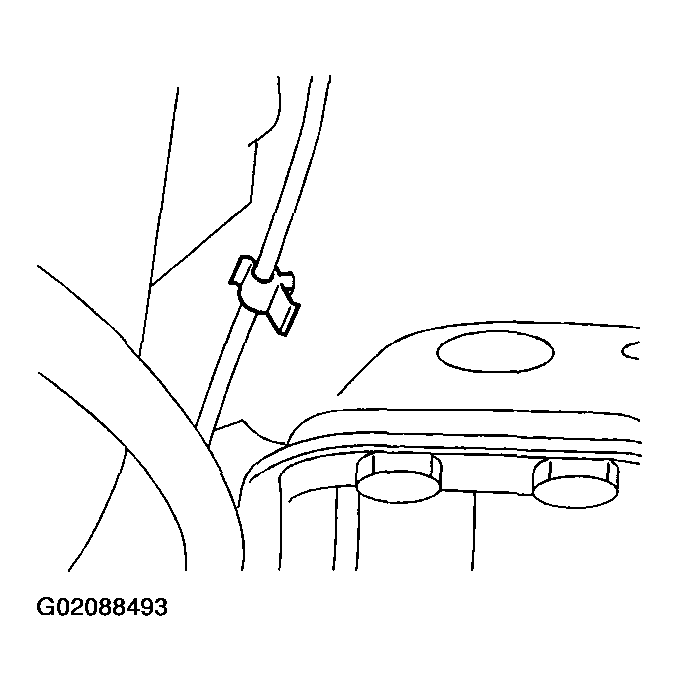

Fig 3: Removing Rear Sensor Harness From Clip
Remove bolts which hold rear sensor harness brackets.

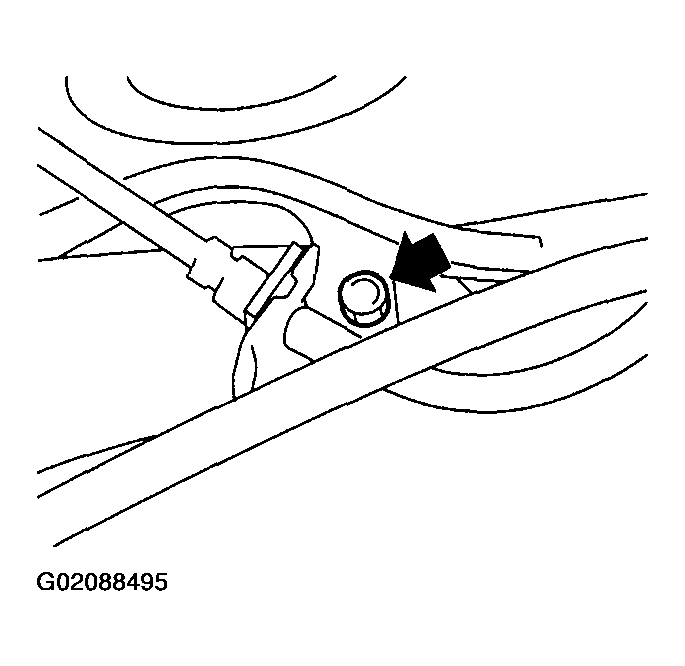

Fig 4: Removing Rear Sensor Harness Brackets Bolts

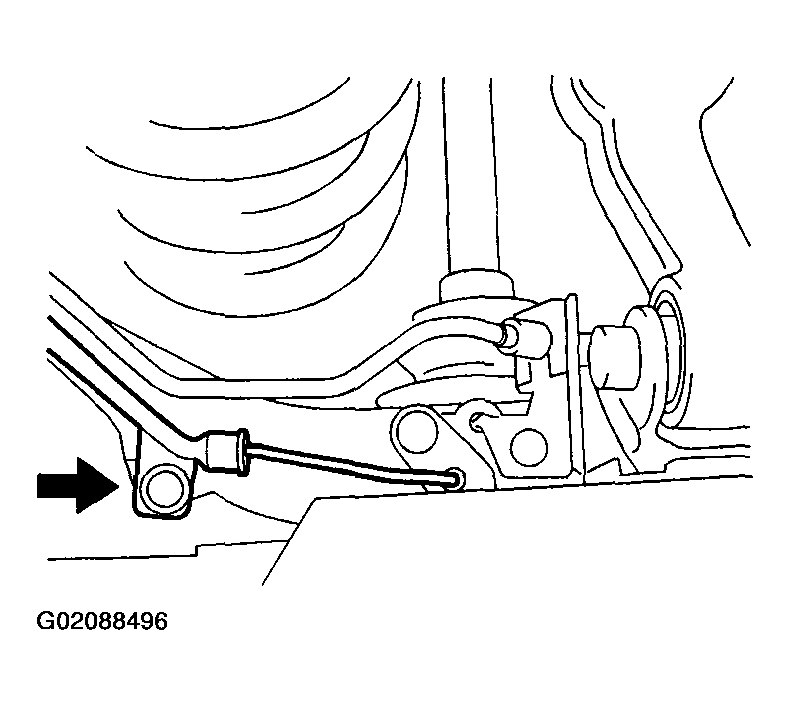

Fig 5: Removing Rear Sensor Harness Brackets Bolts

Fig 6: Removing Rear Sensor Harness Brackets Bolts
Remove rear ABS sensor from rear arm.
With disc brake model:

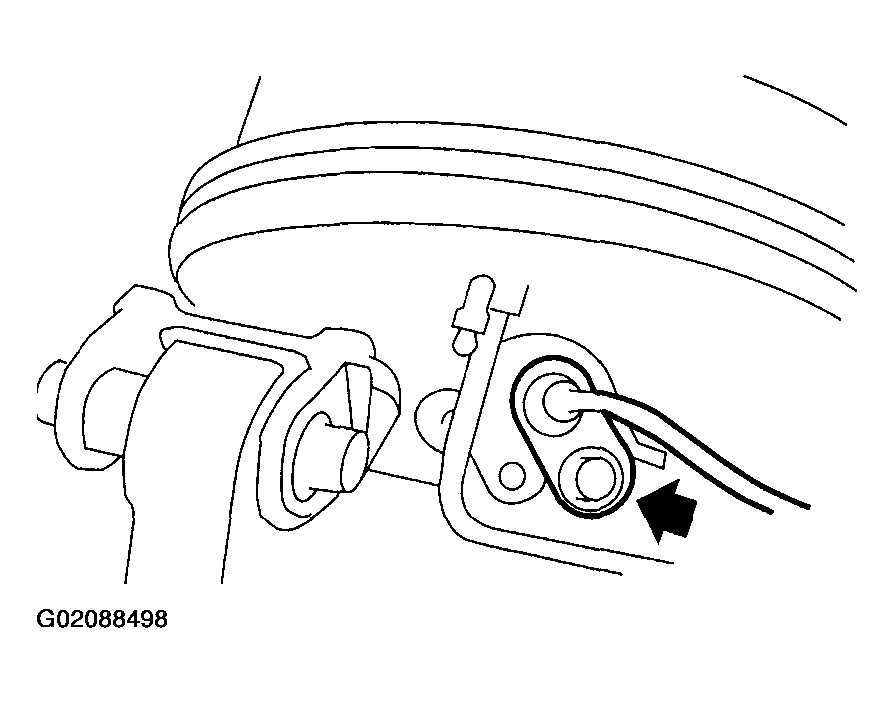

Fig 7: Removing Rear ABS Sensor From Rear Arm

With drum brake model:

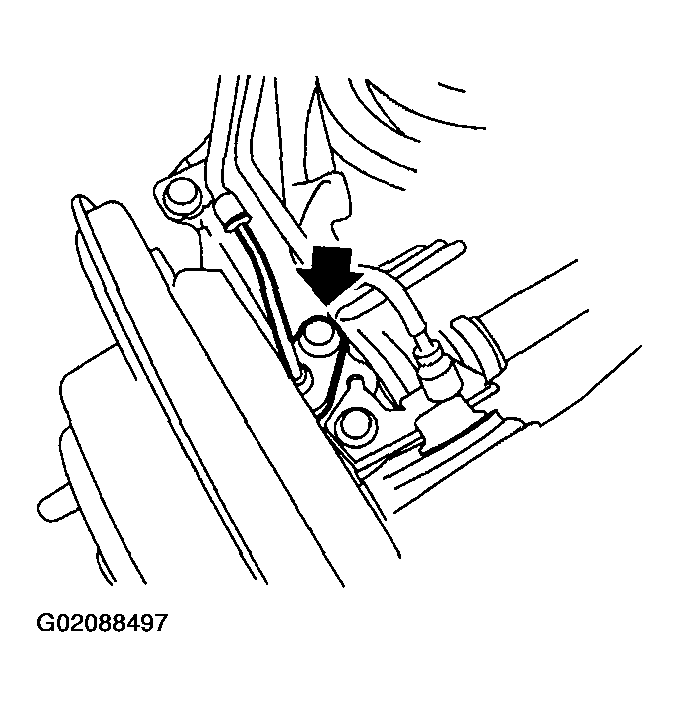

Fig 8: Removing Rear ABS Sensor From Rear Arm
When inspecting rear tone wheel, remove rear drive shaft as rear tone wheel is unitized with BJ assembly of rear drive shaft. See AXLE SHAFTS - REAR .
CAUTION:
- Be careful not to damage pole piece located at tip of the sensor and teeth faces during removal.
- Do not pull sensor harness during removal.
