With SUBARU Select Monitor

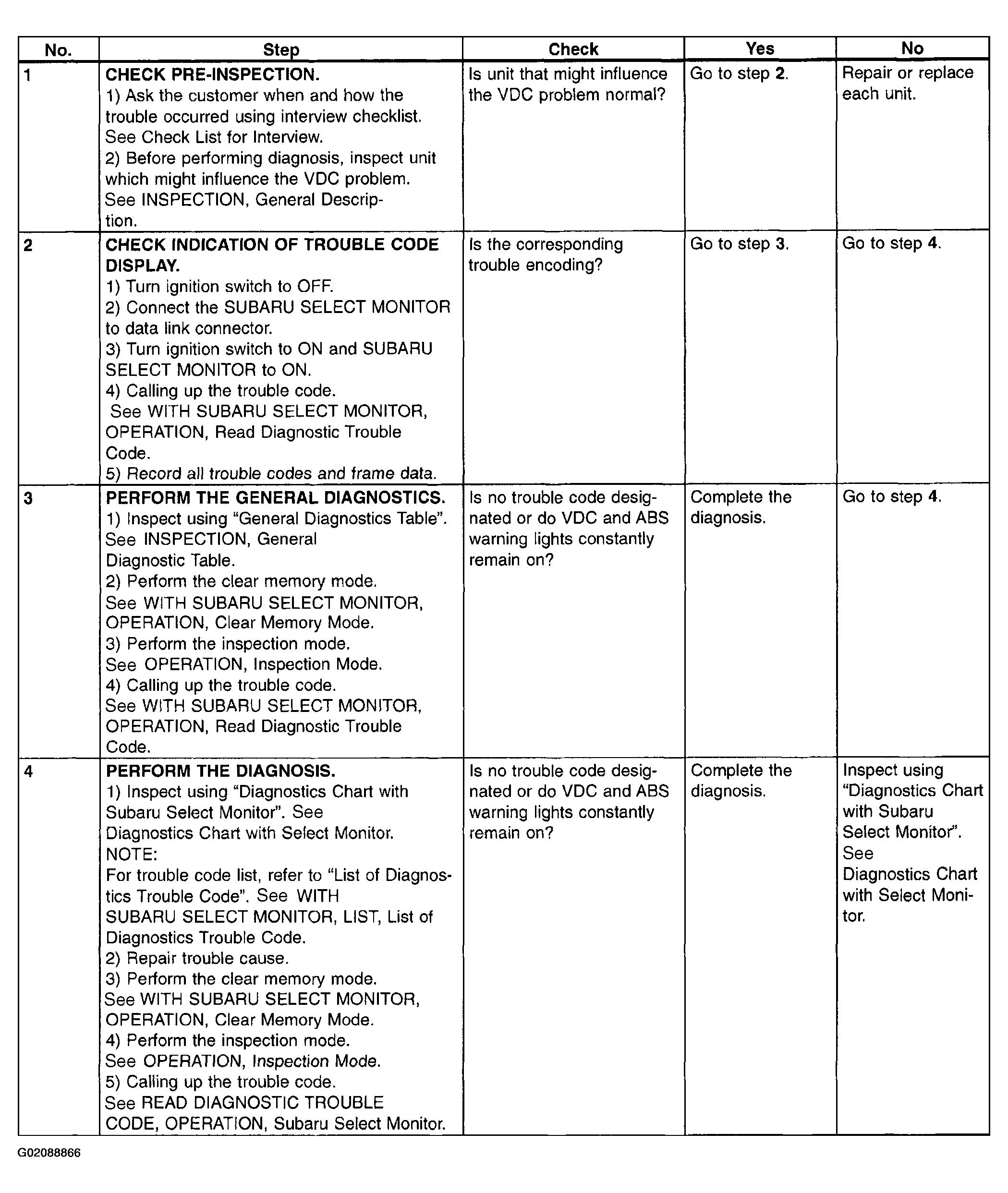

Fig 1: Basic Diagnostic Chart (With Subaru Select Monitor)
G02088866
NOTE:
  • To check harness for broken wires or short circuits, shake it while holding it or the connector.
  • Check list for interview. See Check List for Interview  .
