Without SUBARU Select Monitor

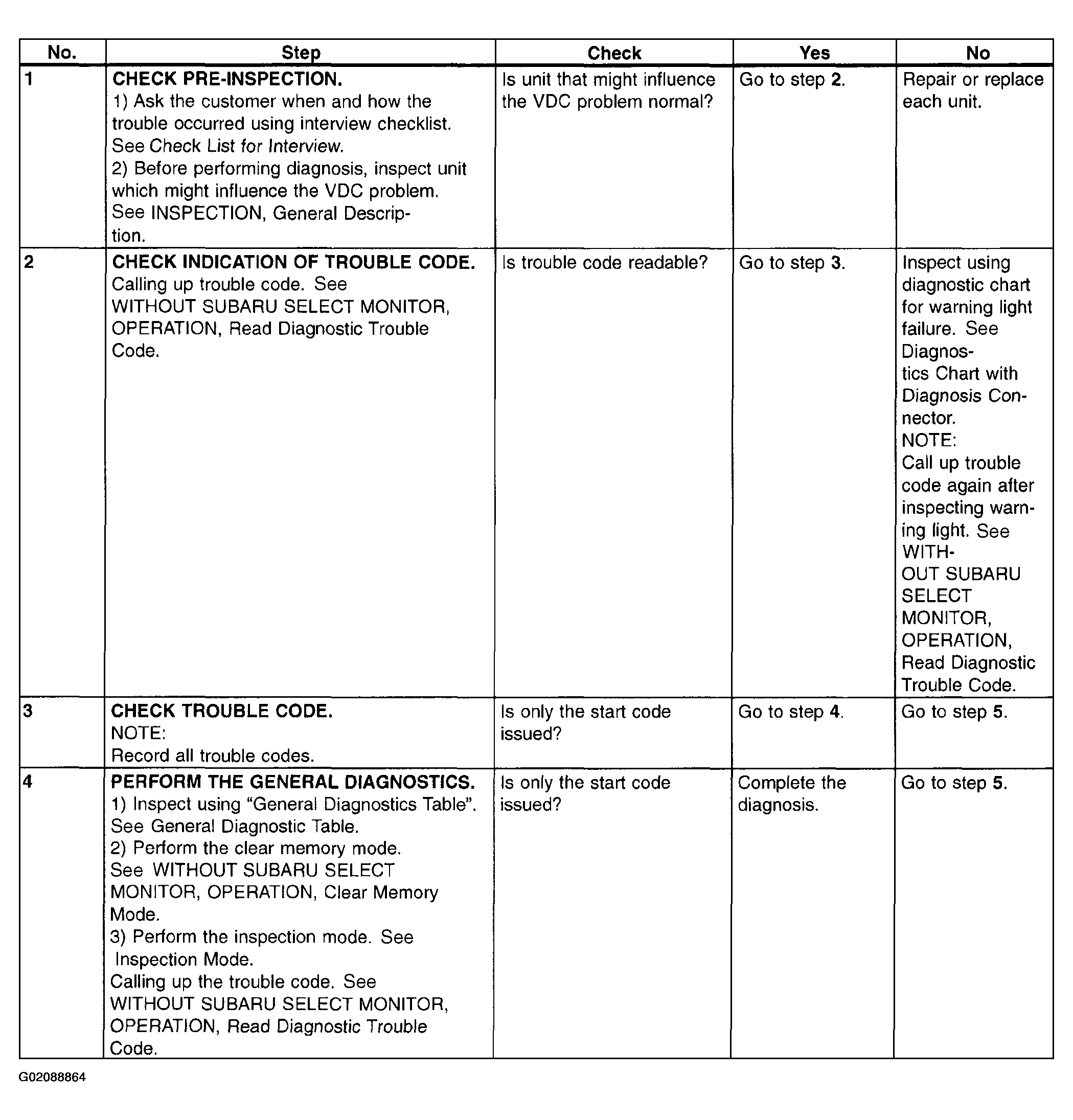

Fig 1: Basic Diagnostic Chart (Without Subaru Select Monitor) - (1 Of 2)

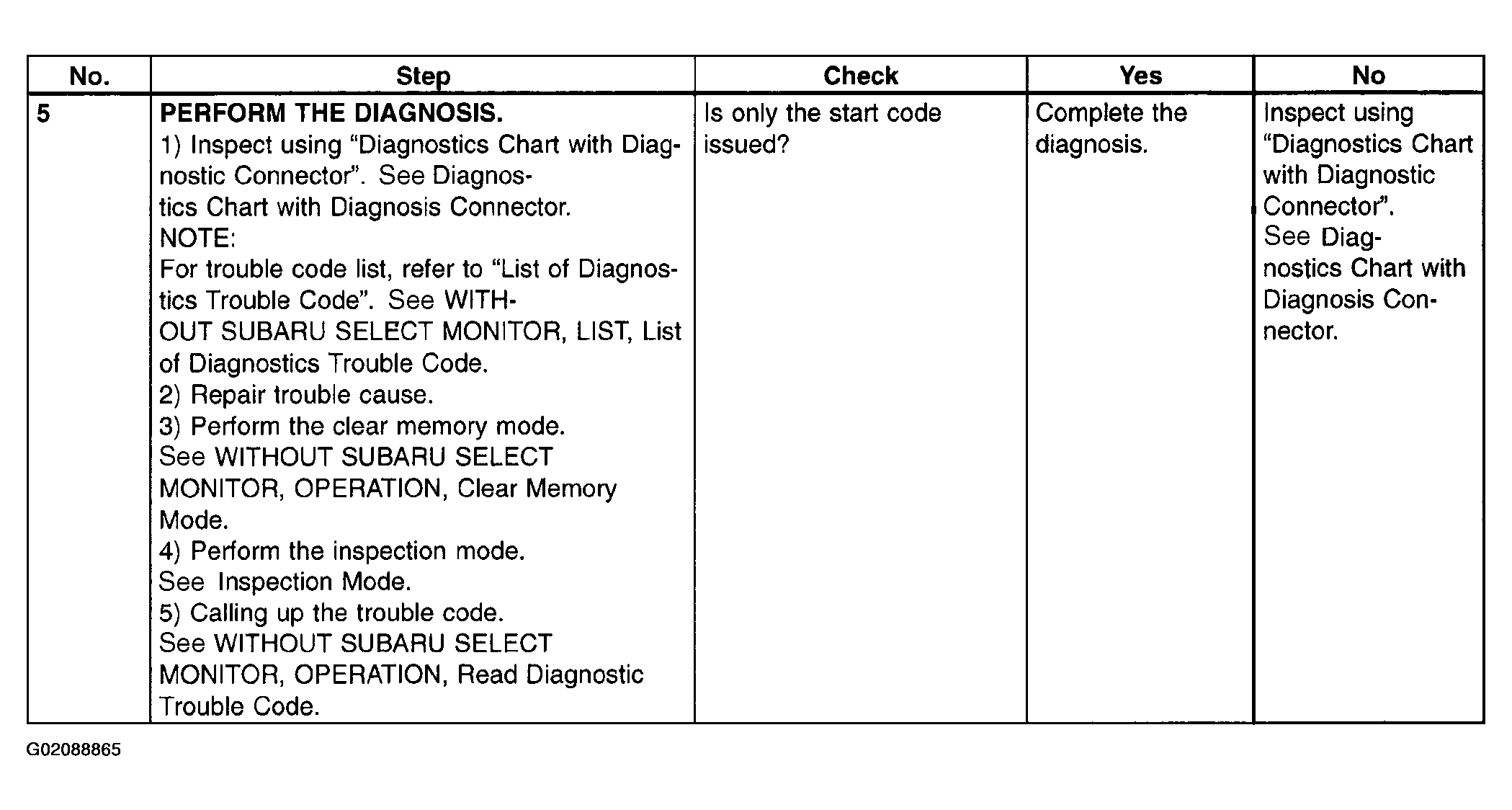

Fig 2: Basic Diagnostic Chart (Without Subaru Select Monitor) - (2 Of 2)

CAUTION: Remove foreign matter (dust, water, etc.) from the VDCCM connector during removal and installation.

NOTE:

To check harness for broken wires or short circuits, shake it while holding it or the connector.
When ABS and/or VDC warning light illuminates, read and record trouble code indicated by ABS warning light.
