Code 41: Abnormal VDC Control Module: Wiring Diagram

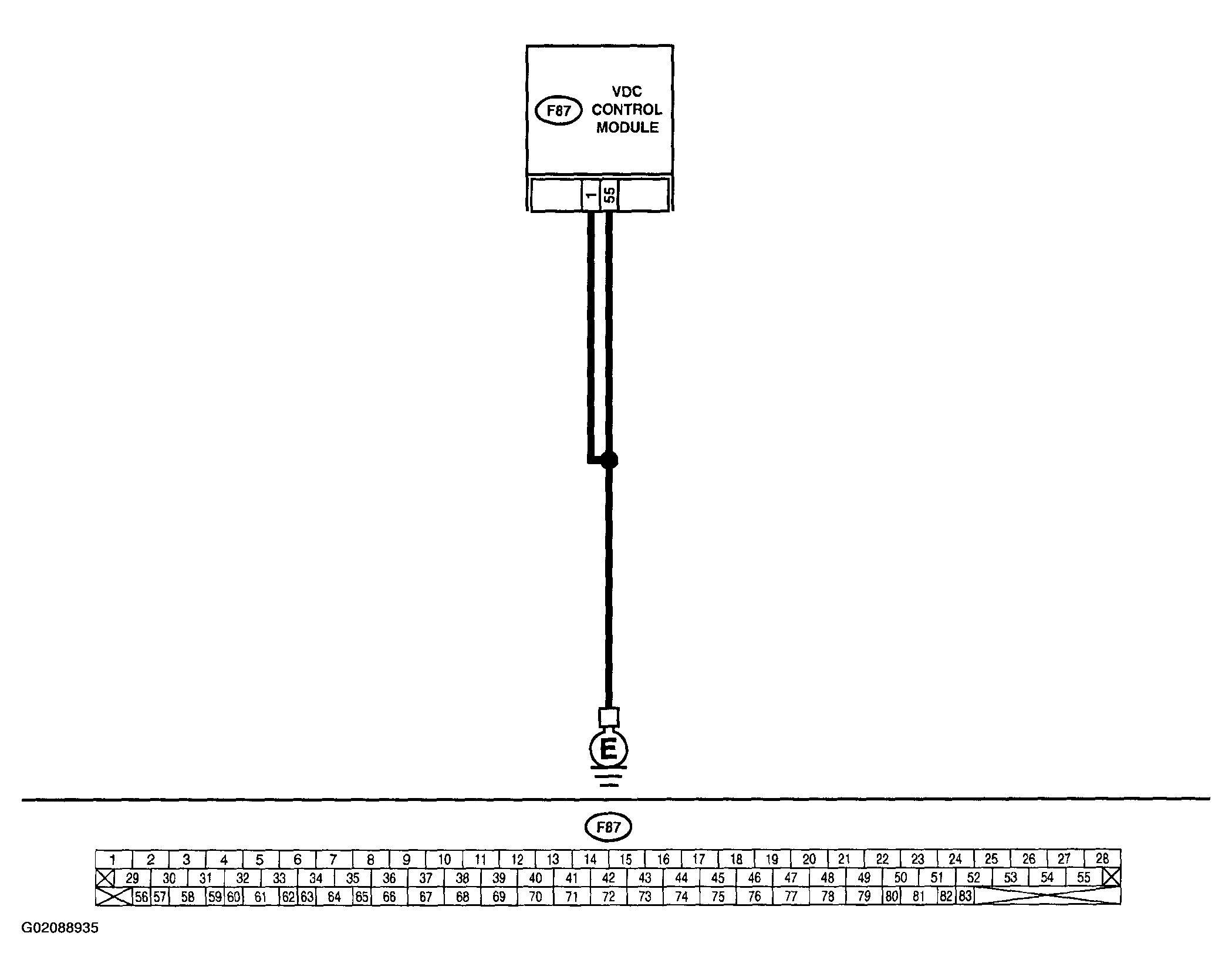

Fig 1: Wiring Diagram - Trouble Code 41 - With Diagnostic Connector

G02088935
