Diagnostic Chart

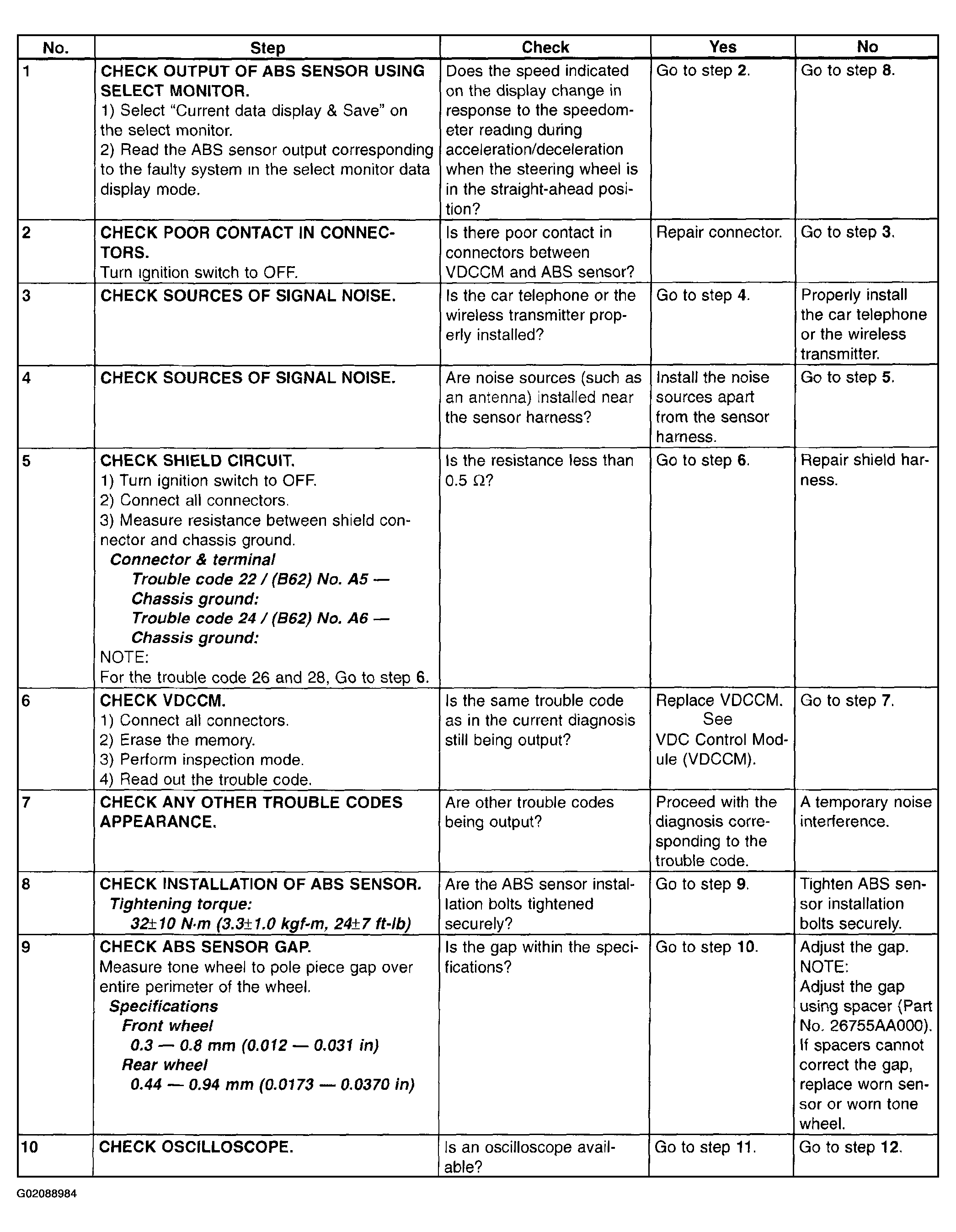

Fig 1: Diagnostic Chart - Trouble Codes 22, 24, 26 & 28 - With Select Monitor (1 Of 4)
G02088984

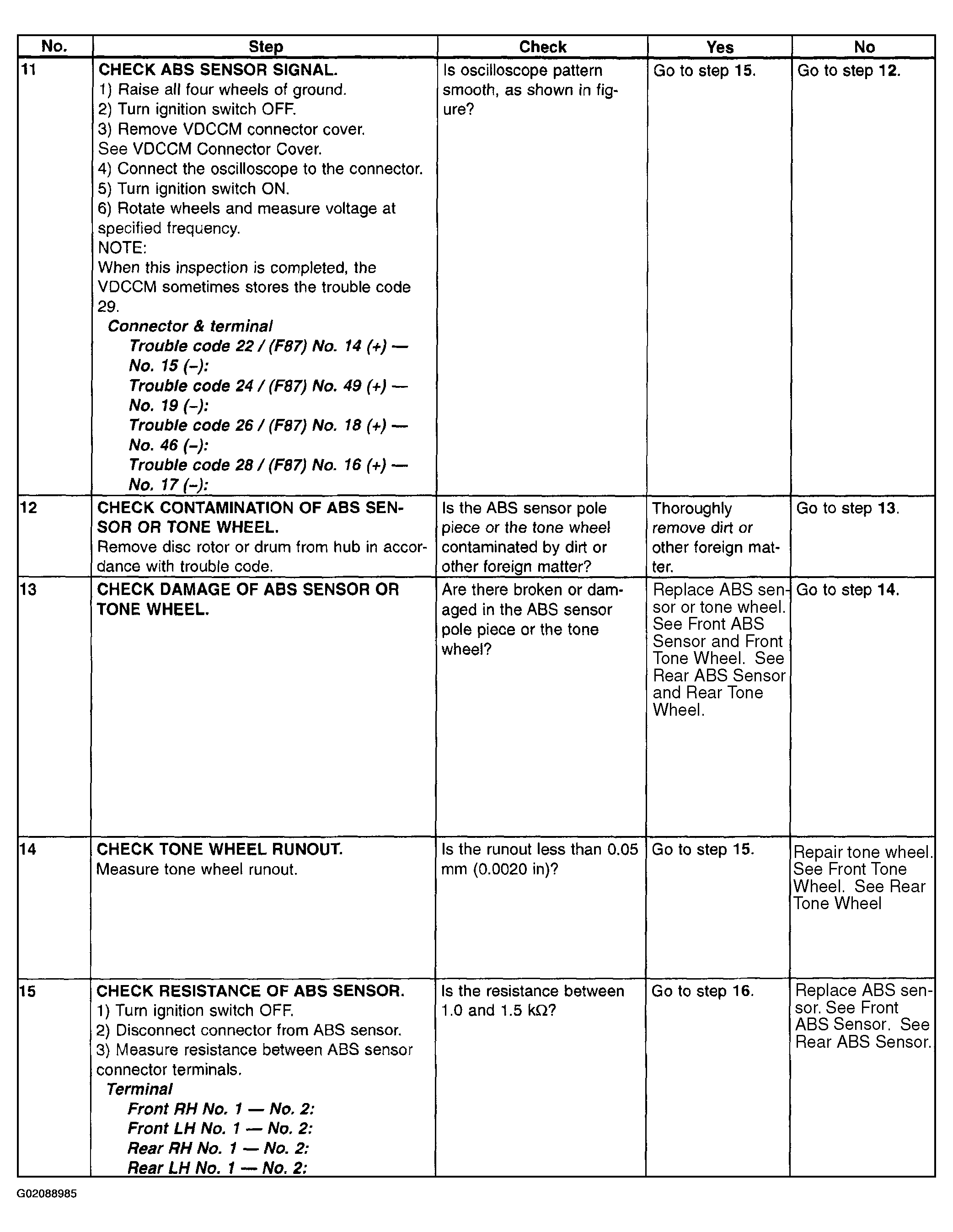

Fig 2: Diagnostic Chart - Trouble Codes 22, 24, 26 & 28 - With Select Monitor (2 Of 4)
G02088985

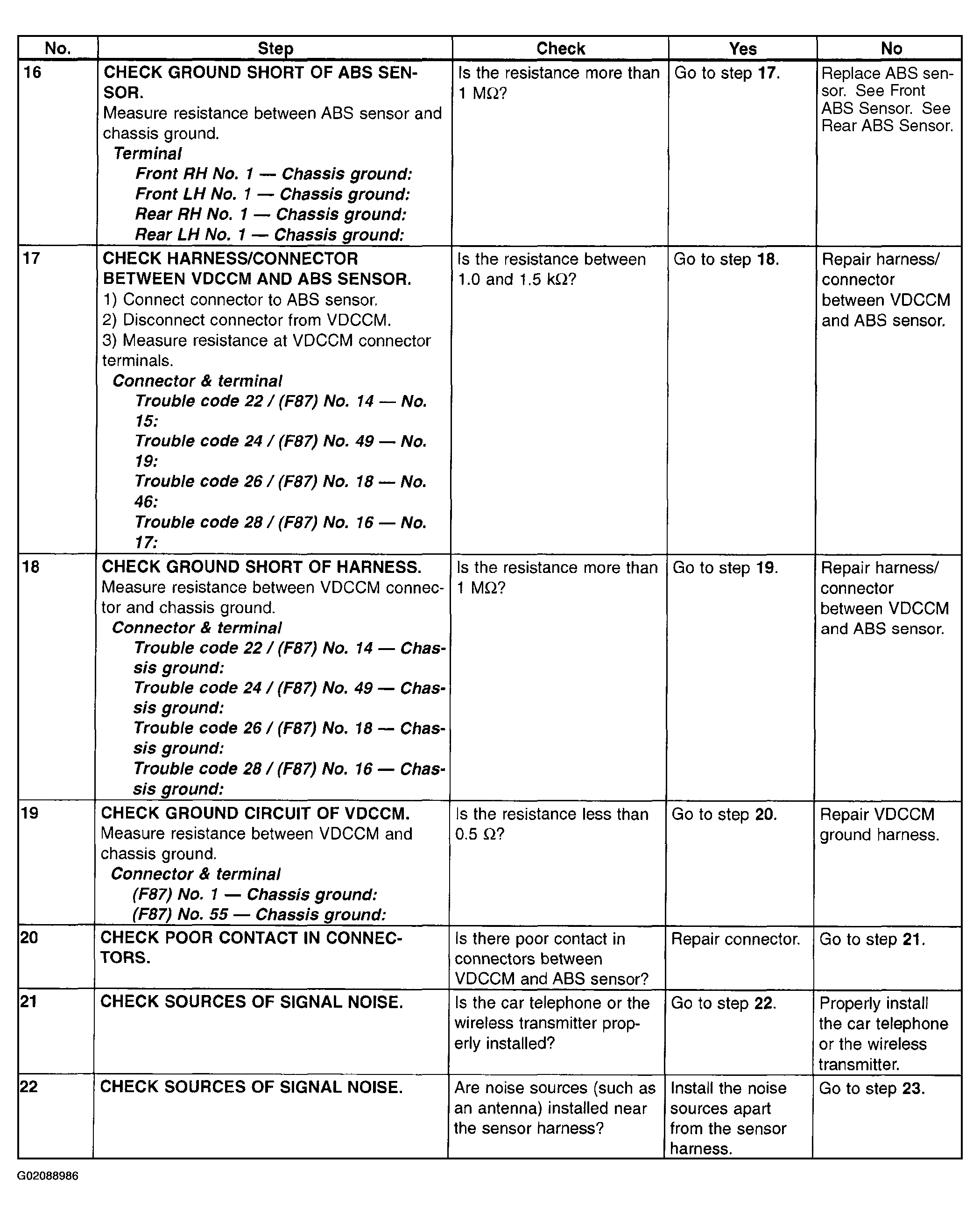

Fig 3: Diagnostic Chart - Trouble Codes 22, 24, 26 & 28 - With Select Monitor (3 Of 4)
G02088986

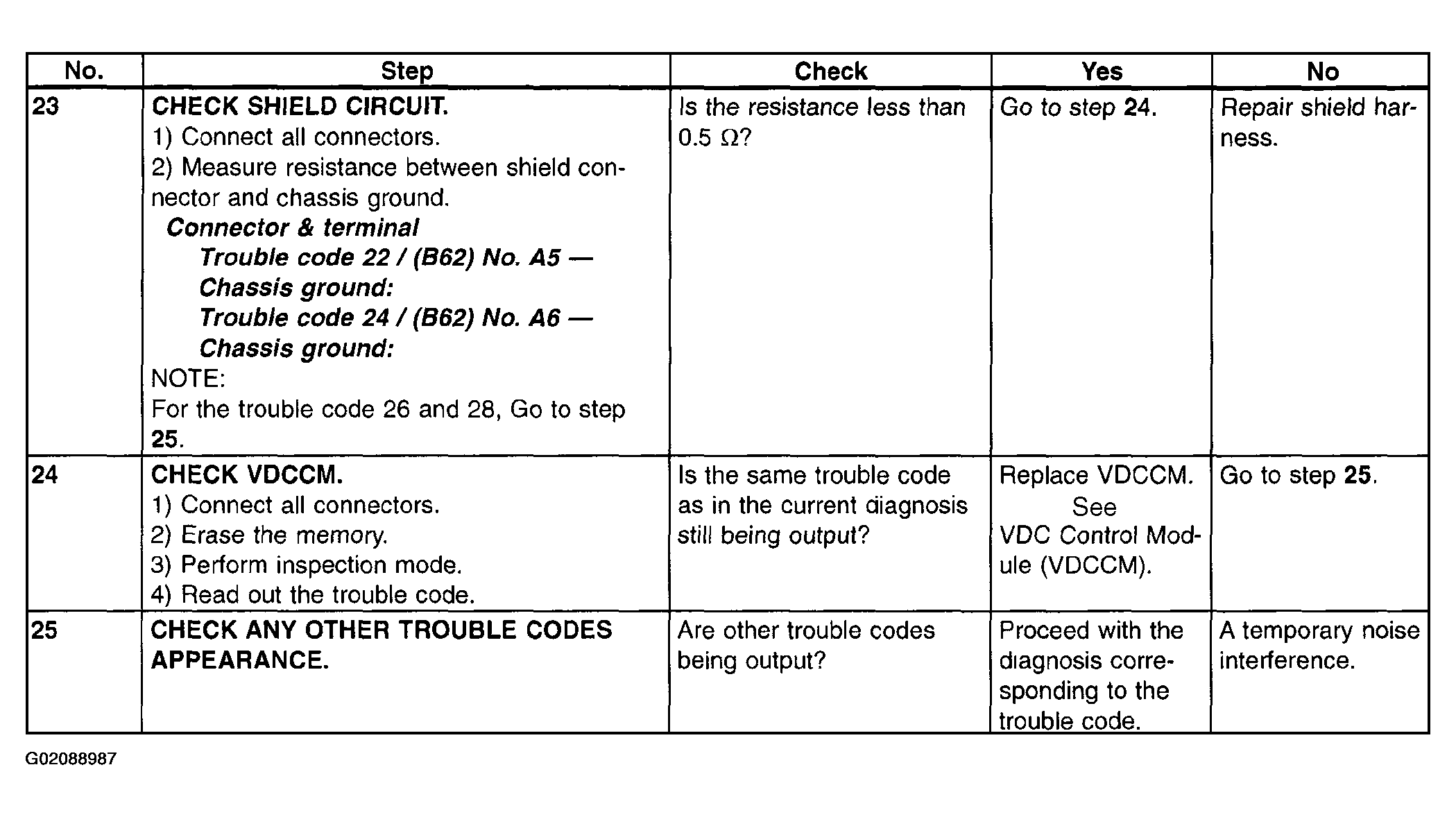

Fig 4: Diagnostic Chart - Trouble Codes 22, 24, 26 & 28 - With Select Monitor (4 Of 4)
G02088987
