Diagnostic Chart

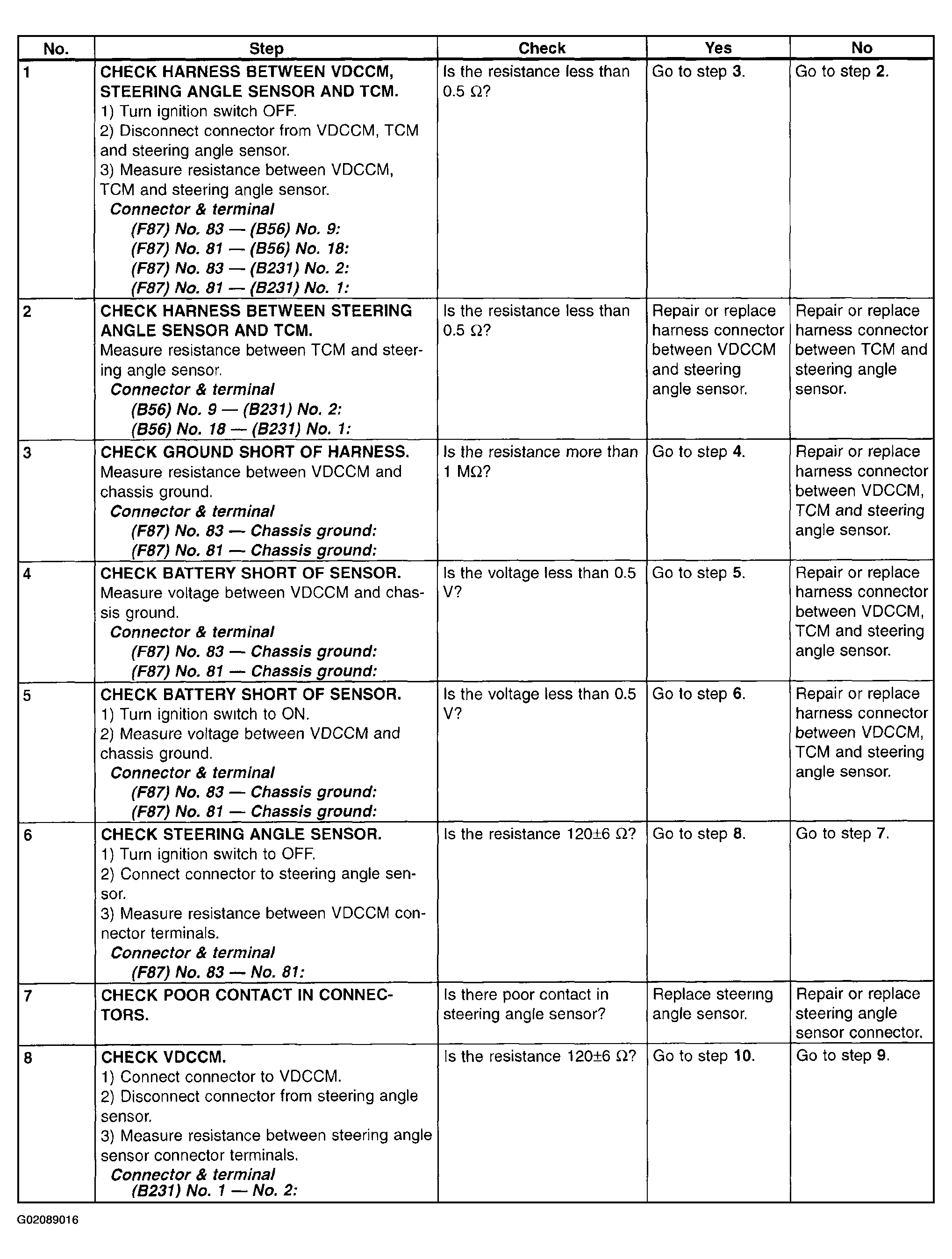

Fig 1: Diagnostic Chart - Trouble Code 47 - With Select Monitor (Improper CAN Communication) - (1 Of 2)
G02089016

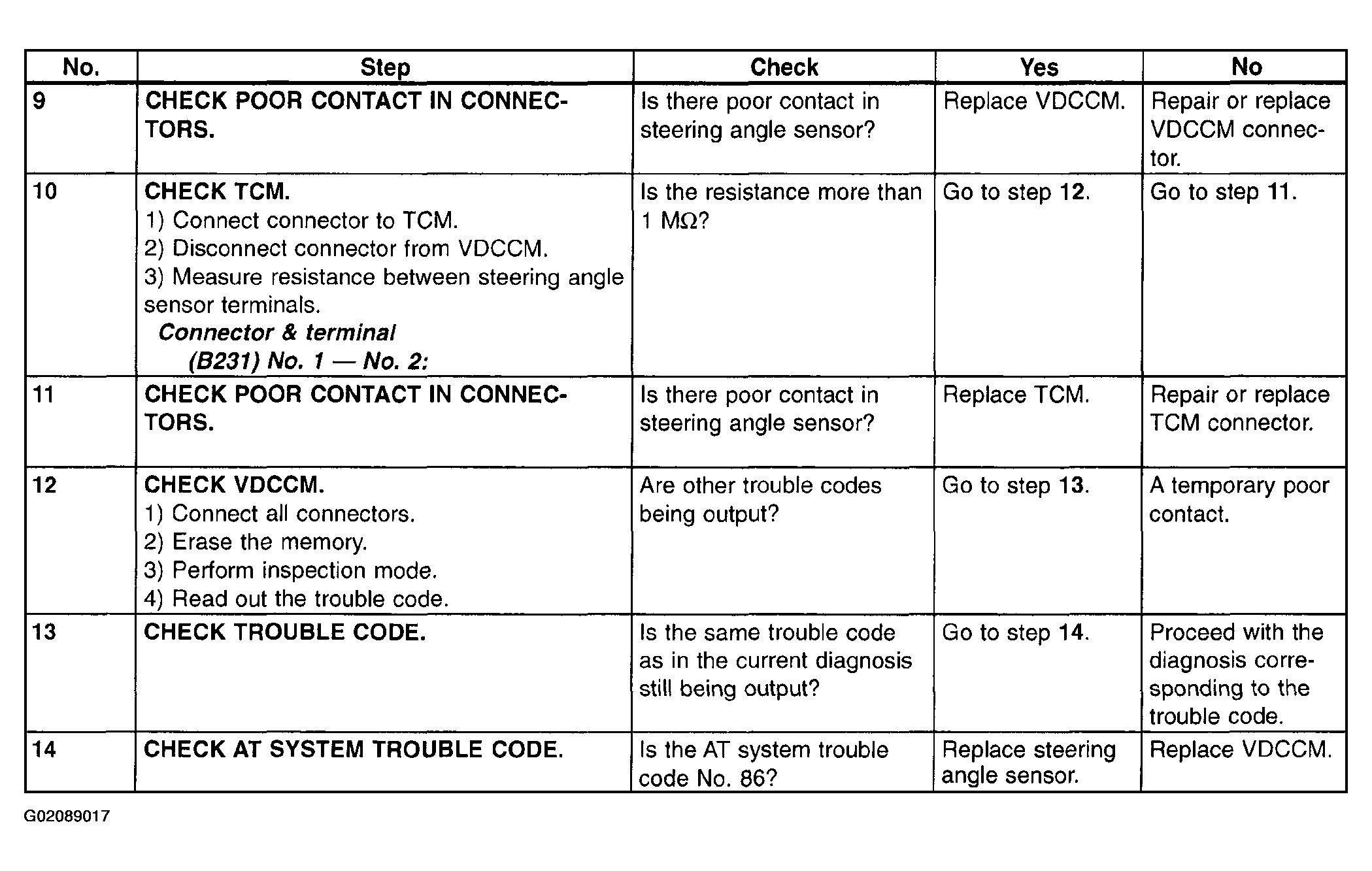

Fig 2: Diagnostic Chart - Trouble Code 47 - With Select Monitor (Improper CAN Communication) - (2 Of 2)
G02089017
