Home >> Subaru >> 2001 >> Outback Base, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Vehicle Dynamics Control (Diagnostics) >> Diagnostics Chart With Select Monitor >> Trouble Code 48 EAS Communication Line Grounding Shorted >> Diagnostic Chart

April 5, 2026: LEMON Manuals is launched! Read the announcement.

Diagnostic Chart

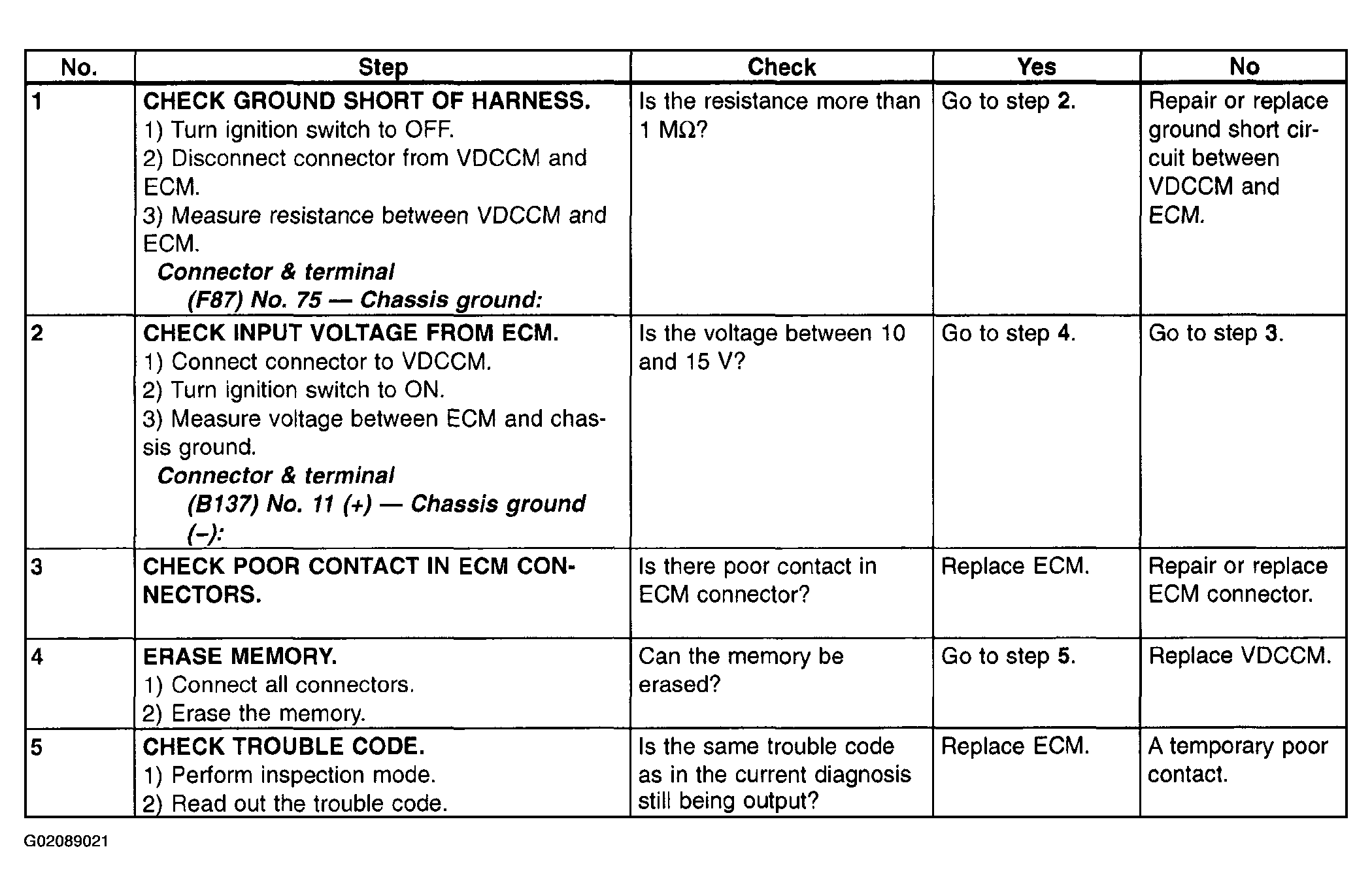

Fig 1: Diagnostic Chart - Trouble Code 48 - With Select Monitor (EAS Communication Line Grounding Shorted)

G02089021
