Diagnostic Chart

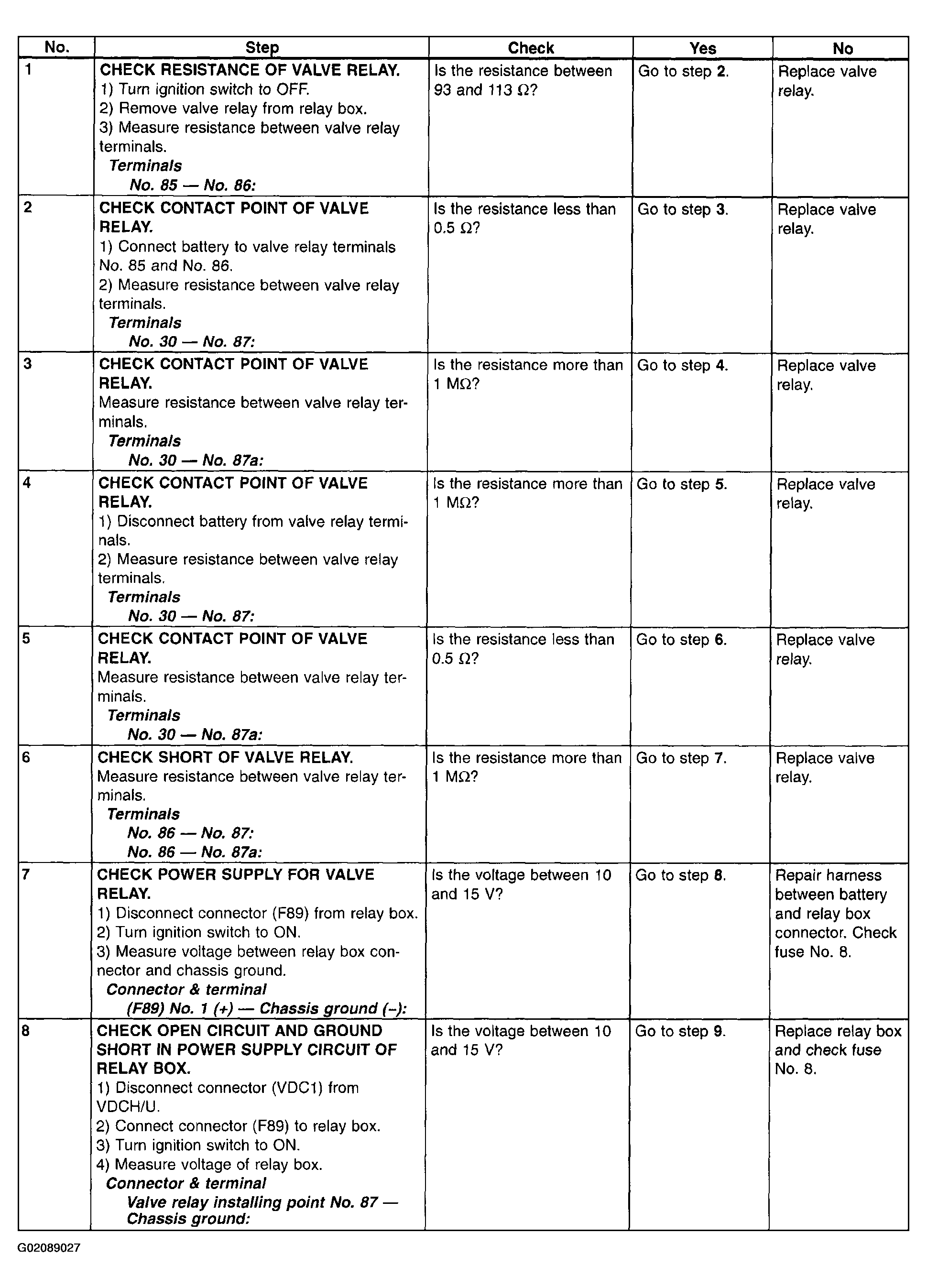

Fig 1: Diagnostic Chart - Trouble Code 51 - With Select Monitor (Valve Relay) - (1 Of 4)
G02089027

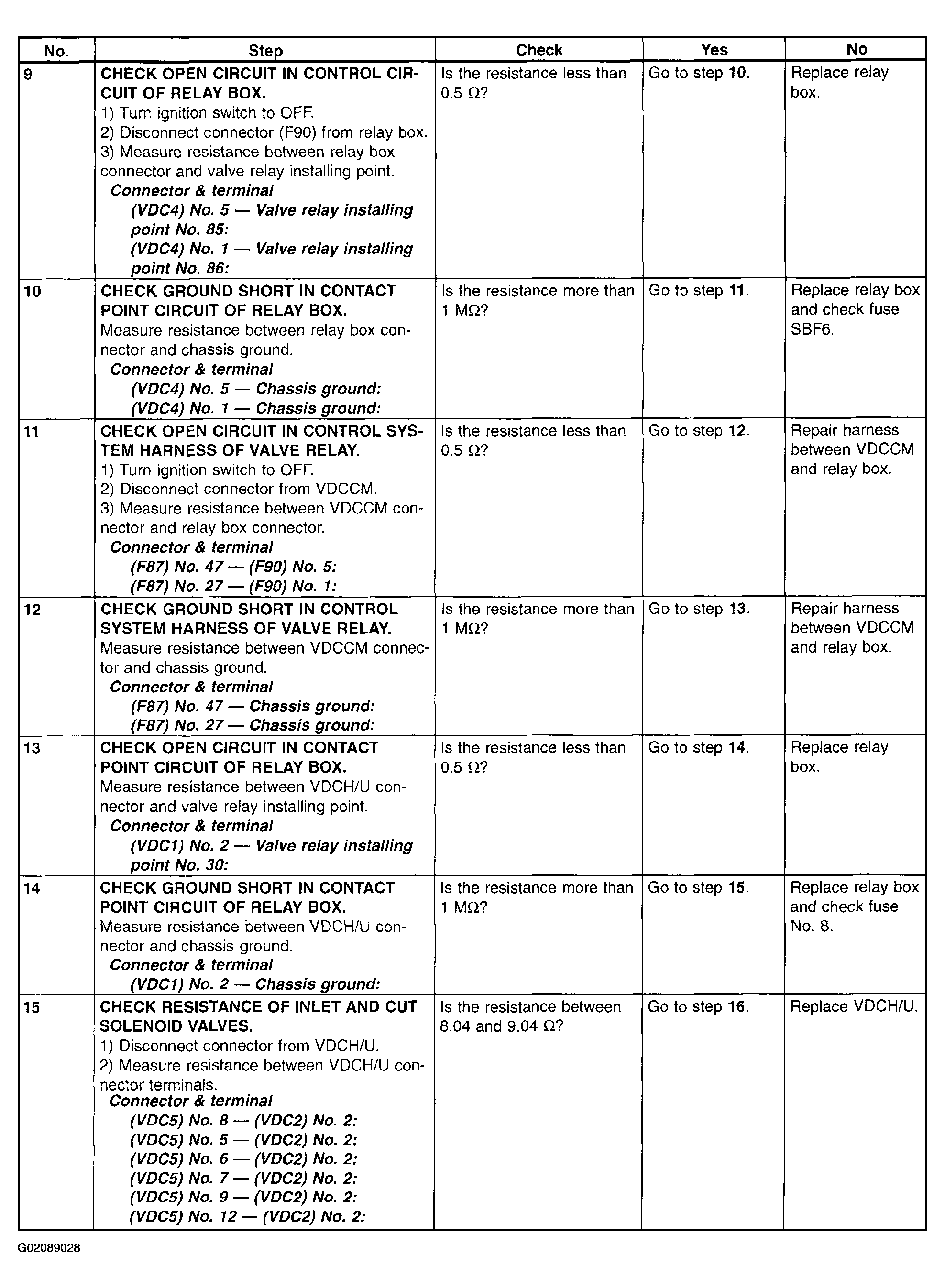

Fig 2: Diagnostic Chart - Trouble Code 51 - With Select Monitor (Valve Relay) - (2 Of 4)
G02089028

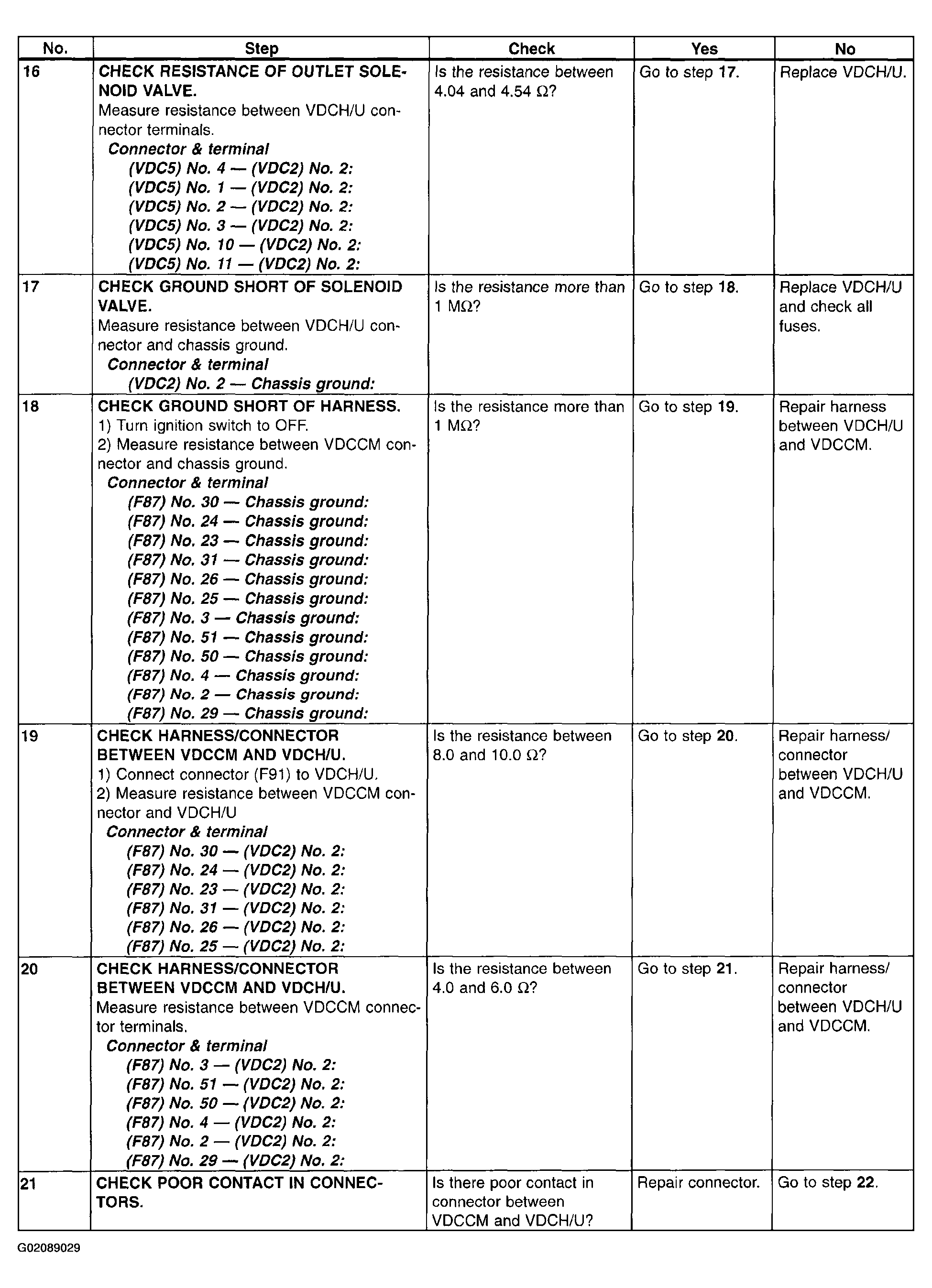

Fig 3: Diagnostic Chart - Trouble Code 51 - With Select Monitor (Valve Relay) - (3 Of 4)
G02089029

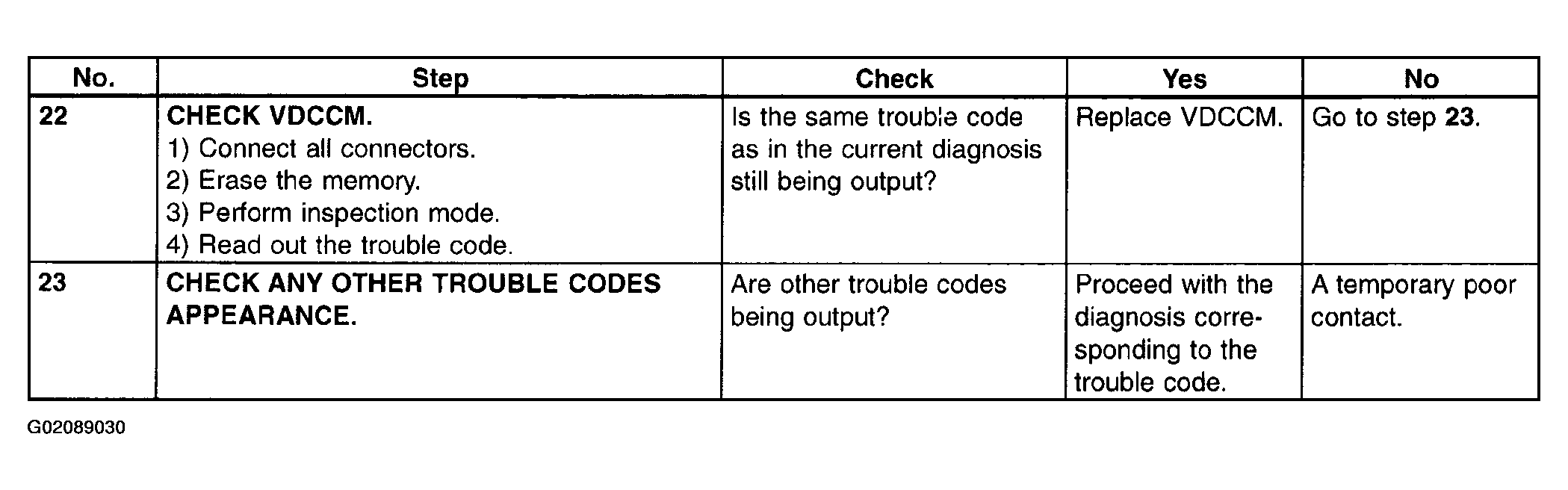

Fig 4: Diagnostic Chart - Trouble Code 51 - With Select Monitor (Valve Relay) - (4 Of 4)
G02089030
