Trouble Code 72 Abnormal Yaw Rate Sensor Output: Wiring Diagram

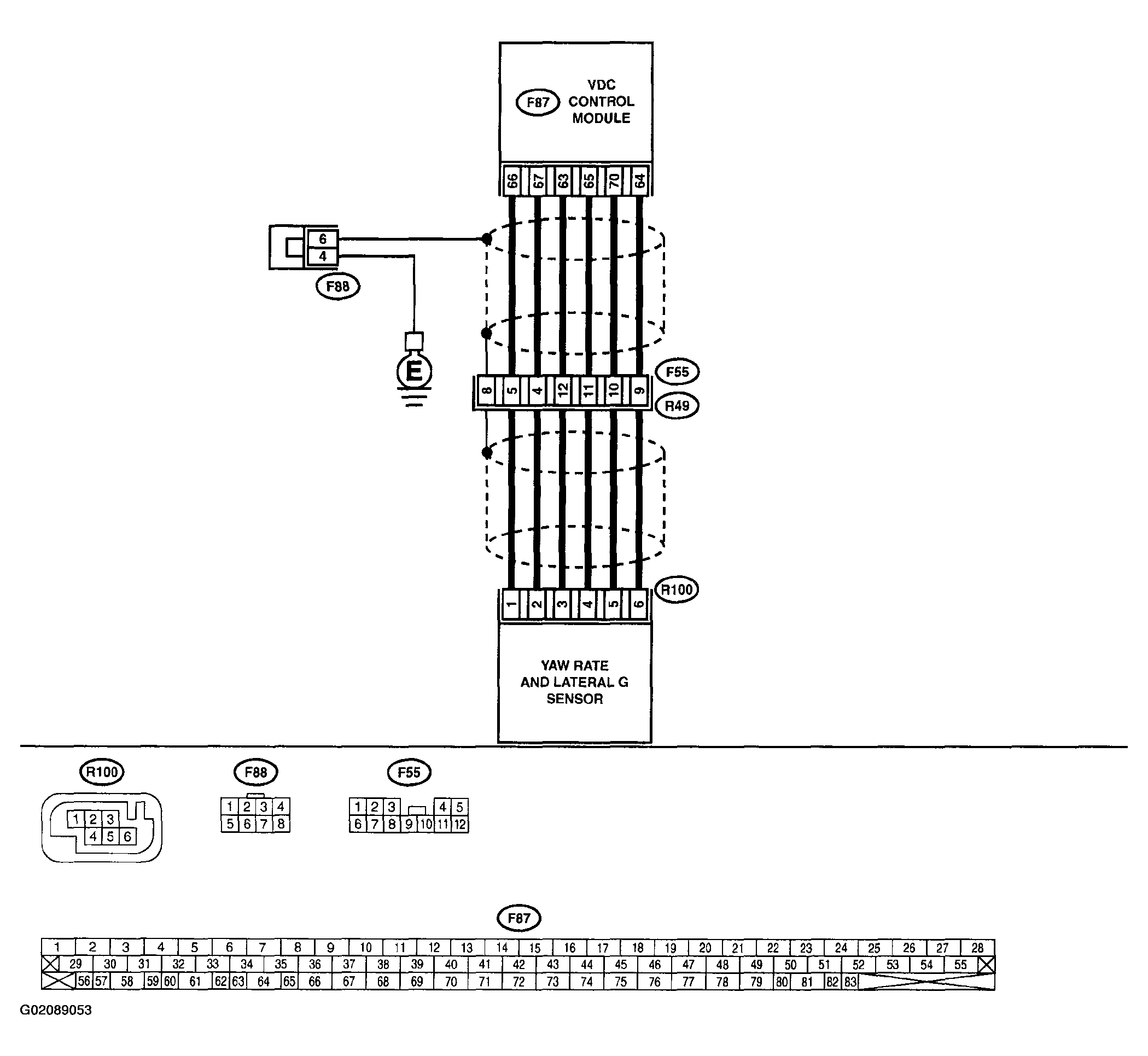

Fig 1: Wiring Diagram - Trouble Code 72 - With Select Monitor (Abnormal Yaw Rate Sensor Output)
G02089053
