Without SUBARU Select Monitor

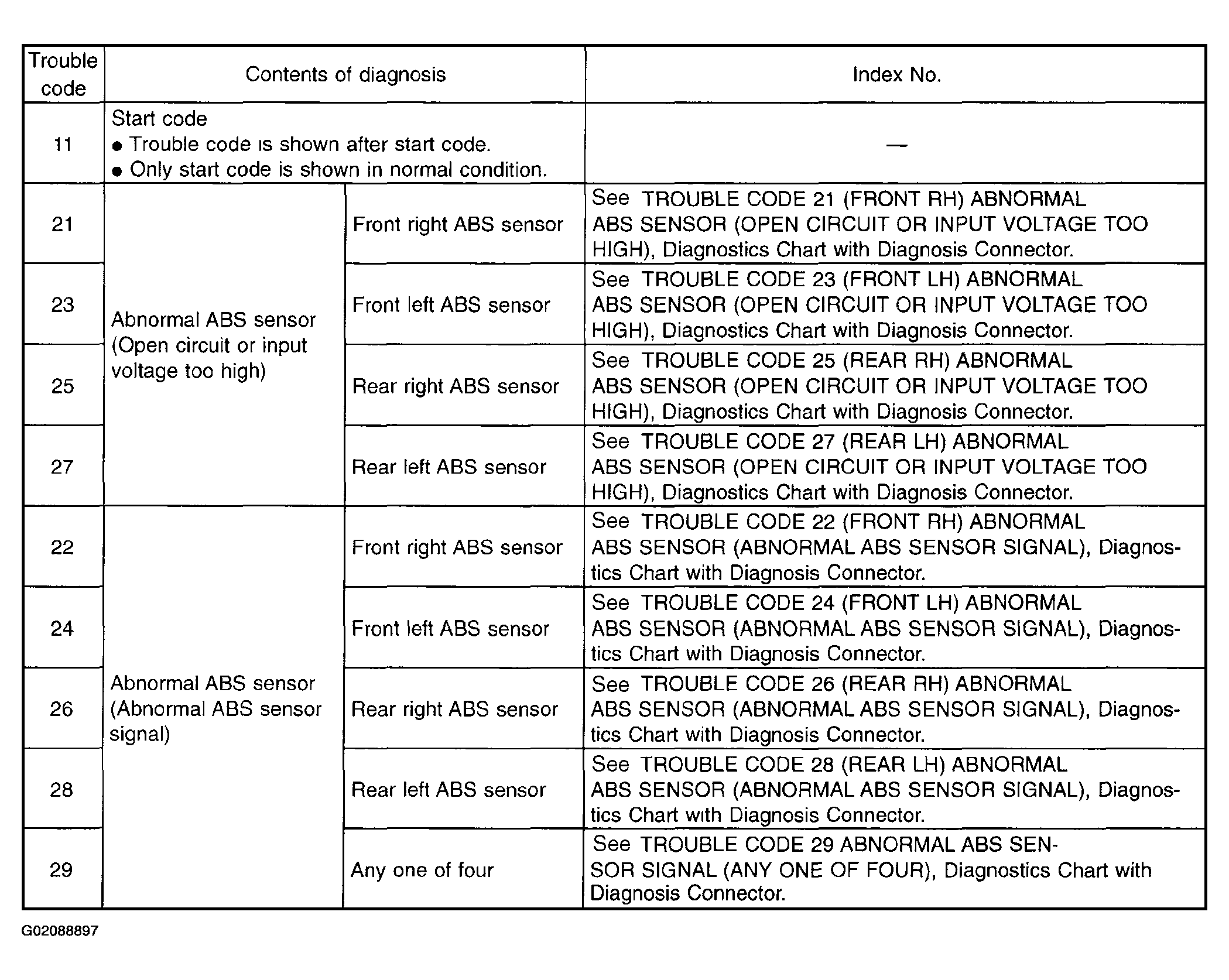

Fig 1: Diagnostic Trouble Code Chart - (Without Subaru Select Monitor) - (1 Of 4)
G02088897

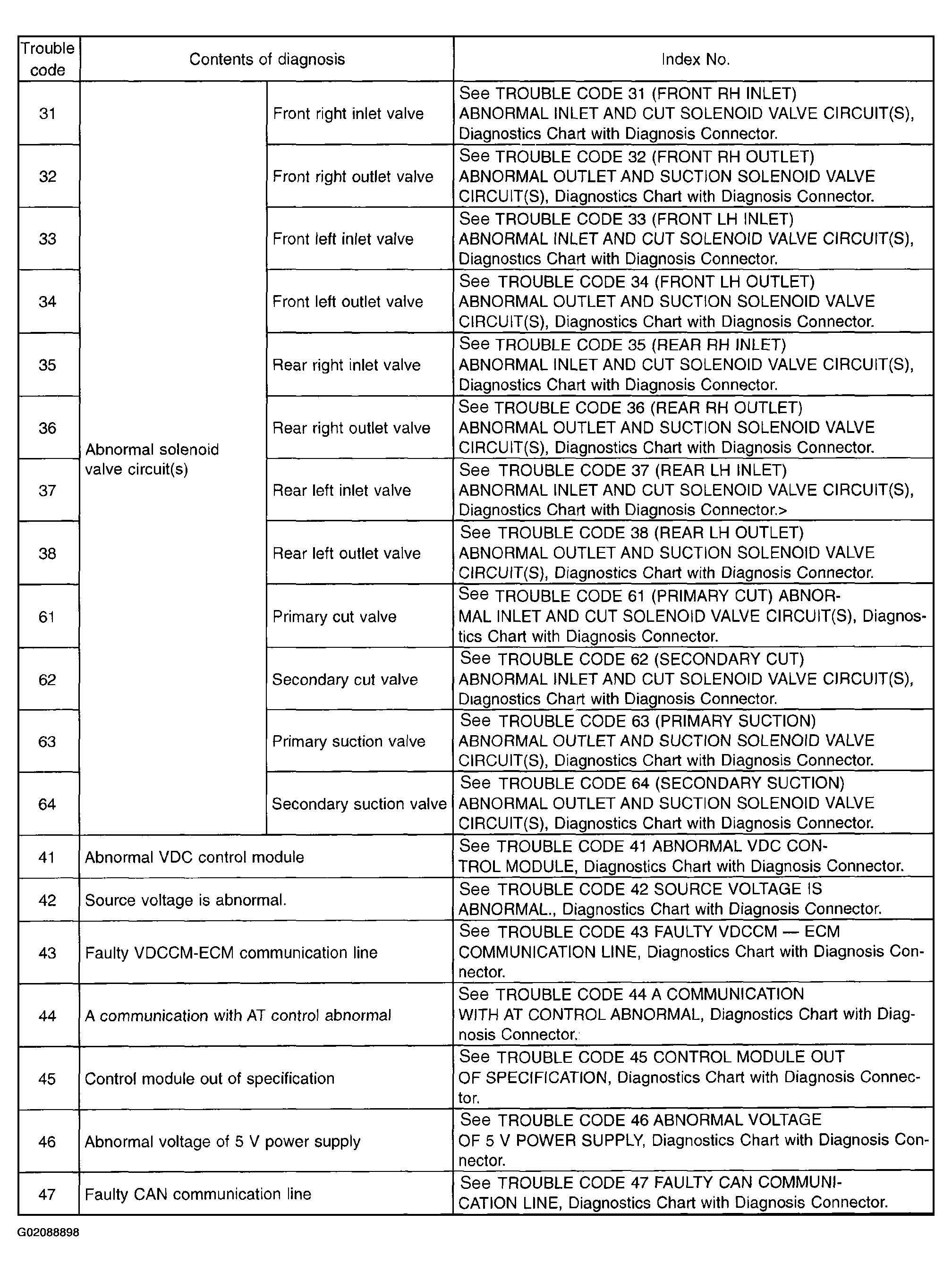

Fig 2: Diagnostic Trouble Code Chart - (Without Subaru Select Monitor) - (2 Of 4)
G02088898

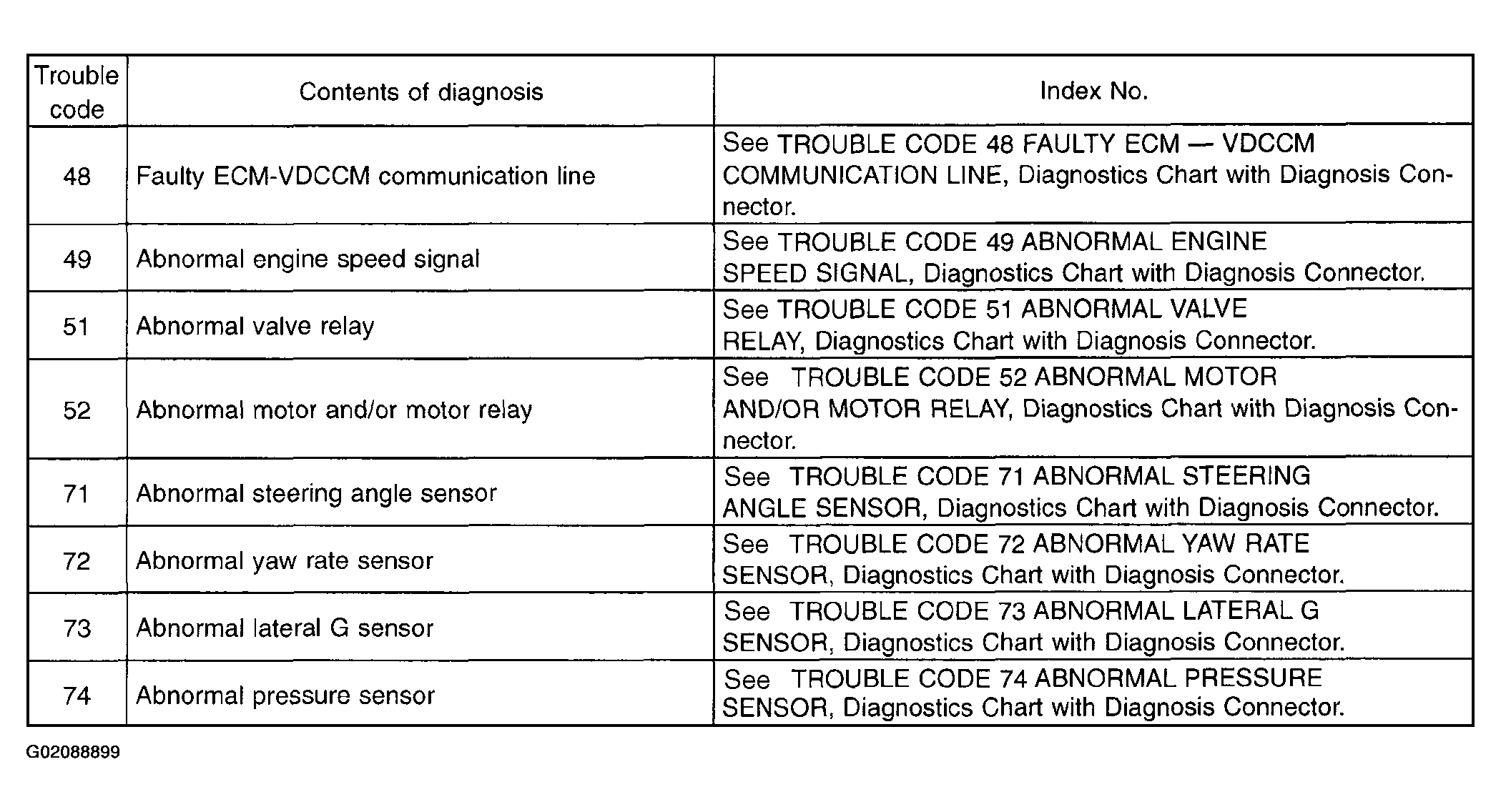

Fig 3: Diagnostic Trouble Code Chart - (Without Subaru Select Monitor) - (3 Of 4)
G02088899

If any of the following multiple trouble codes are present in memory, check the area corresponding to the first trouble code. If no problem is detected, check the areas corresponding to the other trouble codes in order of their appearance.

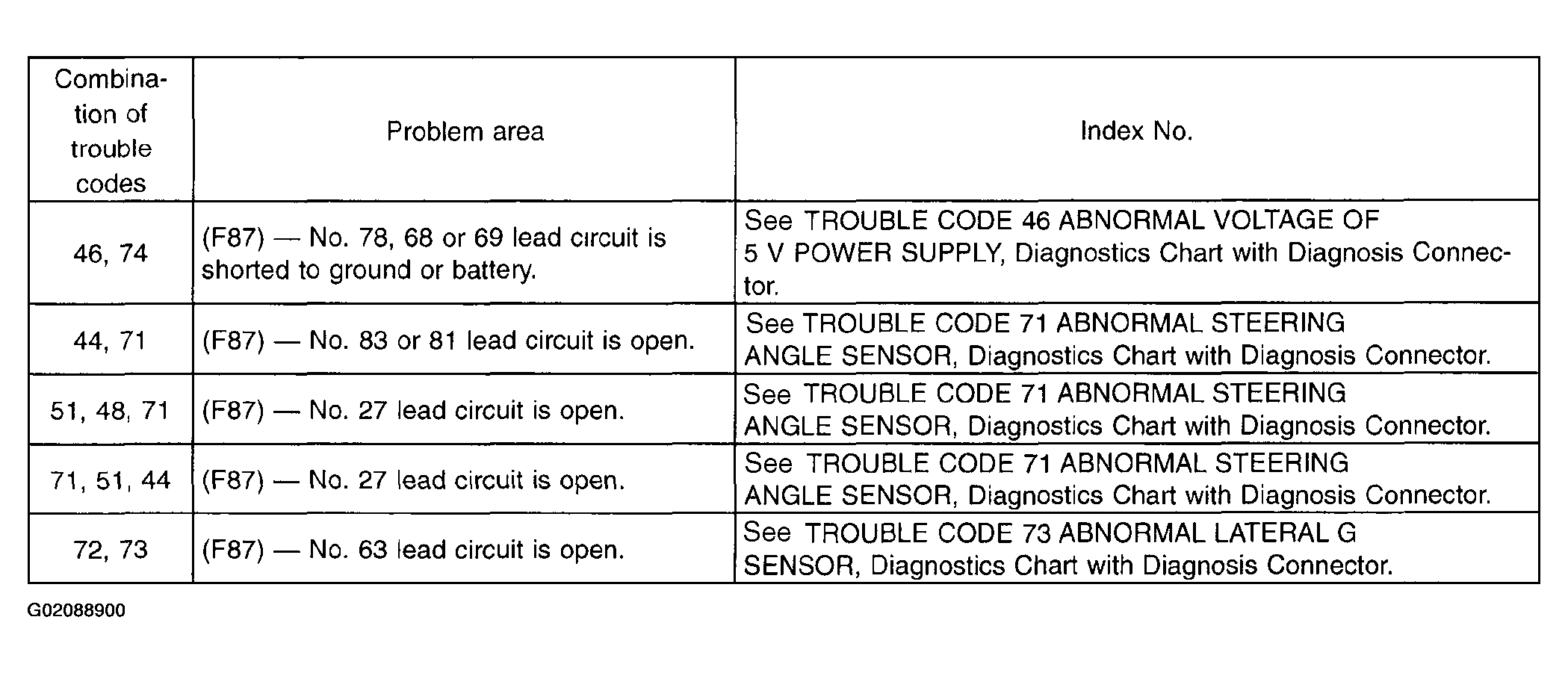

Fig 4: Diagnostic Trouble Code Chart - (Without Subaru Select Monitor) - (4 Of 4)
G02088900
