Without SUBARU Select Monitor

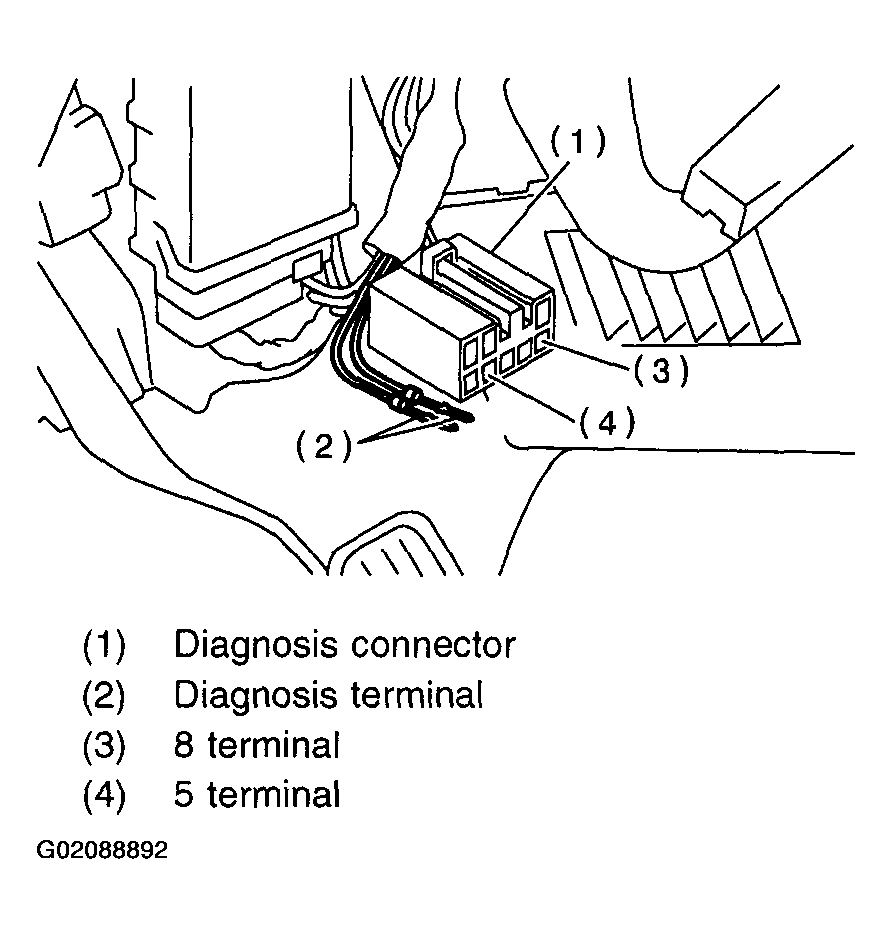

- Take out diagnosis connector from side of driver's seat heater unit.
- Turn ignition switch OFF.
- Connect diagnosis connector terminal 8 to diagnosis terminal.
- Turn ignition switch ON.

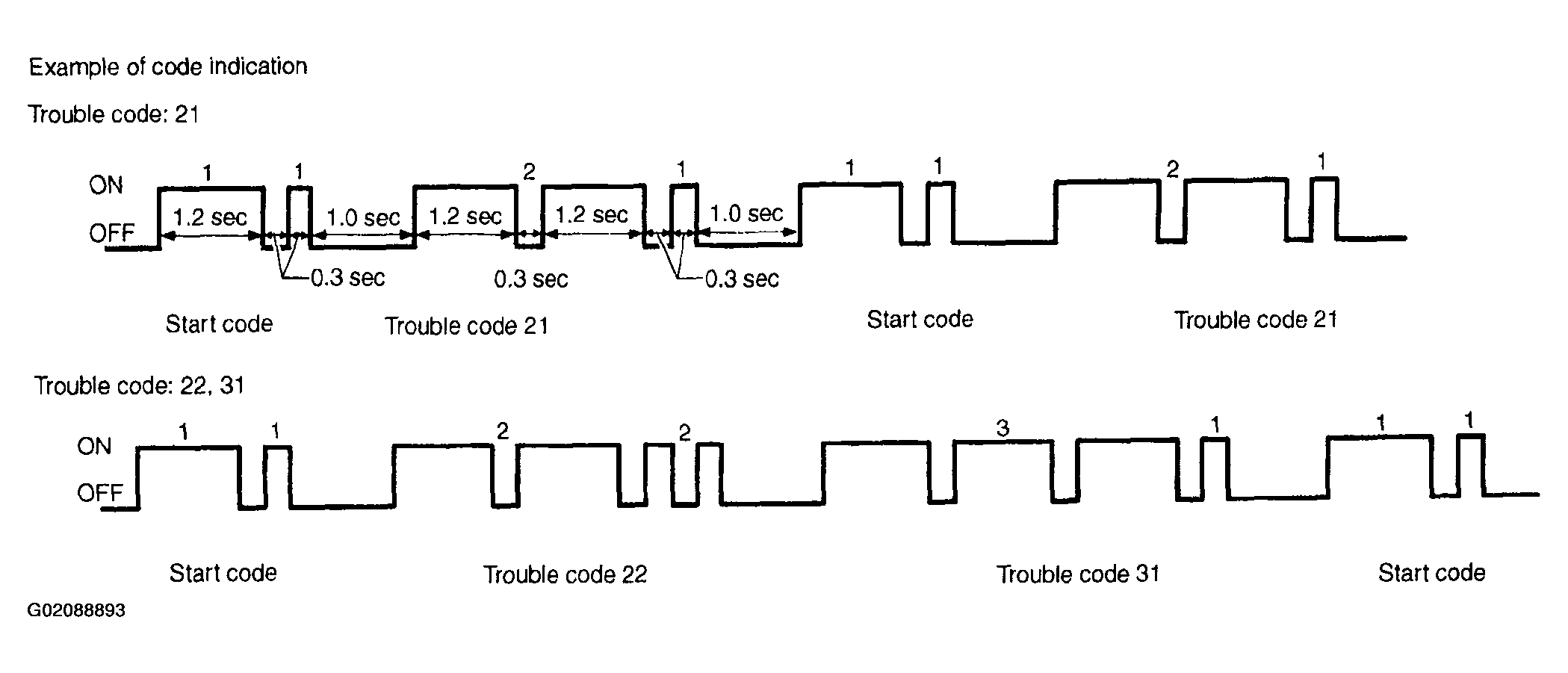

- ABS warning light is set in the diagnostic mode and blinks to identify trouble code.
- After the start code (11) is shown, the trouble codes will be shown in order of the last information first. These repeat for a maximum of 5 minutes.
NOTE:
- When there are no trouble codes in memory, only the start code (11) is shown.
- When on-board diagnosis of the VDC control module detects a problem, the information (up to a maximum of three) will be stored in the EEP ROM as a trouble code. When there are more than three, the most recent three will be stored. (Stored codes will stay in memory until they are cleared.)
