Read Current Data
- On the << Main Menu >> display screen, select {Each System Check} and press the << YES >> key.
- On the << System Selection Menu >> display screen, select {Brake Control System} and press << YES >> key.
- Press the << YES >> key after the VDC type is displayed.
- On the << Brake Control Diagnosis >> display screen, select {Current Data Display & Save} and press the << YES >> key.
- On the << Data Display Menu >> display screen, select {Data Display} and press the << YES >> key.
- Using the scroll key, move the display screen up or down until the desired data is shown.

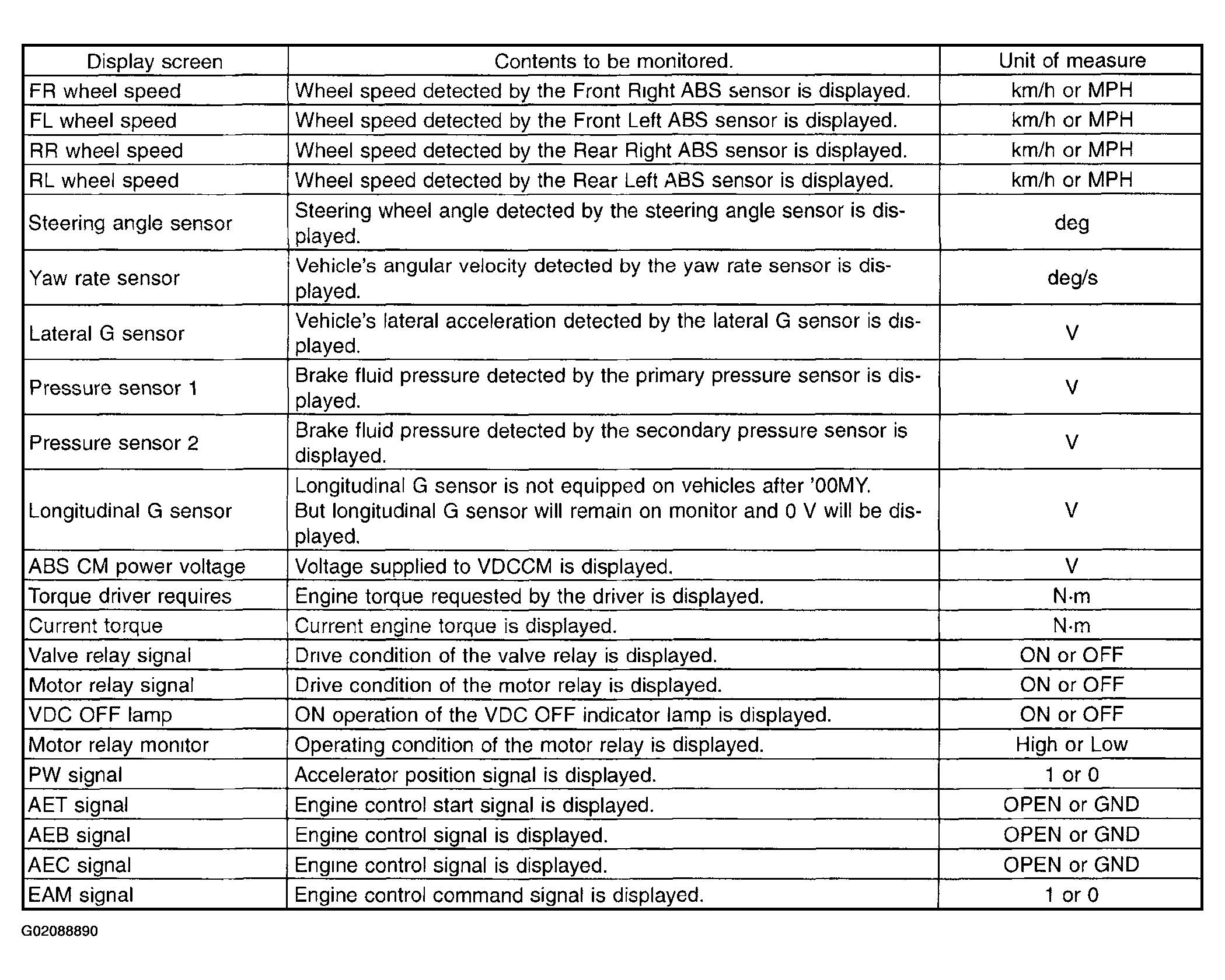

- A list of the support data is shown in the following table.
NOTE:
For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL. See Subaru Select Monitor
.
