Abs Sequence Control With Diagnosis Connector

  1. Connect diagnosis terminals to terminals No. 5 and No. 8 of the diagnosis connector beside driver's seat heater unit.

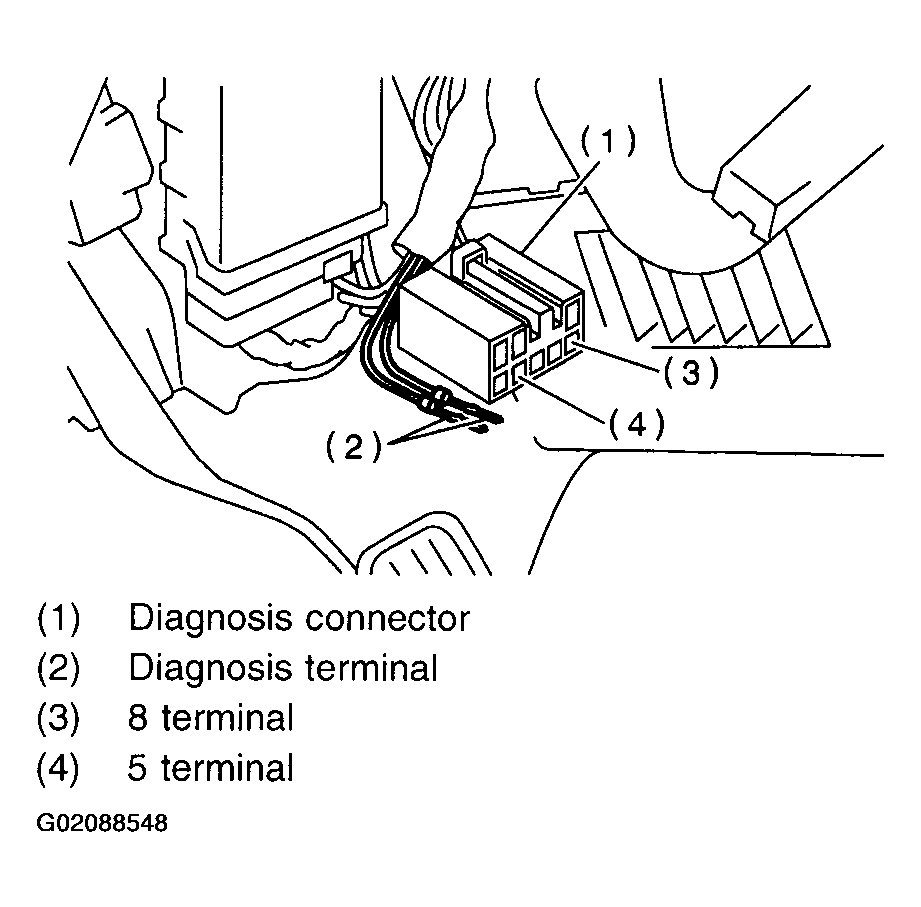

    Fig 1: Identifying Terminals No. 5 & No. 8 Of The Diagnostic Connector
    G02088548
  2. Set the speed of all wheels at 2.75 km/h (2 MPH) or less.
  3. Turn ignition switch OFF.
  4. Within 0.5 seconds after the ABS and VDC warning light goes out, depress the brake pedal and hold it immediately after ignition switch is turned to ON.
    CAUTION: Do not depress the clutch pedal.
    NOTE:
    • When the ignition switch is set to on, the brake pedal must not be depressed.
    • Engine must not operate.
  5. After completion of ABS sequence control, turn ignition switch OFF.
