Hydraulic Control Unit (H/U)

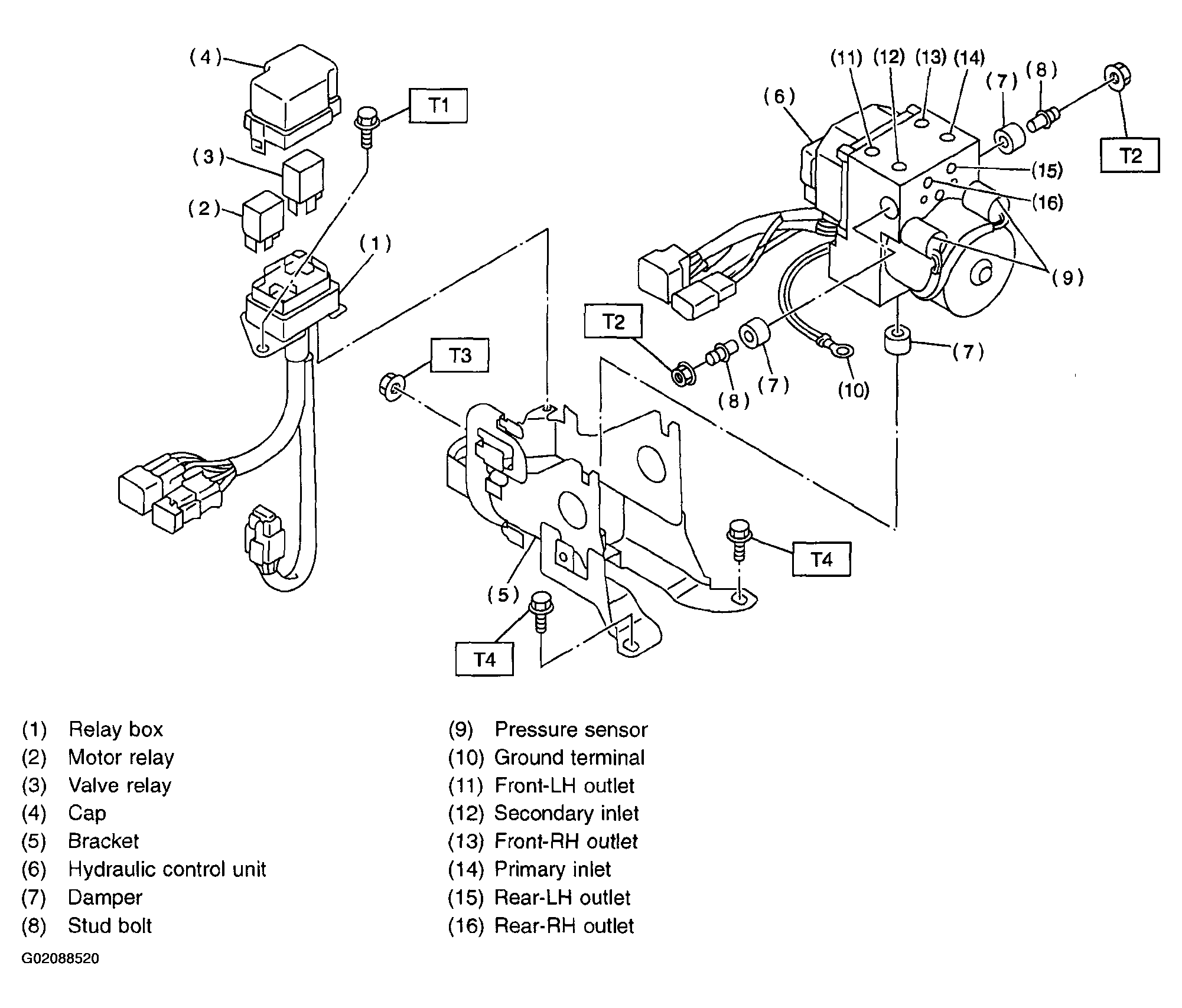

Fig 1: Exploded View Of Hydraulic Control Unit (H/U) Components
G02088520

Tightening torque: N.m (kgf-m, ft-lb)

  1. T1: 13 (1.3, 9.4)
  2. T2: 18 (1.8, 13.0)
  3. T3: 30 (3.1, 22.4)
  4. T4: 33 (3.4, 24.6)
