Yaw Rate And Lateral G Sensor

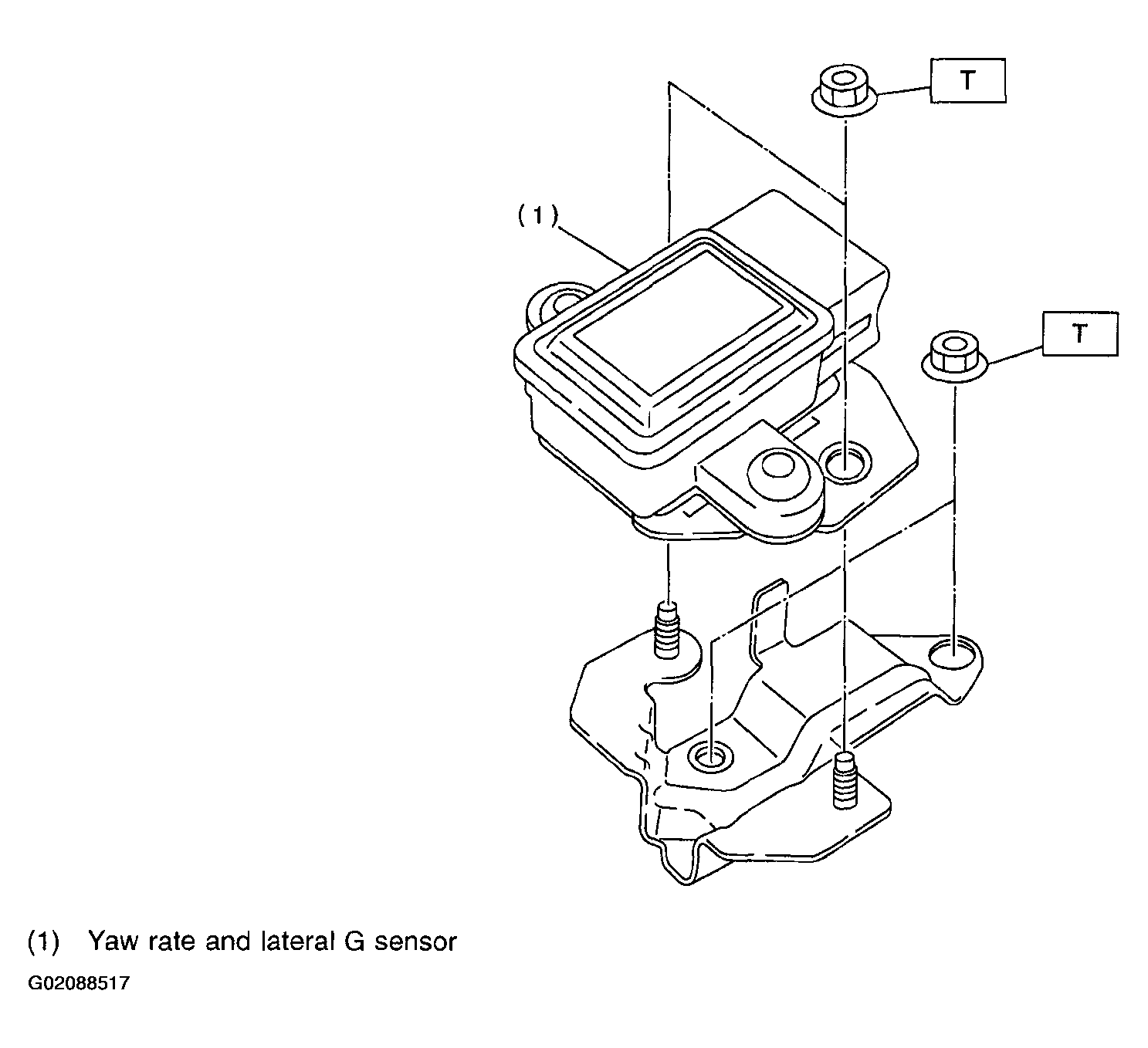

Fig 1: Identifying Yaw Rate & Lateral G Sensor
G02088517

Tightening torque: N.m (kgf-m, ft-lb)

  1. T: 7.5 (0.76, 5.5)
