Hydraulic Control Unit (H/U): Inspection: Notes

  1. Check connected and fixed condition of connector.
  2. Check valve relay and motor relay for discontinuity or short circuits.

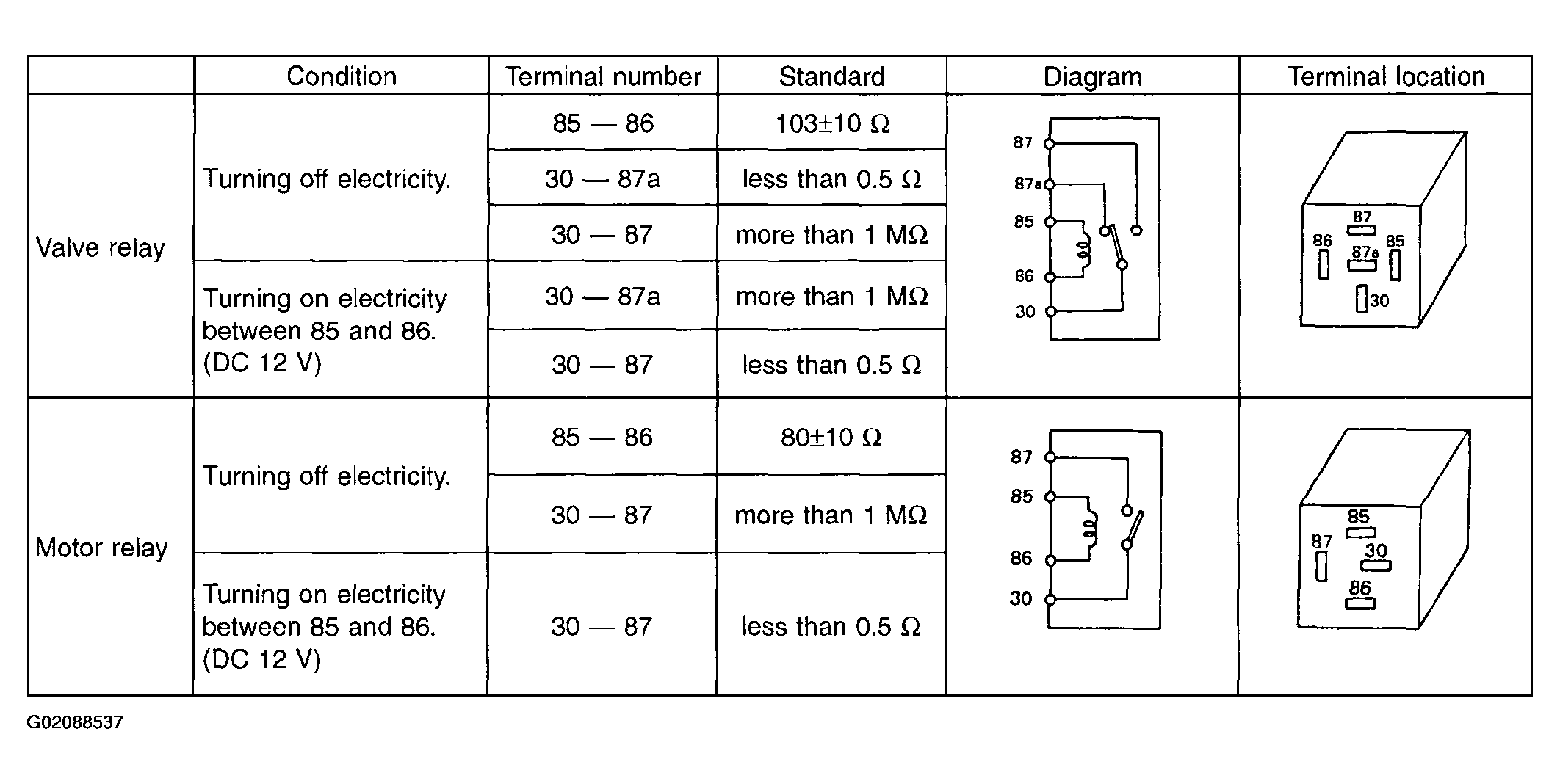

    Fig 1: Valve Relay & Motor Relay Chart
    G02088537
