Relay Box

Install relay box and connector bracket.
Tightening torque:
1. 18 N.m (1.8 kgf-m, 13.0 ft-lb)

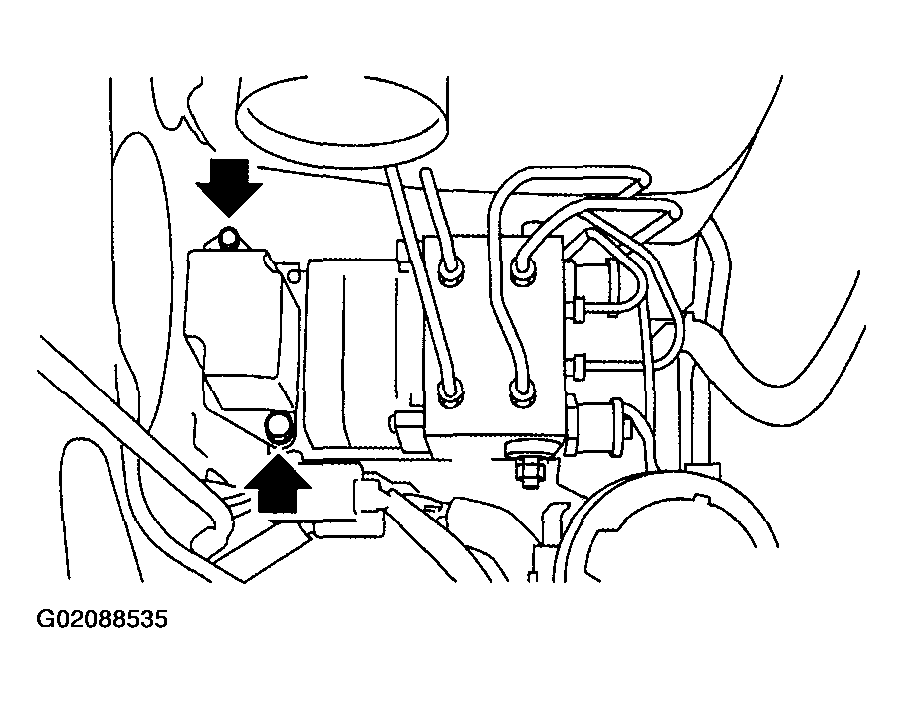

Fig 1: Installing Relay Box & Connector Bracket
Secure relay box connector to connector bracket.
CAUTION: Align connector with mating receptacle.
Connect connector to relay box.

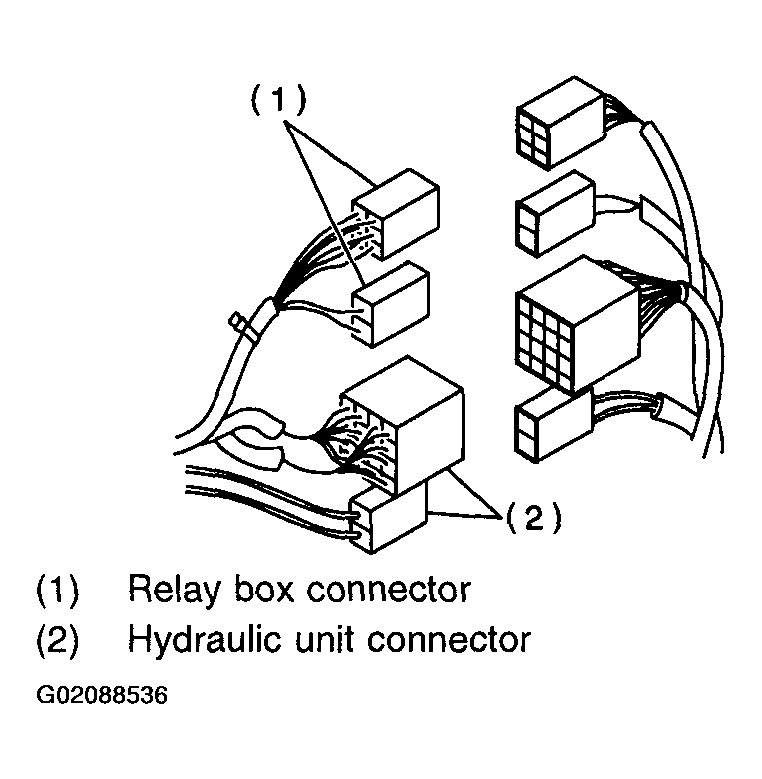

Fig 2: Connecting Connectors To Relay Box
Install air intake duct.
Connect ground cable to battery.
