Firing Order & Timing Marks

NOTE: Firing order for 2.2L & 2.5L is 1-3-2-4. For coil connections and cylinder identification, see Fig 1 and Fig 2 . For timing marks, see Fig 4 . Firing order for 3.0L 1-6-3-2-5-4. For cylinder identification, see Fig 3 . No timing mark information is available for 3.0L engine.

Fig 1: Identifying DIS Coil Connections On 2.2L & 2.5L

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Cylinder Identification For 2.2L & 2.5L

Courtesy of SUBARU OF AMERICA, INC.

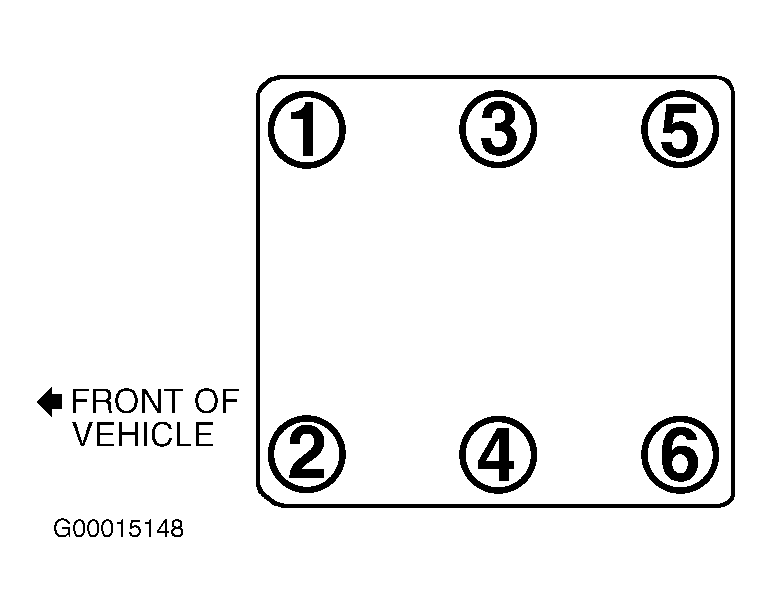

Fig 3: Cylinder Identification For 3.0L

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Locating Ignition Timing Marks On 2.2L & 2.5L

Courtesy of SUBARU OF AMERICA, INC.
