A/T Select Lever

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

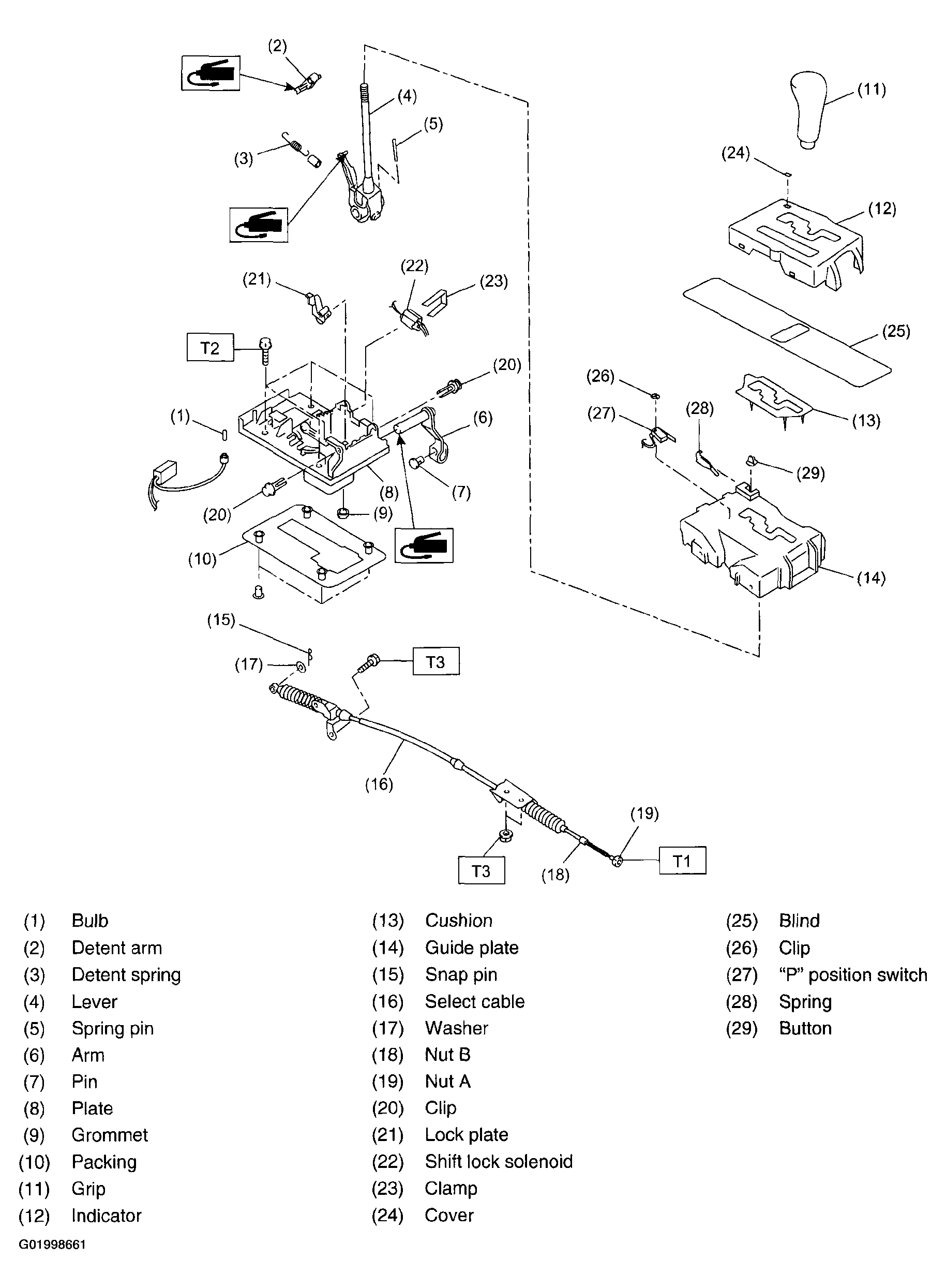

Fig 1: Identifying A/T Selector Lever Components
G01998661Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

  1. T1:  7.5 (0.76, 5.5)
  2. T2:  13 (1.3, 9.4)
  3. T3:  18 (1.8, 13.0)
