M/T Gear Shift Lever: Assembly

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Clean all parts before assembly.
Mount the bushing and cushion rubber on the stay.

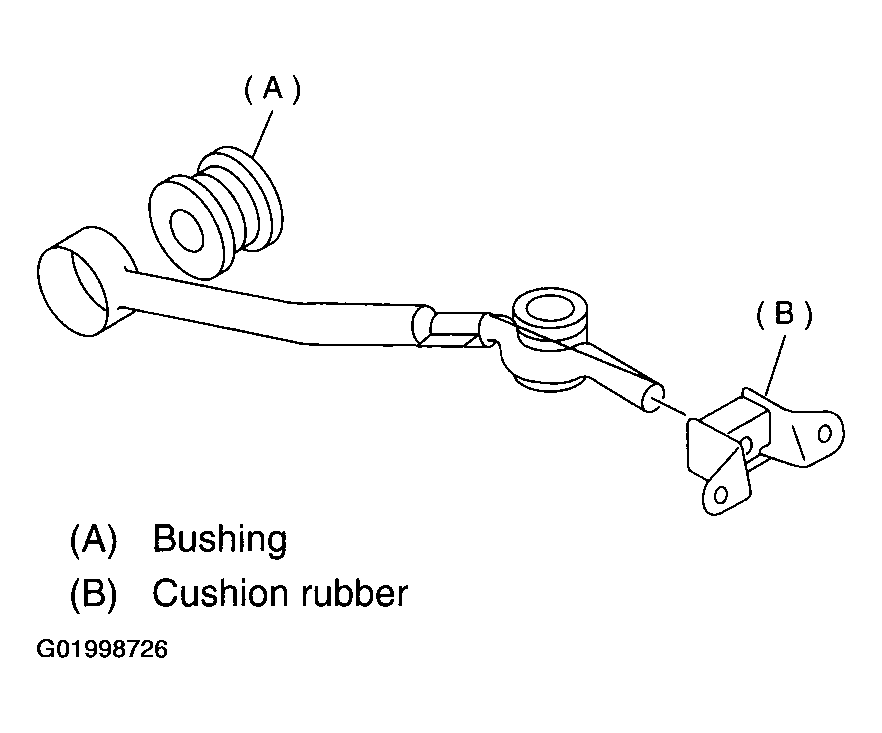

Fig 1: Mounting The Bushing & Cushion Rubber On The Stay
Courtesy of SUBARU OF AMERICA, INC.
Mount each part; boot, O-ring, bushing, spacer, bush A, bush B and spring pin on the gear shift lever.
CAUTION:
- Always use new O-rings.
- Apply grease [NIGTIGHT LYW No. 2 or equivalent] to the inner and side surfaces of the bushing when installing the spacer.

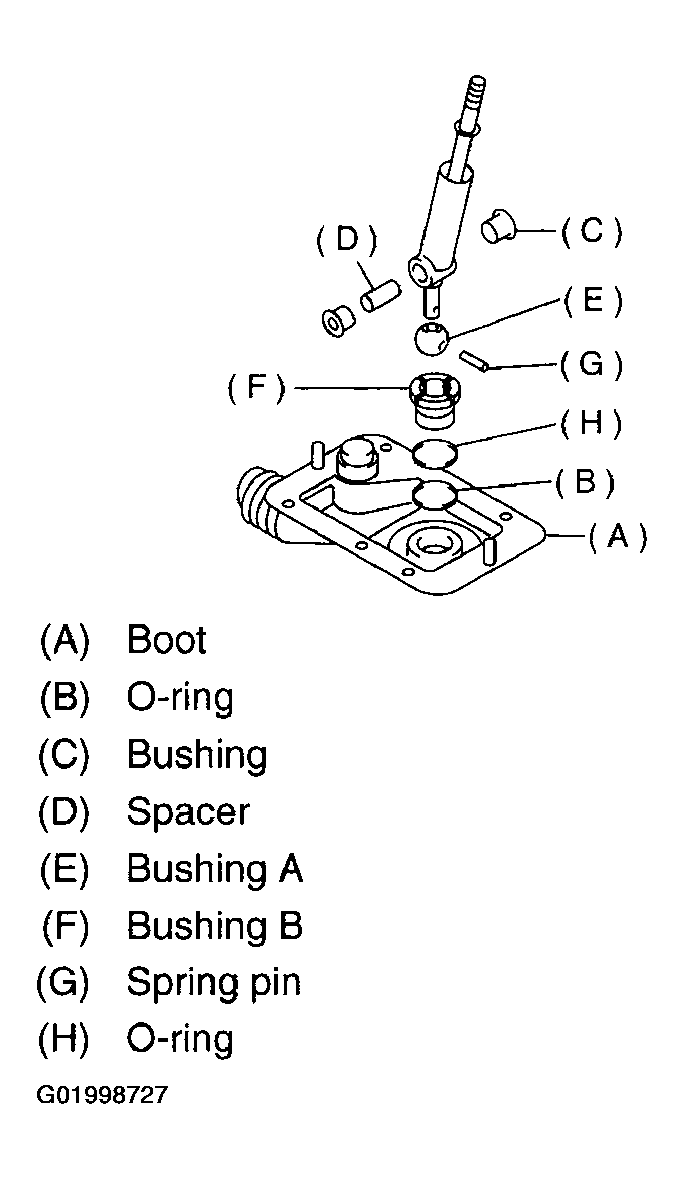

Fig 2: Mounting Each Part On Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
Insert the gear shift lever into the boot hole.
Install the snap ring and stay to the bushing.

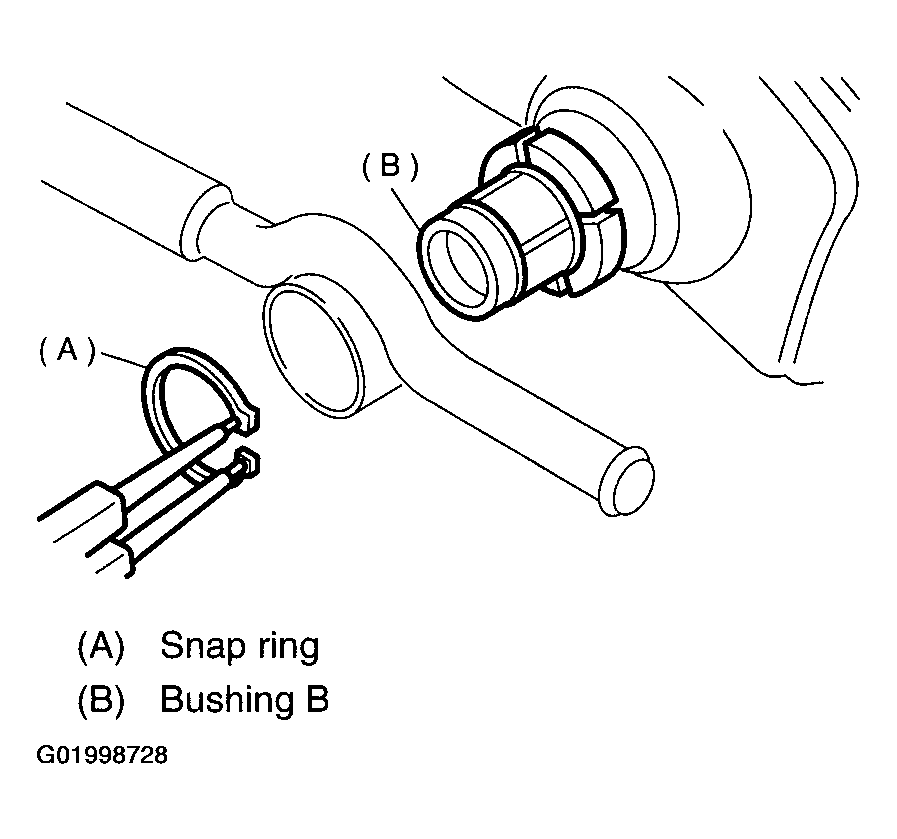

Fig 3: Installing Snap Ring & Stay To Bushing
Courtesy of SUBARU OF AMERICA, INC.
Tighten with locking wire to the extent that the boot will not come off.
CAUTION: Always use new locking wire.

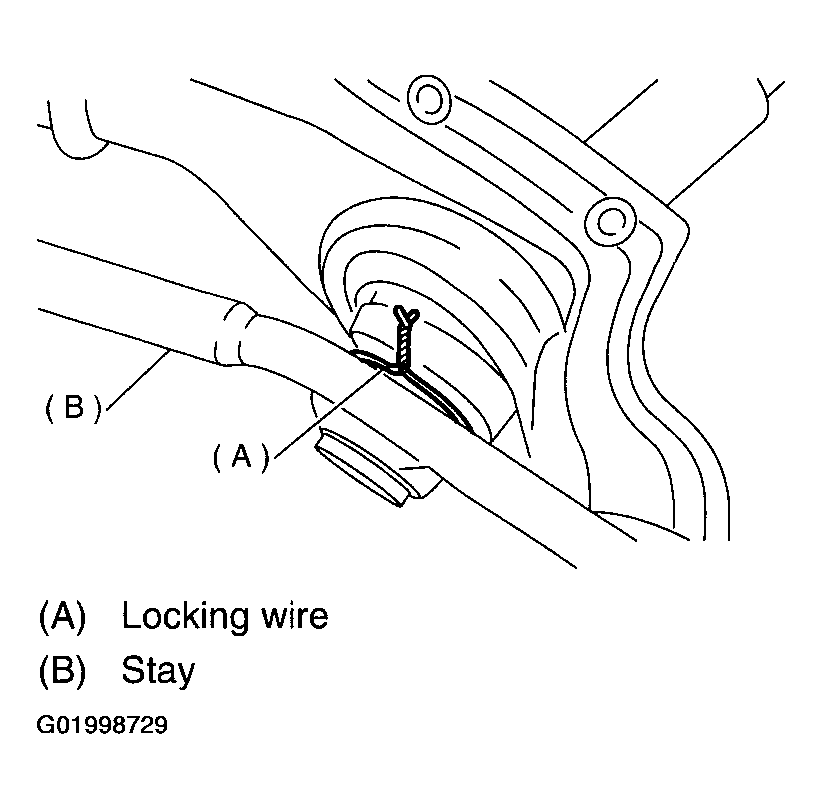

Fig 4: Tightening With Locking Wire
Courtesy of SUBARU OF AMERICA, INC.
Insert the rod into the boot hole.
Connect the rod to gear shift lever.
Tightening torque: 11.8 N.m (1.2 kgf-m, 8.7 ft-lb)

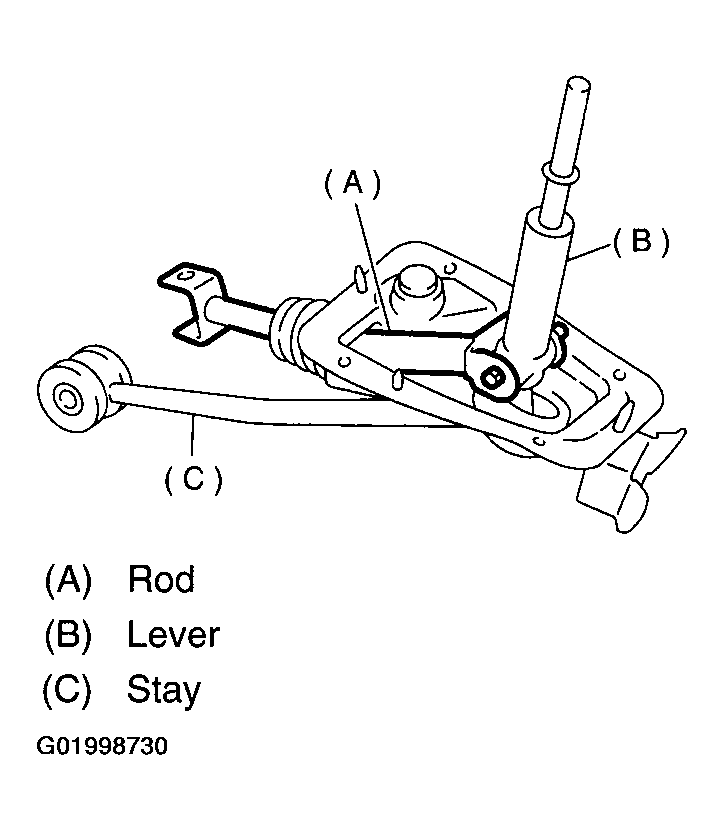

Fig 5: Connecting Rod To Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
Check the swing torque of the rod in relation to the gear shift lever.
If the torque exceeds the specification, replace the bushing or retighten nuts.
Check that there is no excessive play and that parts move smoothly.
