M/T Gear Shift Lever: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Set the vehicle on the lift.
Remove the gear shift knob.
Disconnect the ground terminal from battery.
Remove the console box. See CONSOLE BOX .
Remove the boot plate from body.

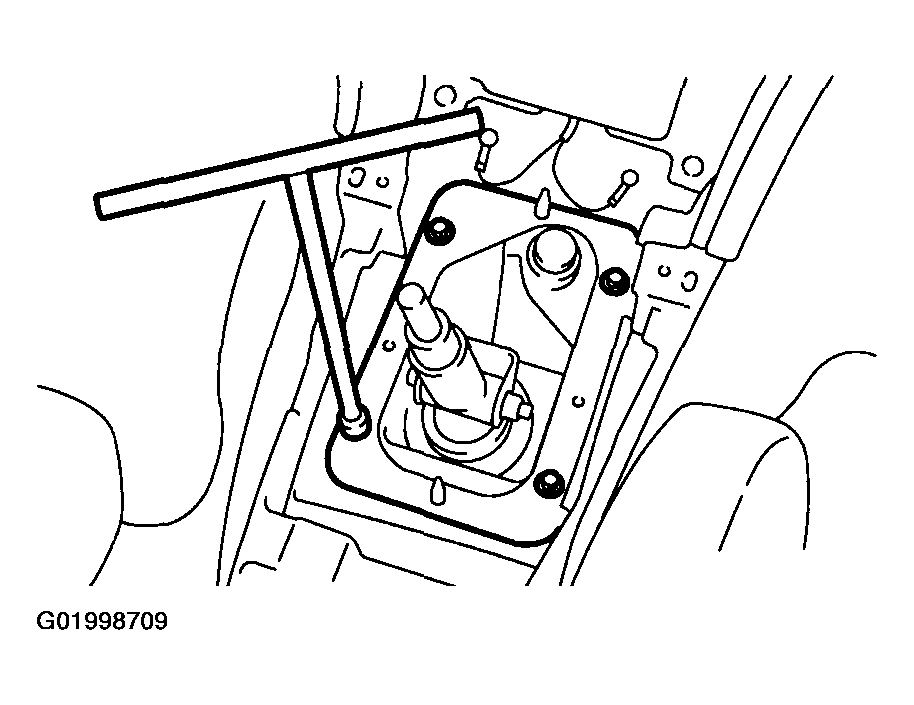

Fig 1: Removing Boot Plate From Body
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove the rear exhaust pipe and muffler.
Remove the heat shield cover. (If equipped)
Remove the stay from transmission bracket.

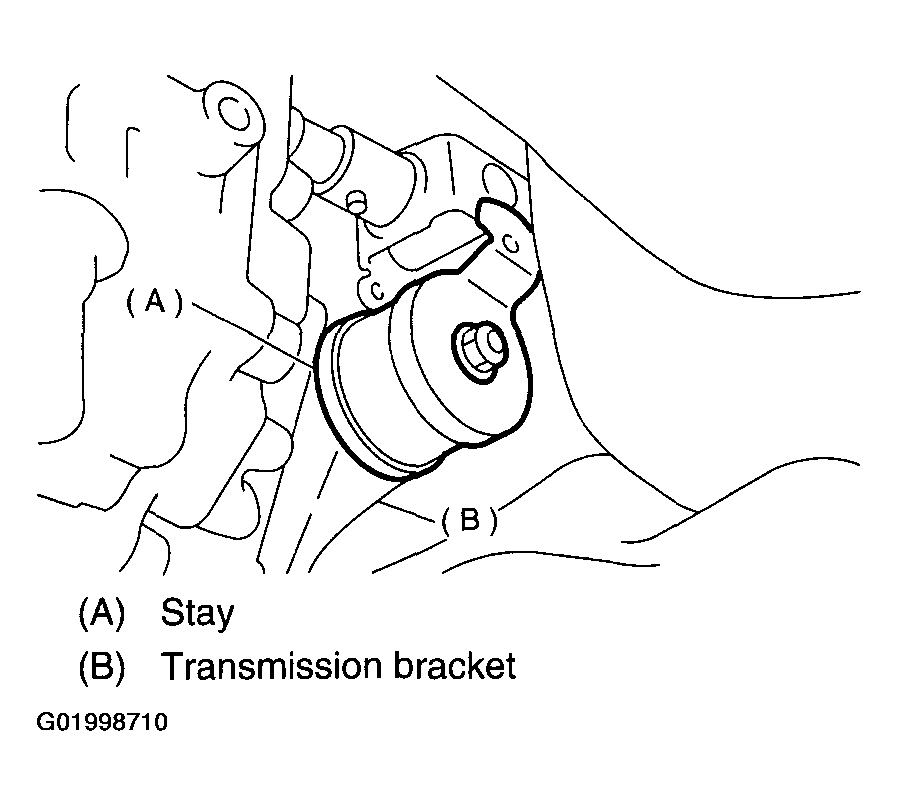

Fig 2: Removing Stay From Transmission Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the rod from joint.

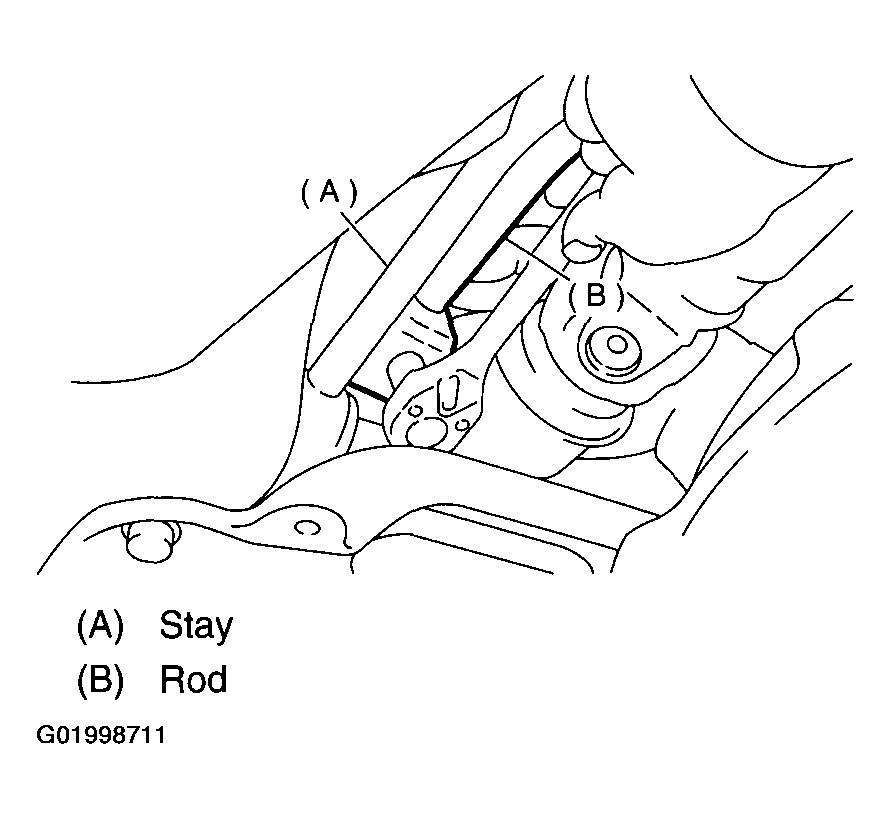

Fig 3: Removing Rod From Joint
Courtesy of SUBARU OF AMERICA, INC.
Remove the cushion rubber from body.

Fig 4: Removing Cushion Rubber From Body
Courtesy of SUBARU OF AMERICA, INC.
Remove the joint and then extract the spring pin.

Fig 5: Removing Joint & Then Extract The Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the gear shift lever.

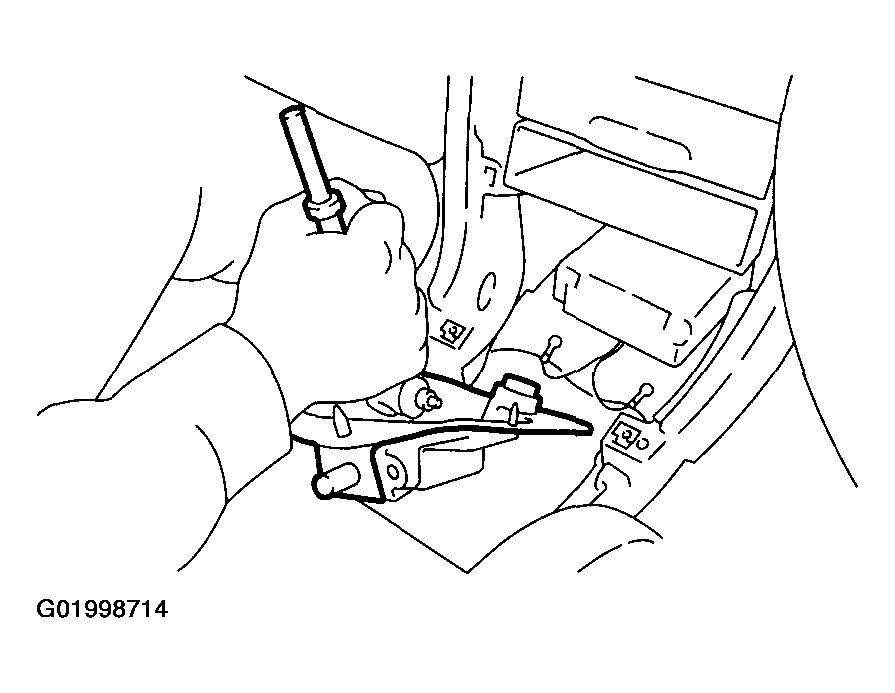

Fig 6: Removing Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
