Select Cable: Installation
WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
- Install the select cable to plate assembly.
Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)
- Install the select cable to range select lever.

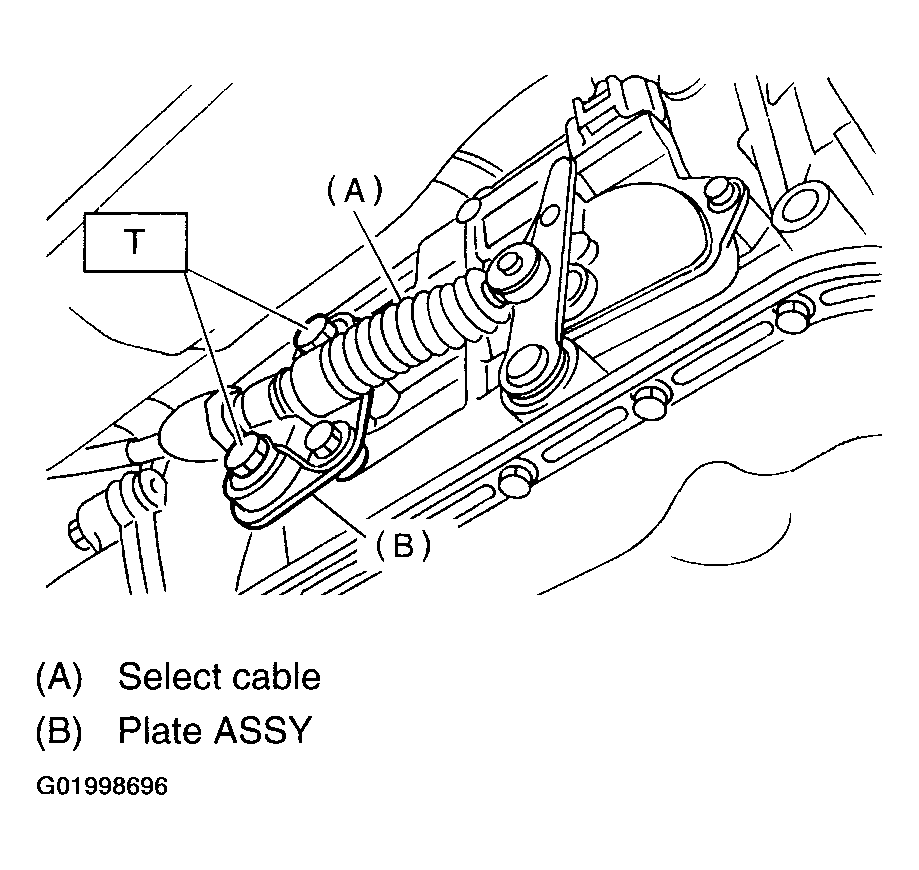

- Install the plate assembly to transmission.
Tightening torque: T: 24.5 N.m (2.5 kgf-m, 18.1 ft-lb)

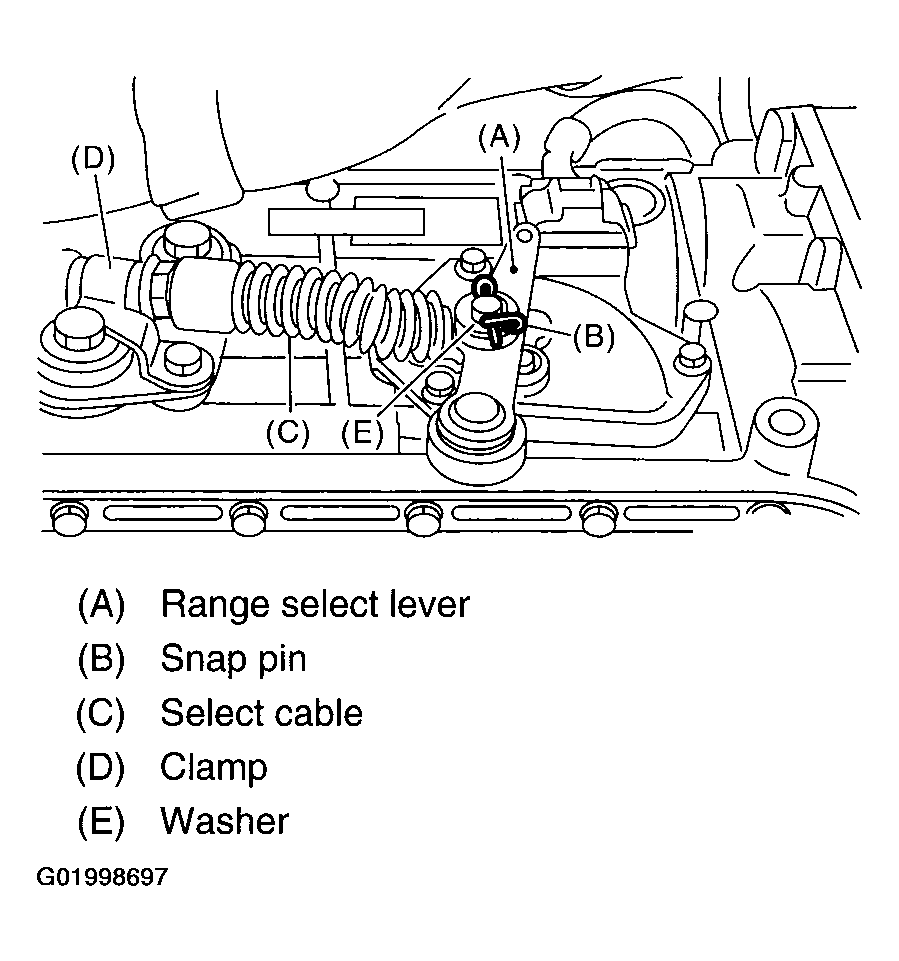

- Install the washer and snap pin to range select lever.
- Insert the thread portion of the other inner cable and into connector hole of the select lever, and fix the other outer cable end to bracket.
Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)
- Move the select lever to the "N" position, then adjust the select cable position. See ADJUSTMENT .
- Install the heat shield cover. (If equipped)
- Install the front and center exhaust pipe. (Non-turbo model) See INSTALLATION (FRONT EXHAUST PIPE) .
- Install the center exhaust pipe. (Turbo model) See INSTALLATION (CENTER EXHAUST PIPE) .
