Identification & Specifications: Specifications: Legacy: Electrical

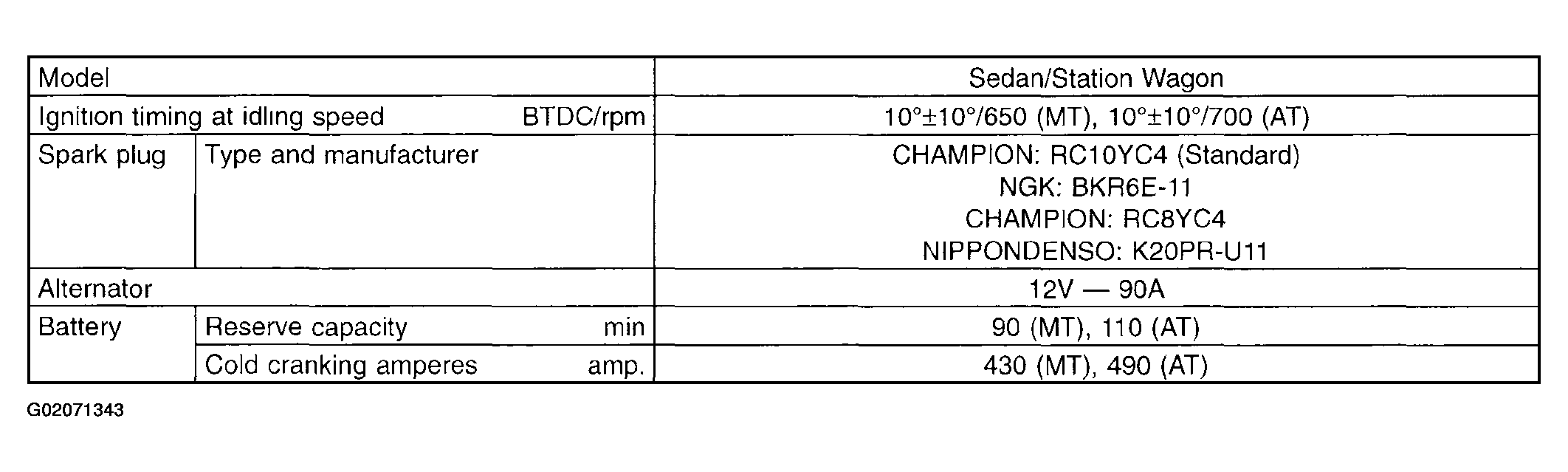

Fig 1: Electrical Specifications Chart

G02071343
