Service Manual Corrections (18-69-01)

Publication date: 2001-07-01
Reference number: 18-69-01

SERVICE MANUAL CORRECTIONS

SERVICE MANUAL CORRECTIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 18-69-01, Date of Issue: July 1, 2001

SUBARU:

2000-2002 Impreza, Legacy, Outback, Forester

DESCRIPTION

Service Manual Corrections

BULLETIN CONTENT

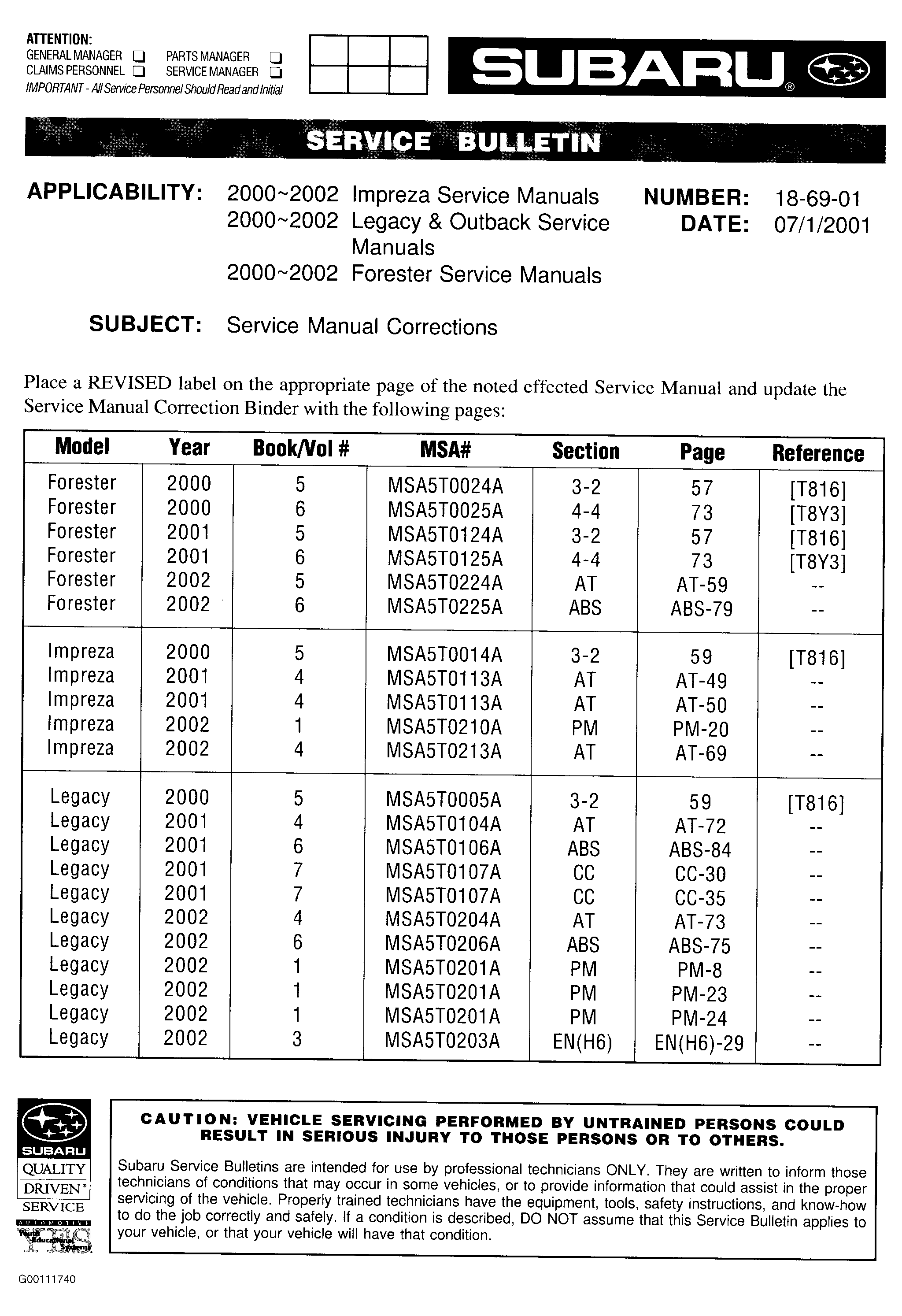

Fig 1: Page 1 of Bulletin

G00111740

Fig 2: Page 2 of Bulletin

G00111741

Fig 3: Page 3 of Bulletin

G00111742

Fig 4: Page 4 of Bulletin

G00111743

Fig 5: Page 5 of Bulletin

G00111744

Fig 6: Page 6 of Bulletin

G00111745

Fig 7: Page 7 of Bulletin

G00111746

Fig 8: Page 8 of Bulletin

G00111747

Fig 9: Page 9 of Bulletin

G00111748

Fig 10: Page 10 of Bulletin

G00111749

Fig 11: Page 11 of Bulletin

G00111750

Fig 12: Page 12 of Bulletin

G00111751

Fig 13: Page 13 of Bulletin

G00111752

Fig 14: Page 14 of Bulletin

G00111753

Fig 15: Page 15 of Bulletin

G00111754

Fig 16: Page 16 of Bulletin

G00111755

Fig 17: Page 17 of Bulletin

G00111756

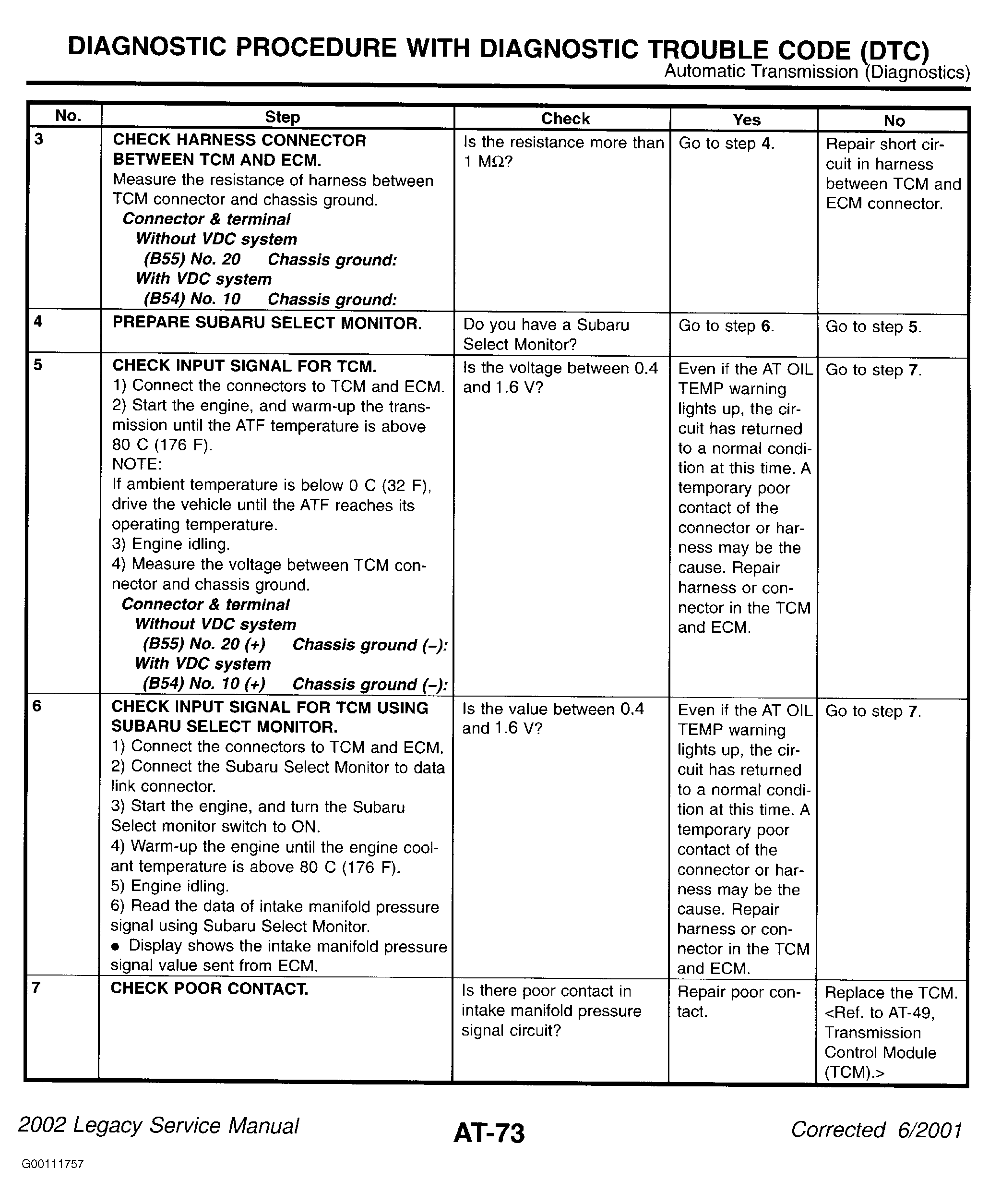

Fig 18: Page 18 of Bulletin

G00111757

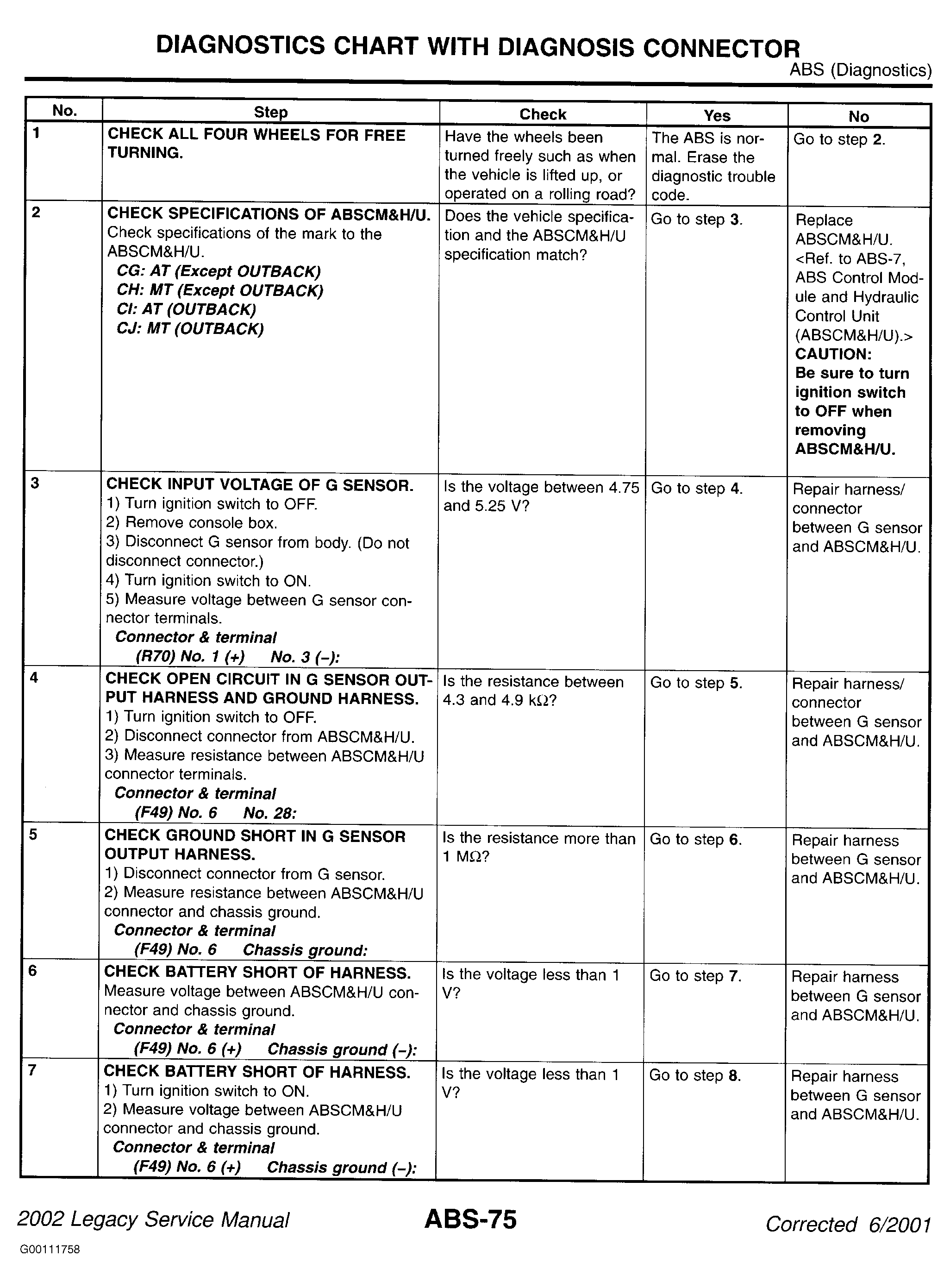

Fig 19: Page 19 of Bulletin

G00111758

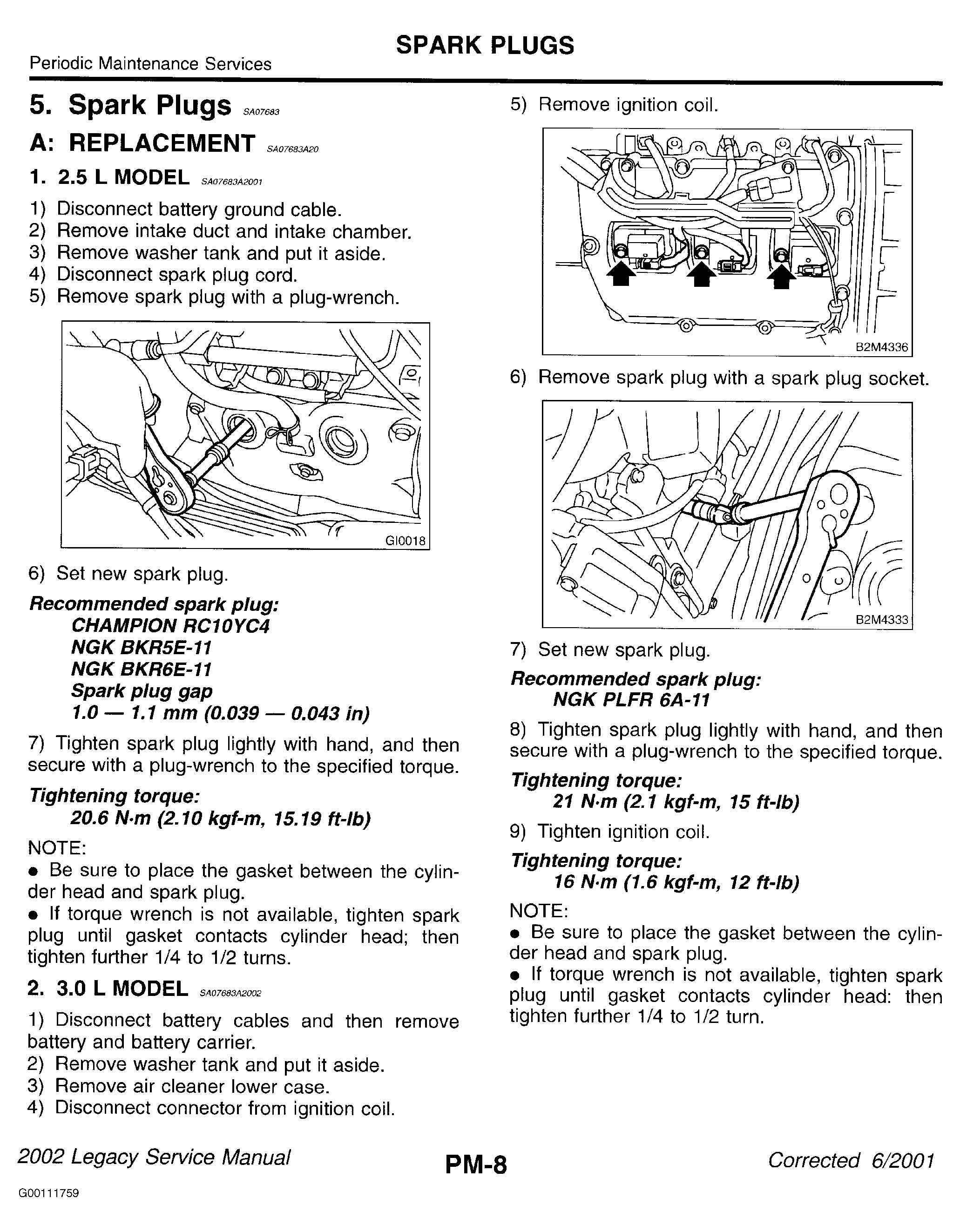

Fig 20: Page 20 of Bulletin

G00111759

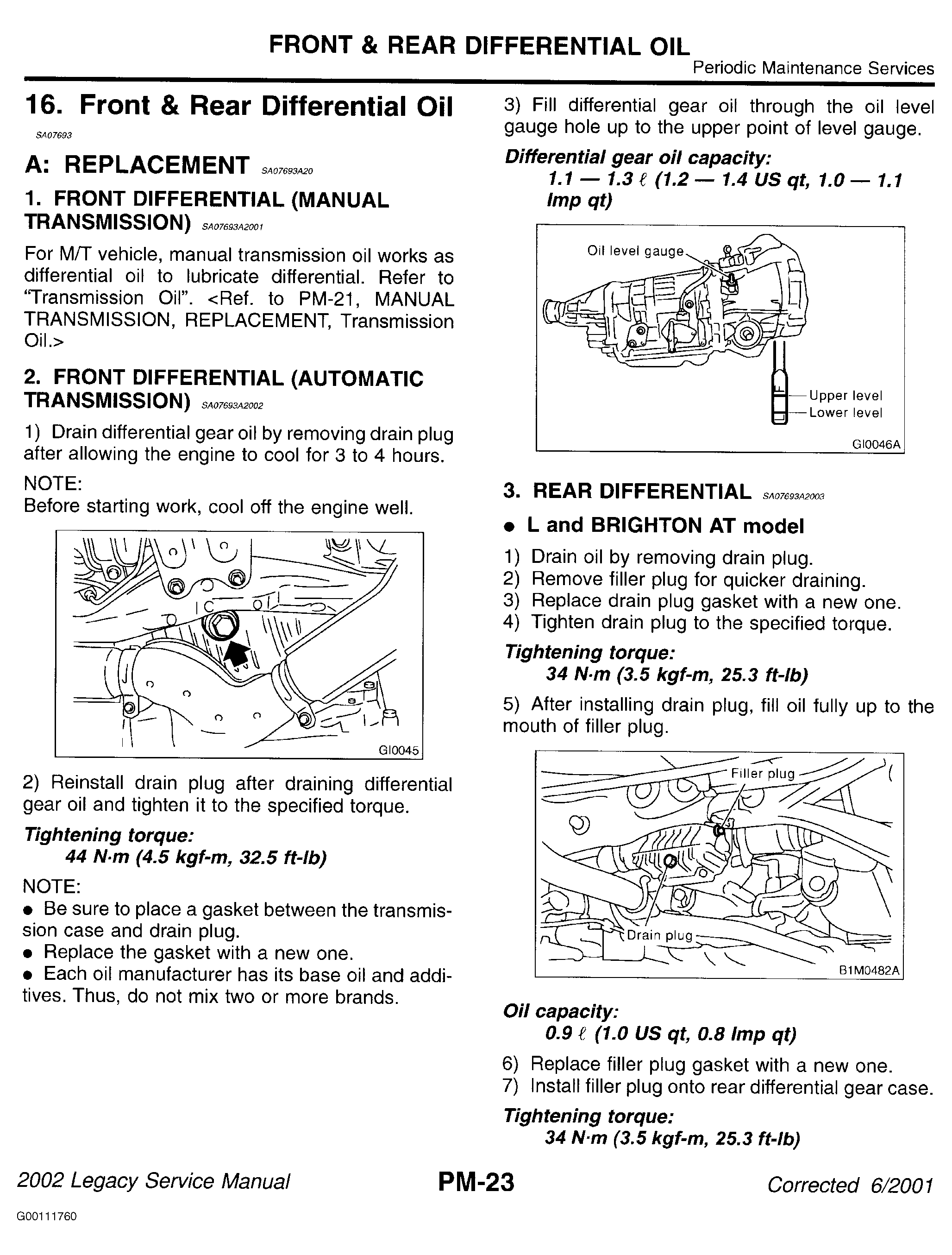

Fig 21: Page 21 of Bulletin

G00111760

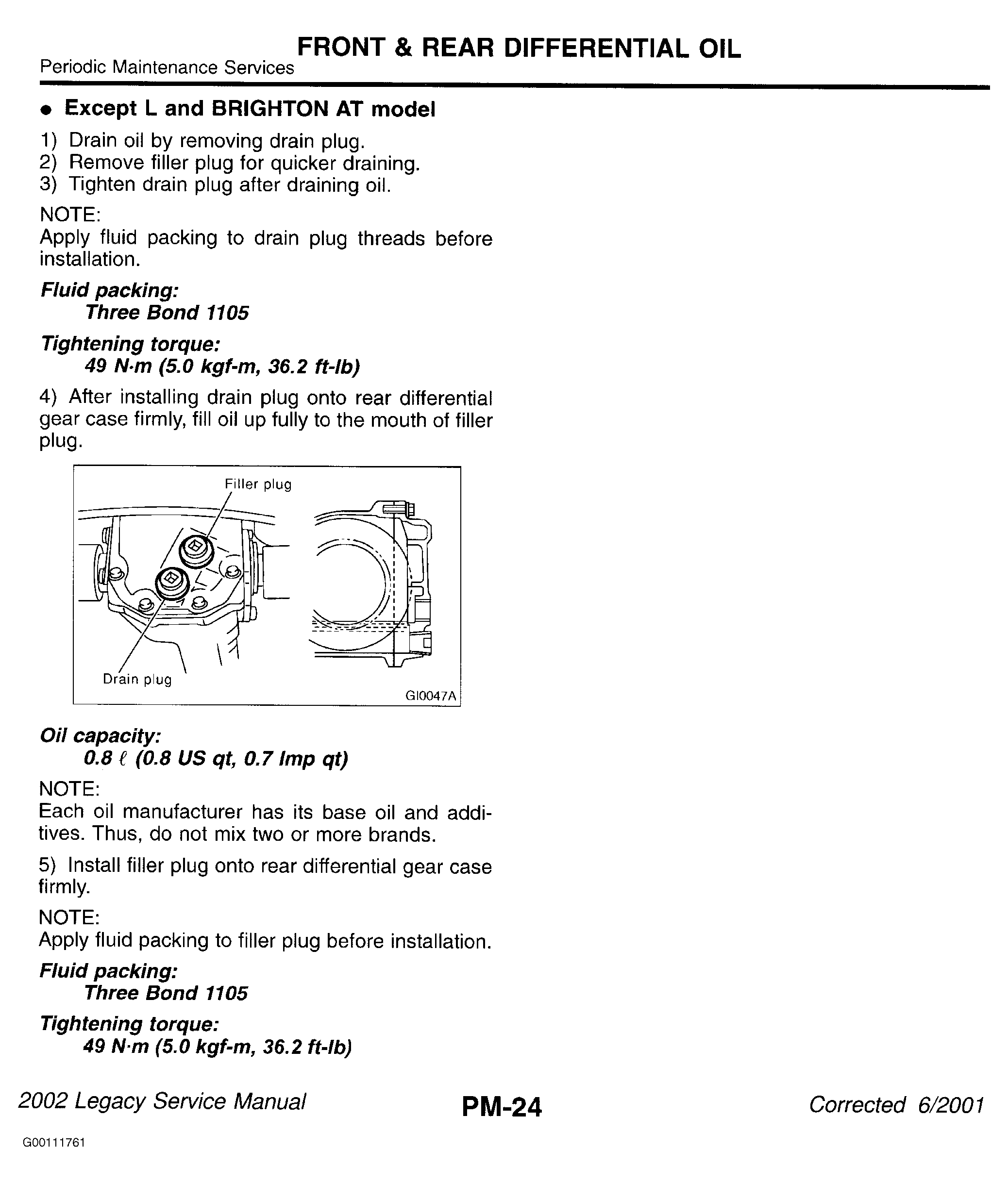

Fig 22: Page 22 of Bulletin

G00111761

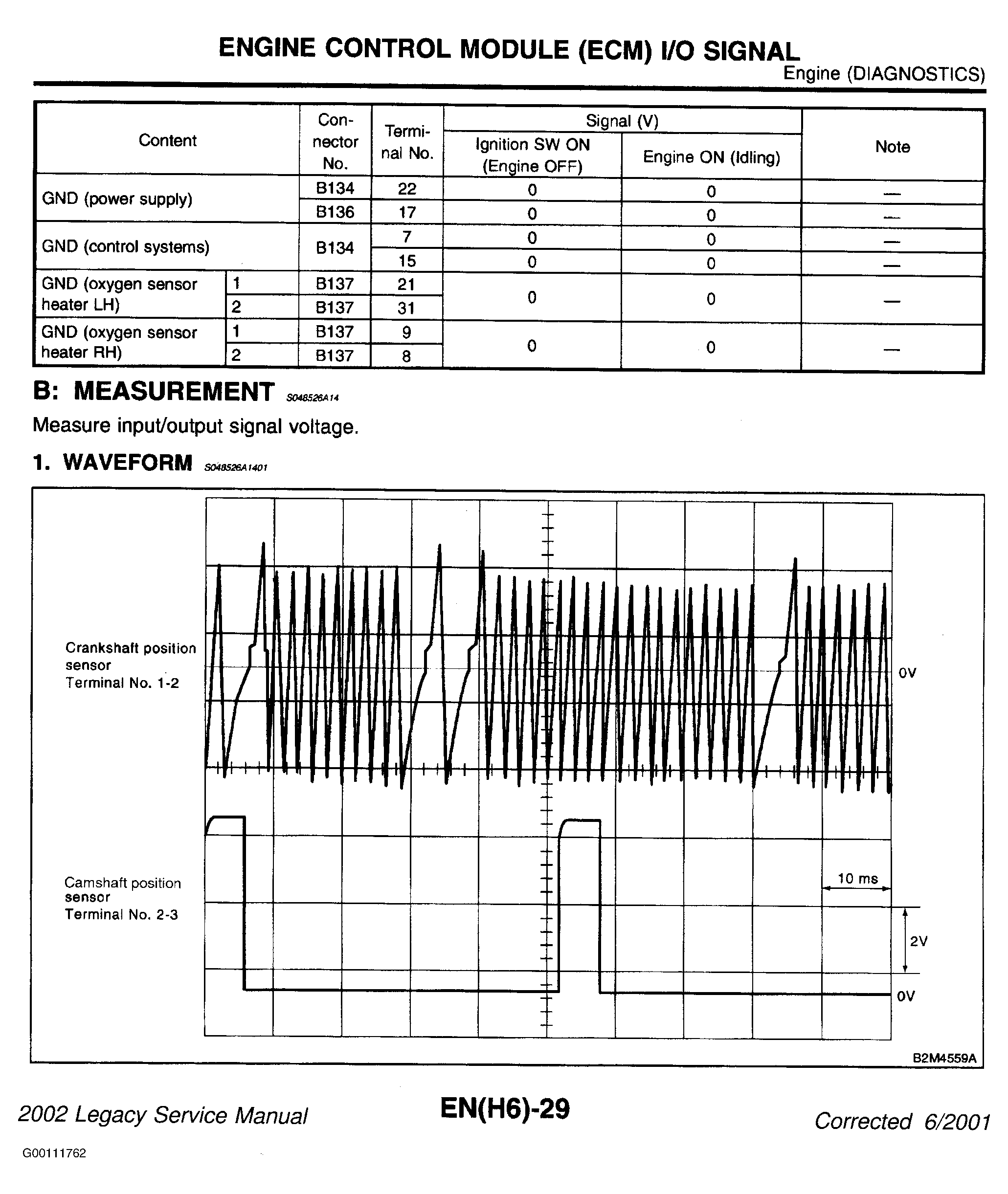

Fig 23: Page 23 of Bulletin

G00111762
