Service Manual Corrections (18-75-04)

Publication date: 2004-03-15
Reference number: 18-75-04

SERVICE MANUAL CORRECTIONS

SERVICE MANUAL CORRECTIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 18-75-04, Date of Issue:  March 15, 2004
SUBARU: 1999~2004MY Subaru Vehicles

INTRODUCTION

Place a REVISED label on the appropriate pages of the noted effected Service Manuals and update the appropriate Service Manual Correction Binder(s) with the following pages:

INTRODUCTION

Year Model Book/Vol# MSA# Section Page Reference
2000 Impreza Sect. 4 MSA5T0013A 2-7 152 [T10Q0]
2000 Impreza Sect. 4 MSA5T0013A 2-7 155 [T10R1]
2000 Impreza Sect. 4 MSA5T0013A 2-7 156 [T10S0]
2000 Impreza Sect. 4 MSA5T0013A 2-7 398 [T11P0]
2000 Impreza Sect. 4 MSA5T0013A 2-7 401 [T11Q1]
2000 Impreza Sect. 4 MSA5T0013A 2-7 402 [T11R0]
2001 Impreza Sect. 3 MSA5T0112A --EN-140 -
2001 Impreza Sect. 3 MSA5T0112A - EN-142 -
2001 Impreza Sect. 3 MSA5T0112A - EN-144 -
2001 Impreza Sect. 3 MSA5T0112A - EN-348 -
2001 Impreza Sect. 3 MSA5T0112A - EN-350 -
2001 Impreza Sect. 3 MSA5T0112A - EN-352 -
2001 Impreza Sect. 4 MSA5T0113A - MT-65 -
2001 Impreza Sect. 4 MSA5T0113A - MT-66 -
2001 Legacy Sect. 4 MSA5T0104A - MT-65 -
2001 Legacy Sect. 4 MSA5T0104A - MT-66 -
2002 Forester Sect. 5 MSA5T0224A - MT-78 -
2002 Forester Sect. 5 MSA5T0224A - MT-79 -
2002 Impreza Sect. 4 MSA5T0213A - MT-82 -
2002 Legacy Sect. 4 MSA5T0204A - MT-80 -
2002 Legacy Sect. 4 MSA5T0204A - MT-81 -
2003 Impreza Sect. 4 MSA5T0313A - MT-84 -
2003 Legacy Sect. 4 MSA5T0304A - MT-79 -
2004 Legacy Sect. 6 MSA5T0405A - 5MT-84 -
2004 Legacy Sect. 6 MSA5T0405A - 5MT-85 -
2004 Impreza Sect. 6 MSA5T0415A - 5MT-81 -

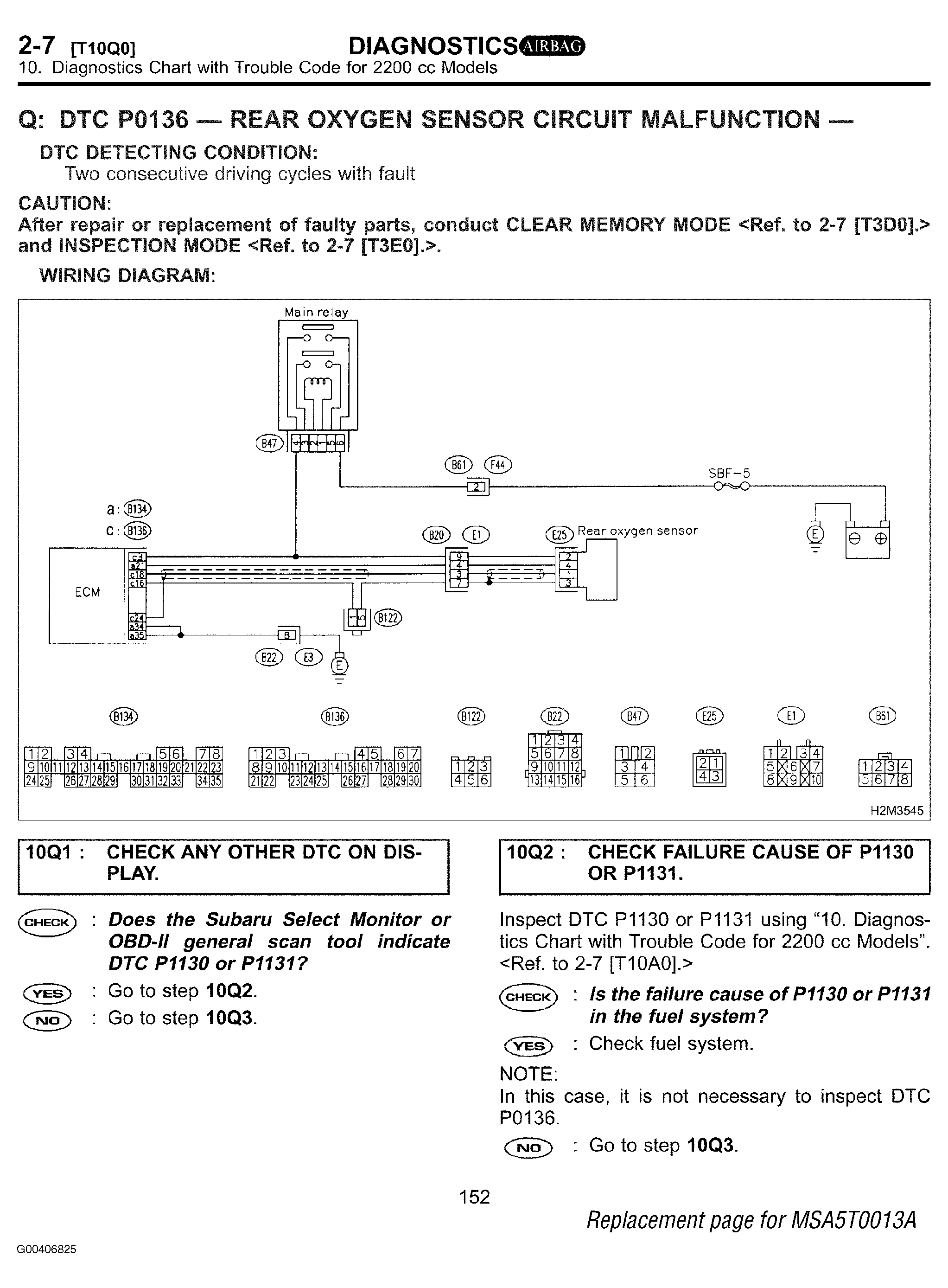

Fig 1: Replacement Page For MSA5T0013A, Section 2-7, Page 152
G00406825

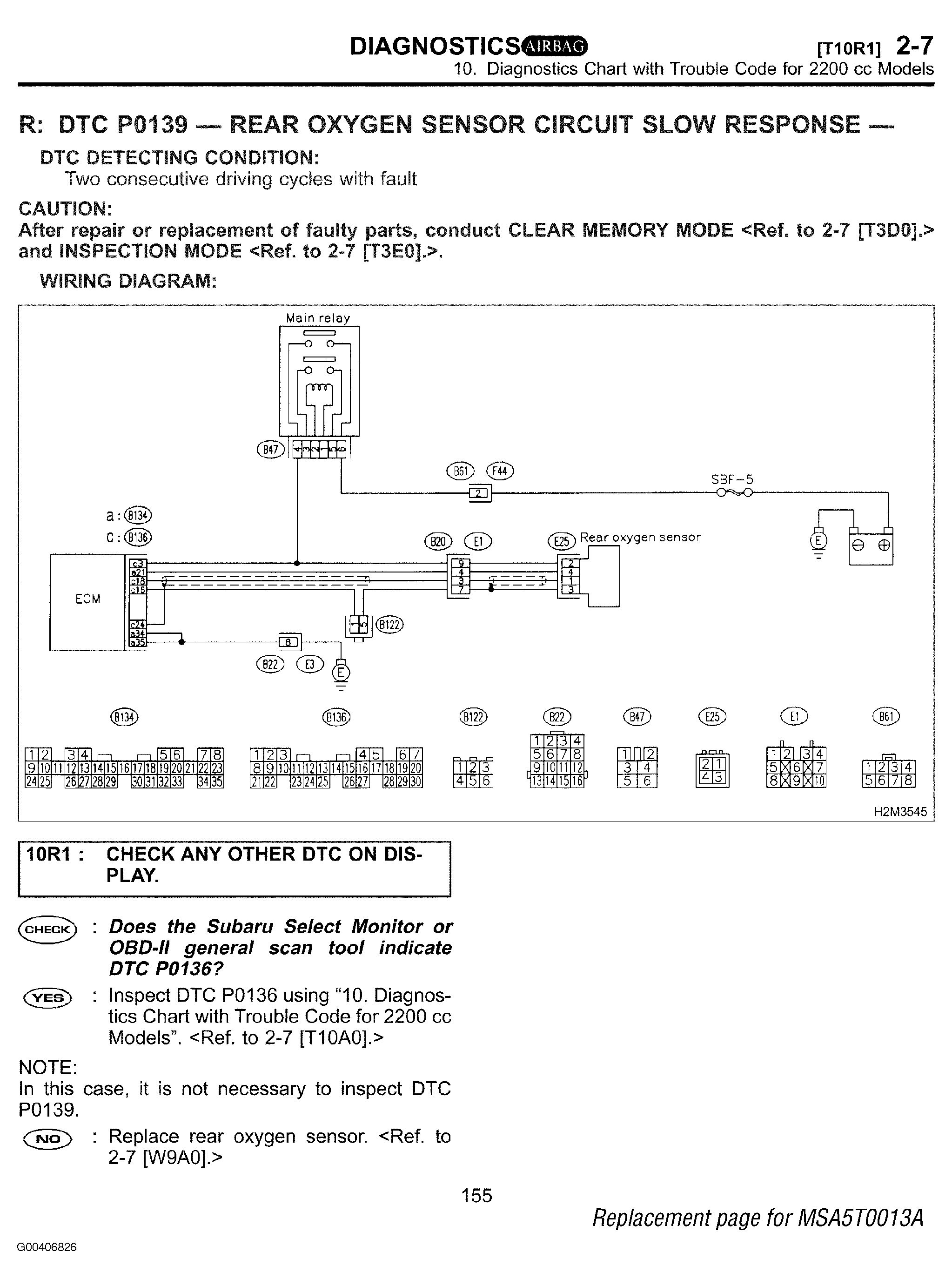

Fig 2: Replacement Page For MSA5T0013A, Section 2-7, Page 155
G00406826

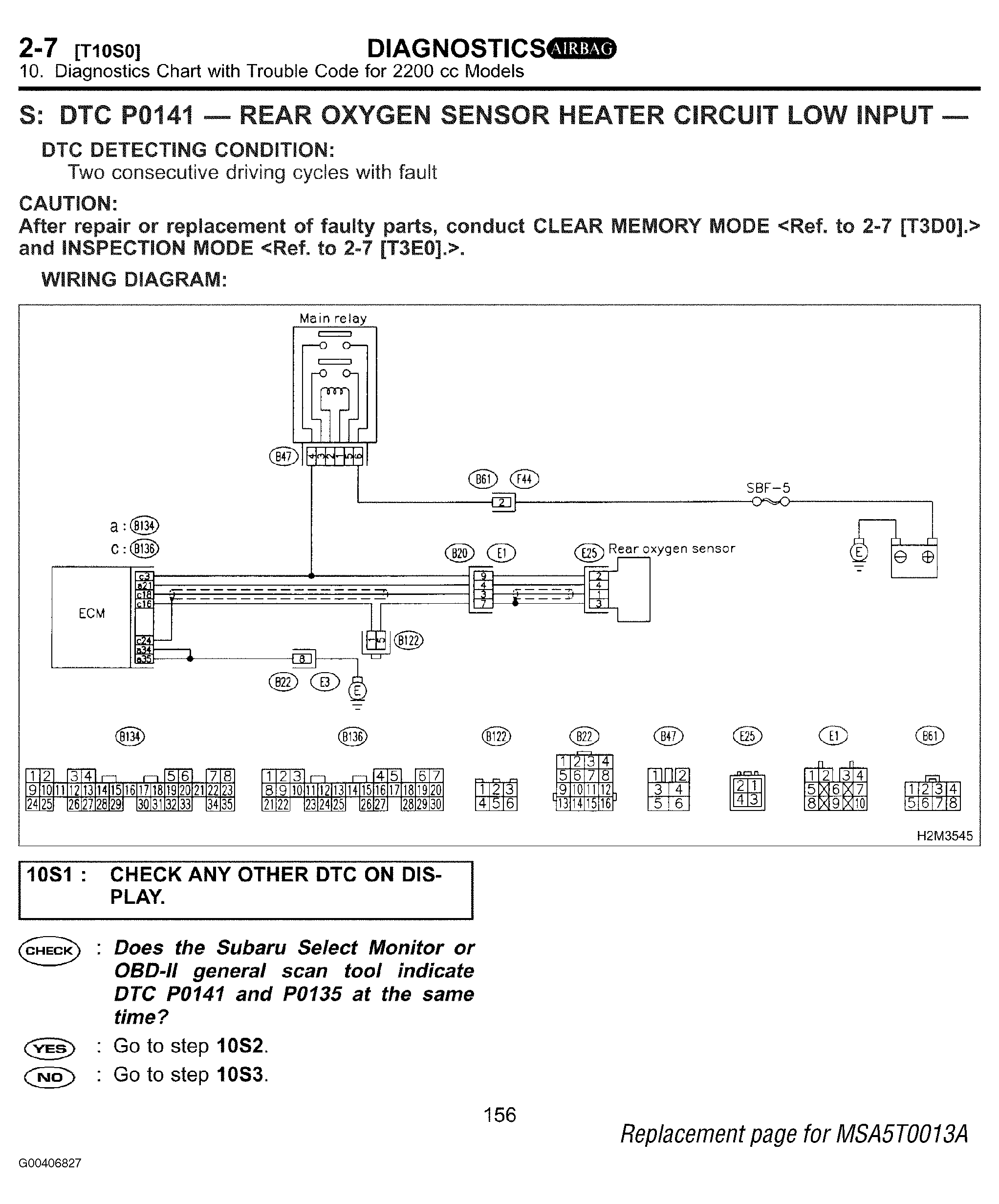

Fig 3: Replacement Page For MSA5T0013A, Section 2-7, Page 156
G00406827

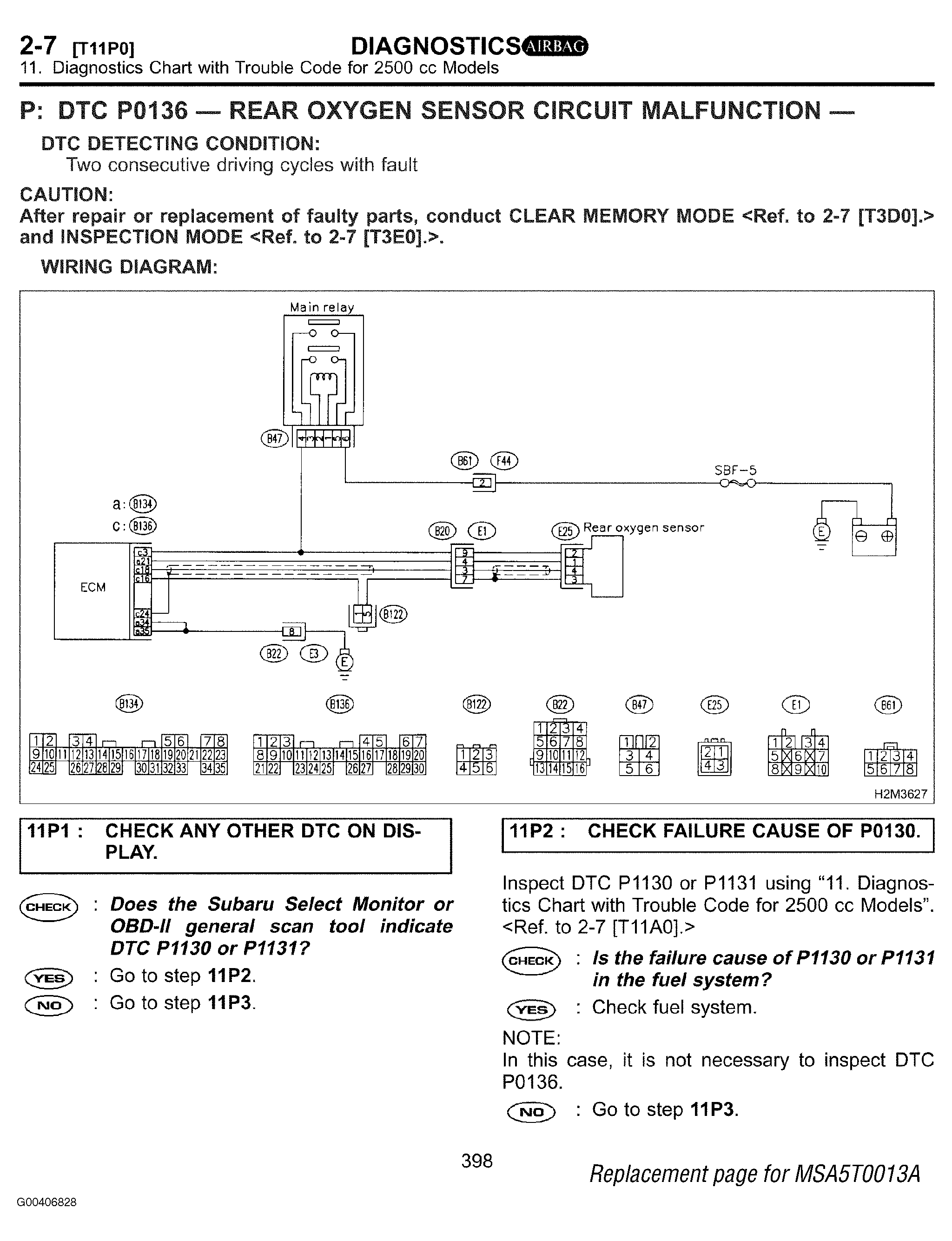

Fig 4: Replacement Page For MSA5T0013A, Section 2-7, Page 398
G00406828
Fig 5: Replacement Page For MSA5T0013A, Section 2-7, Page 401
G00406829

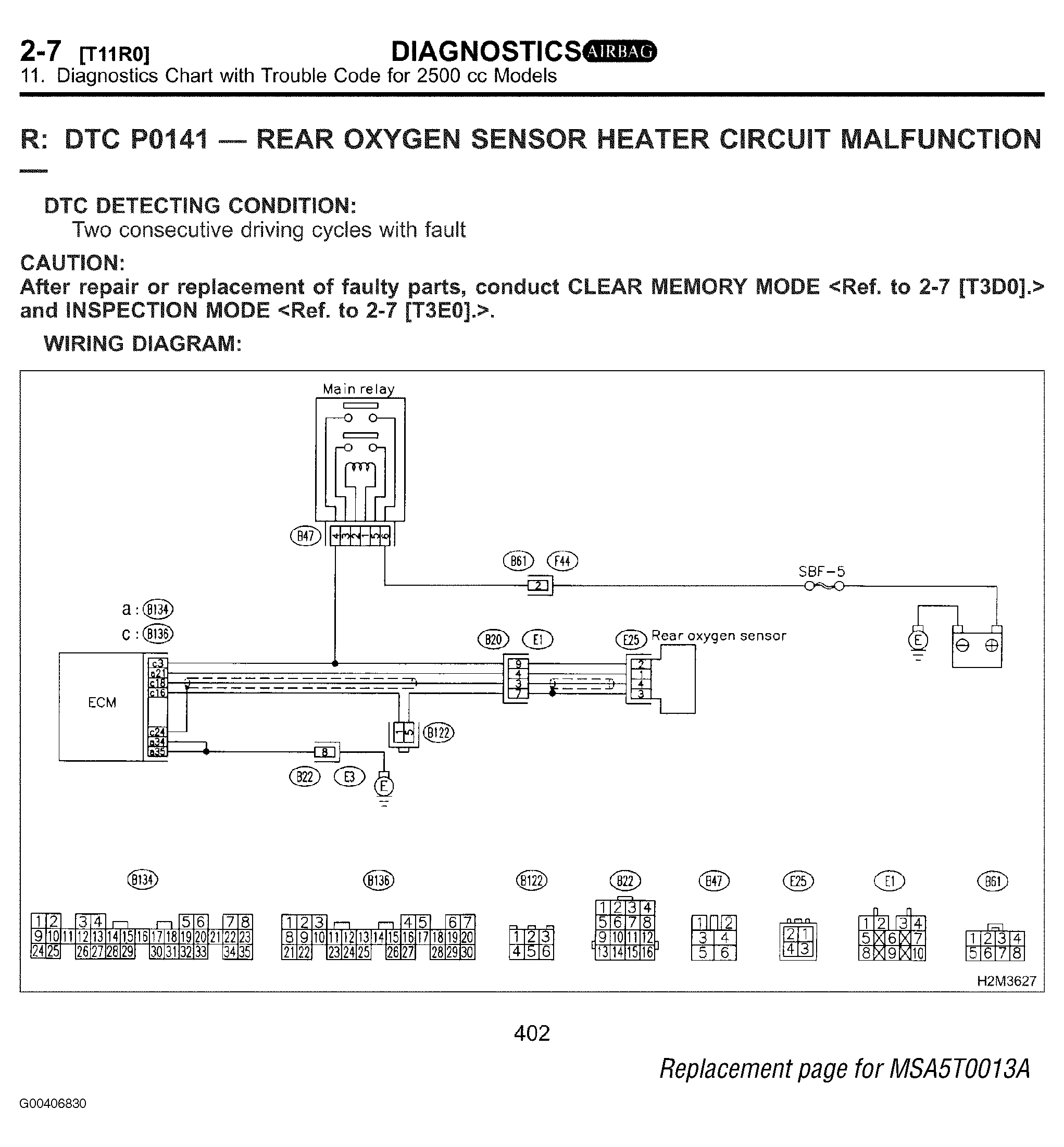

Fig 6: Replacement Page For MSA5T0013A, Section 2-7, Page 402
G00406830

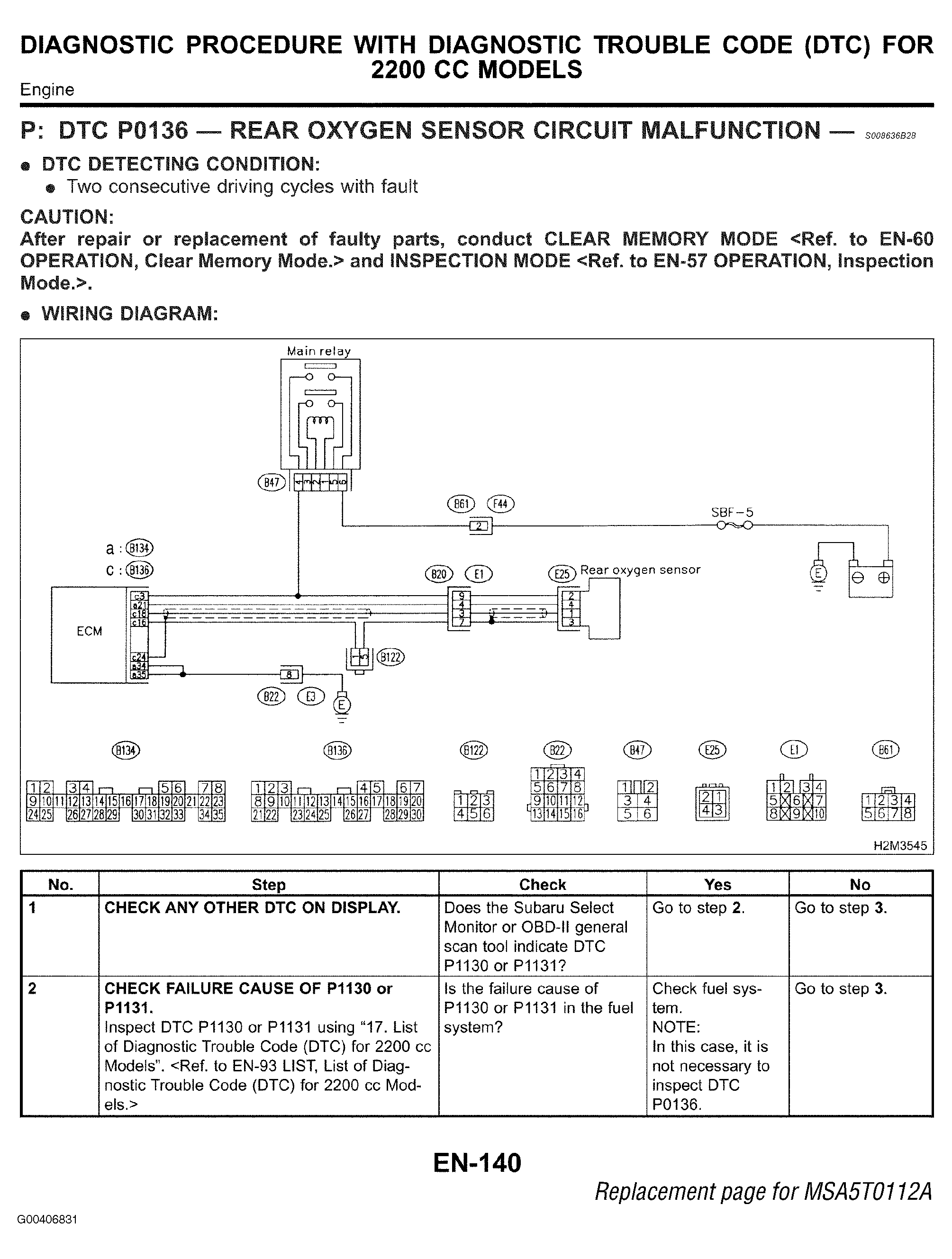

Fig 7: Replacement Page For MSA5T0112A, Page EN-140
G00406831

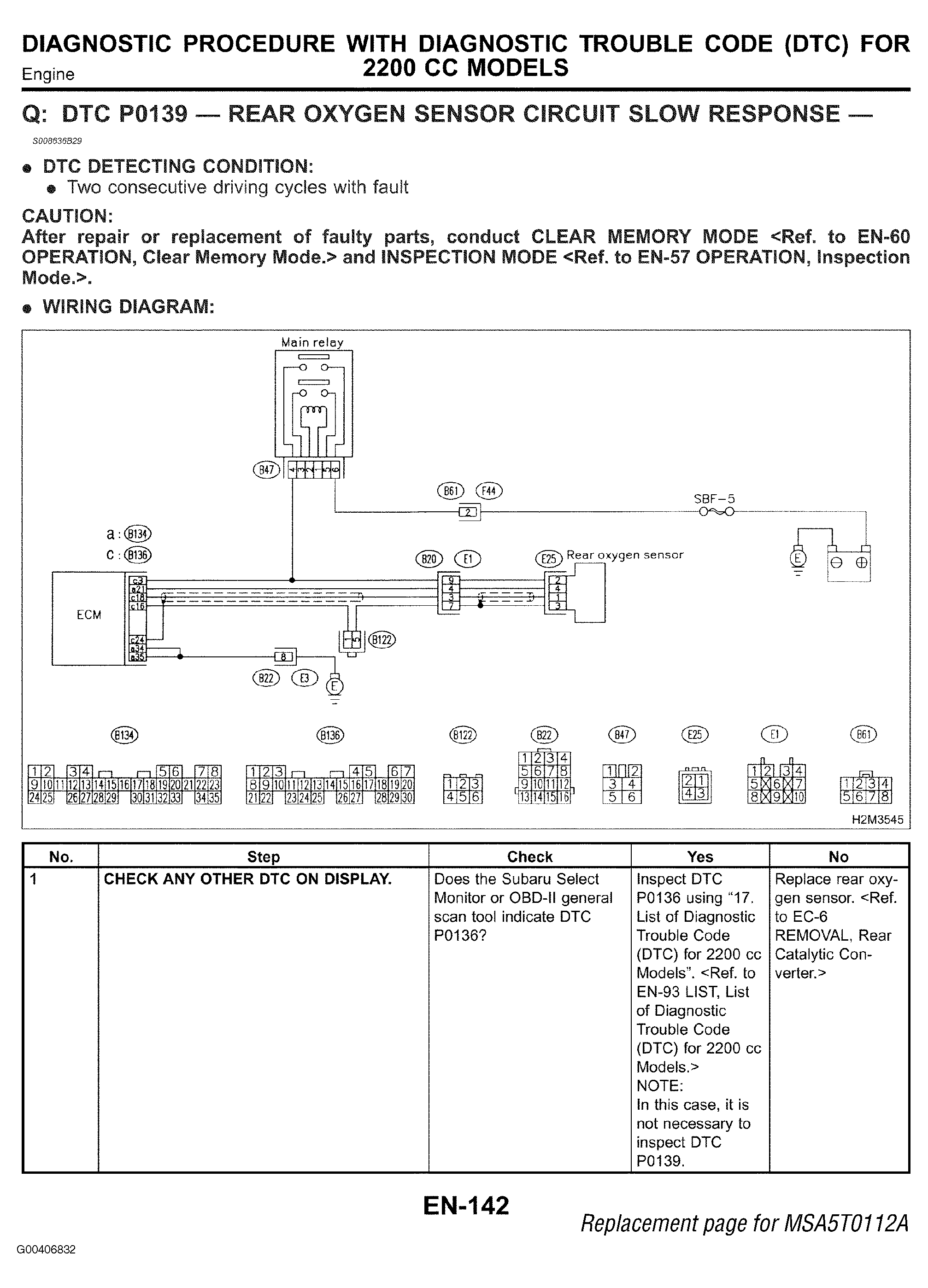

Fig 8: Replacement Page For MSA5T0112A, Page EN-142
G00406832

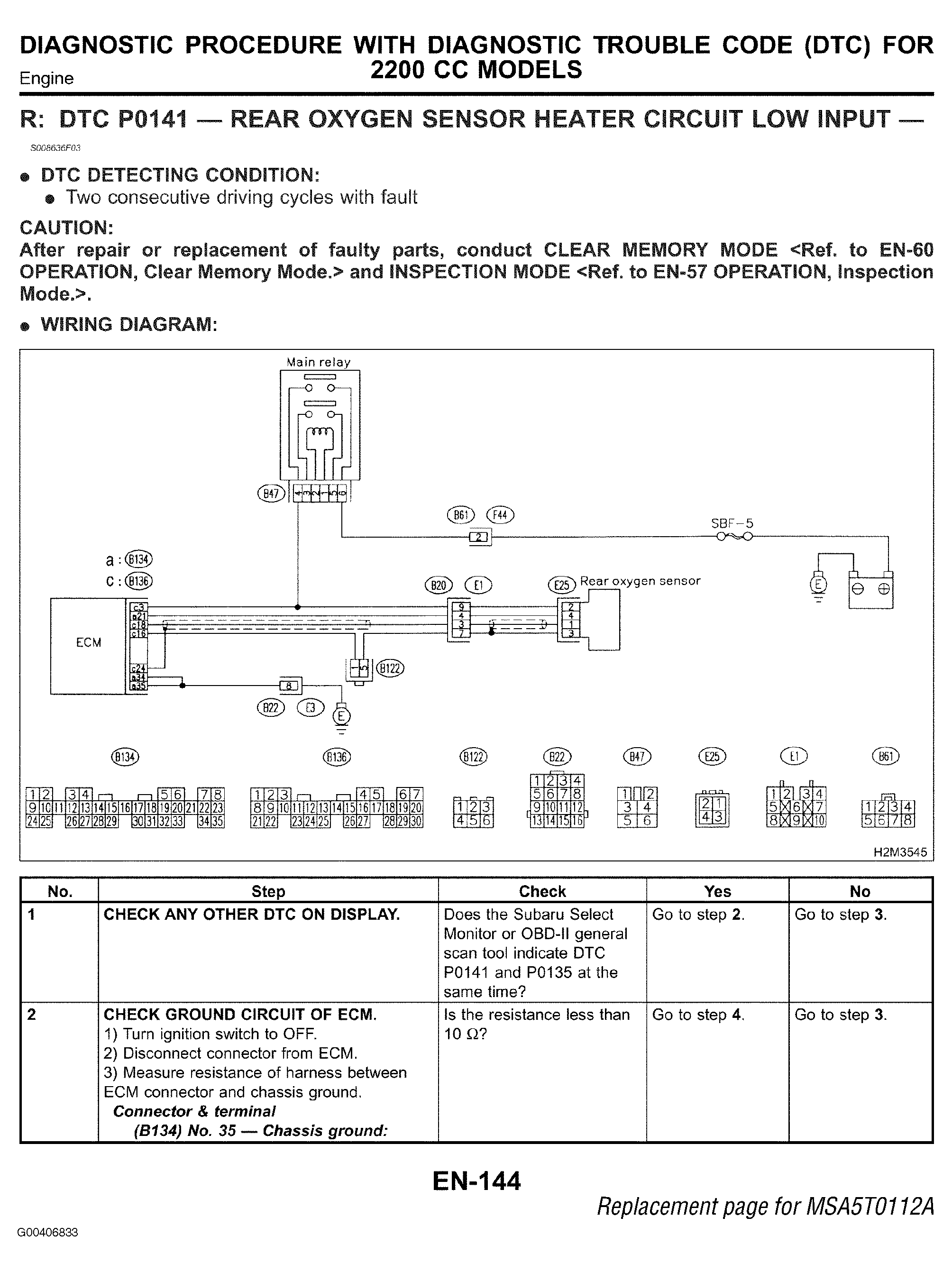

Fig 9: Replacement Page For MSA5T0112A, Page EN-144
G00406833

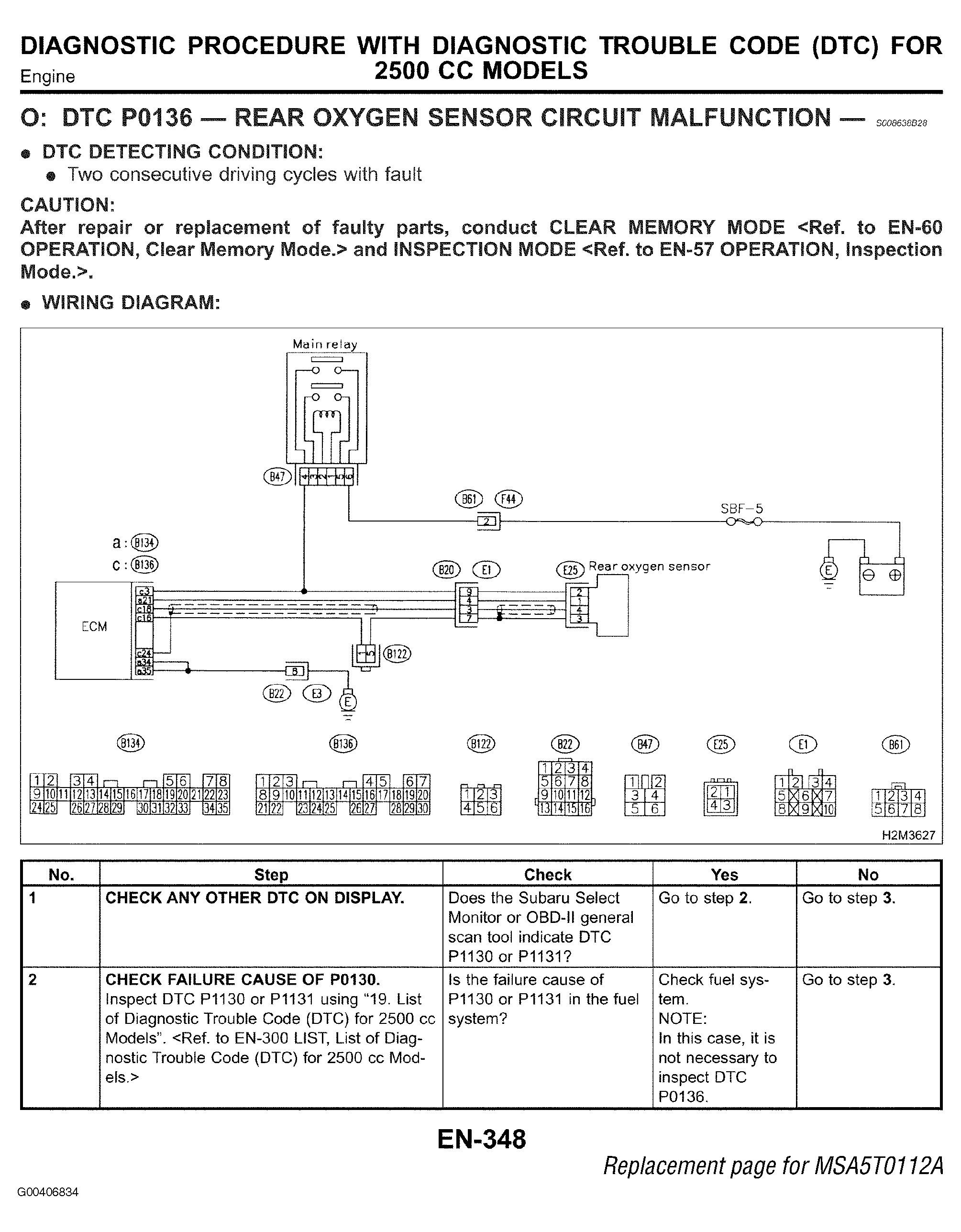

Fig 10: Replacement Page For MSA5T0112A, Page EN-348
G00406834

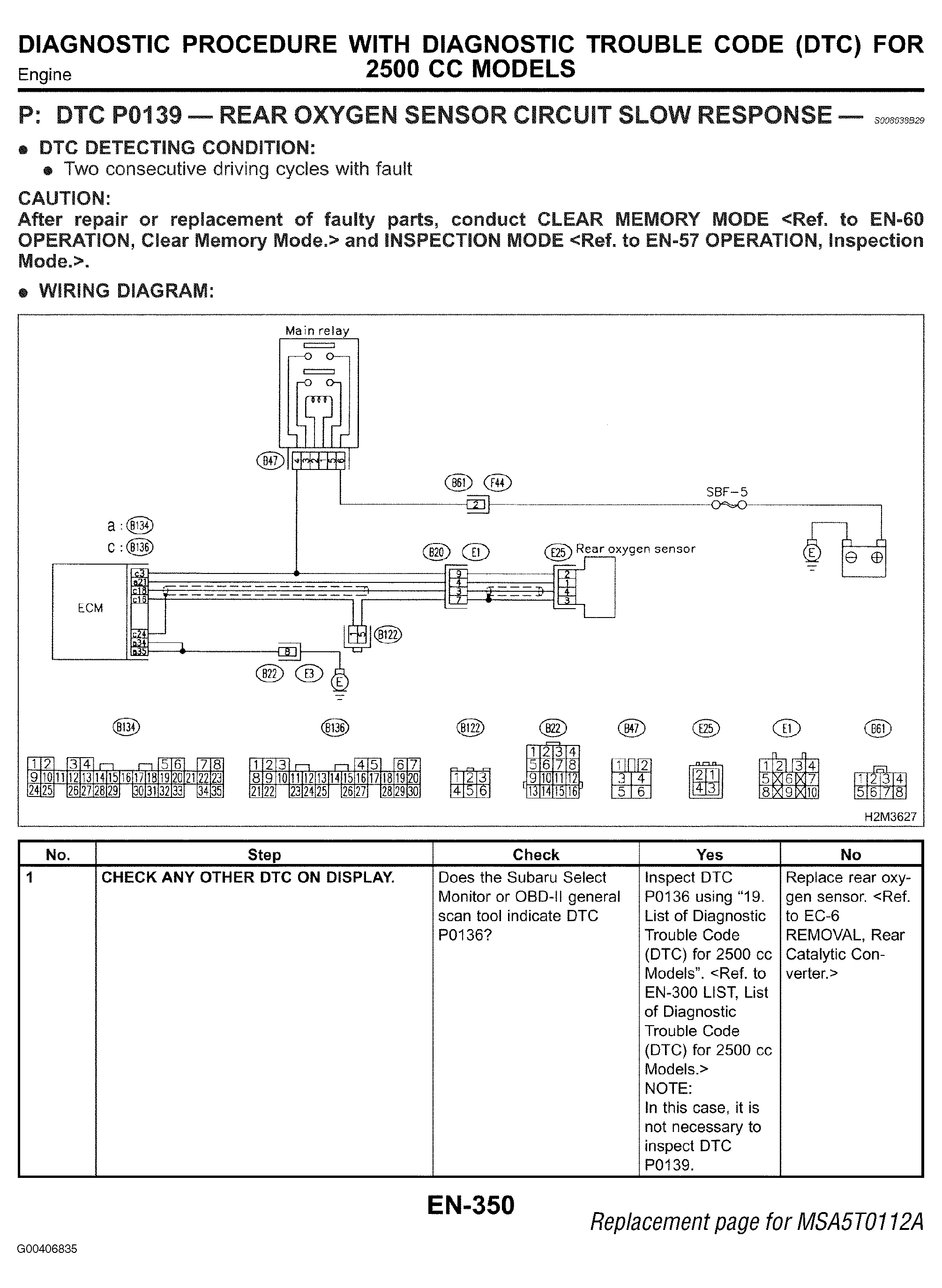

Fig 11: Replacement Page For MSA5T0112A, Page EN-350
G00406835

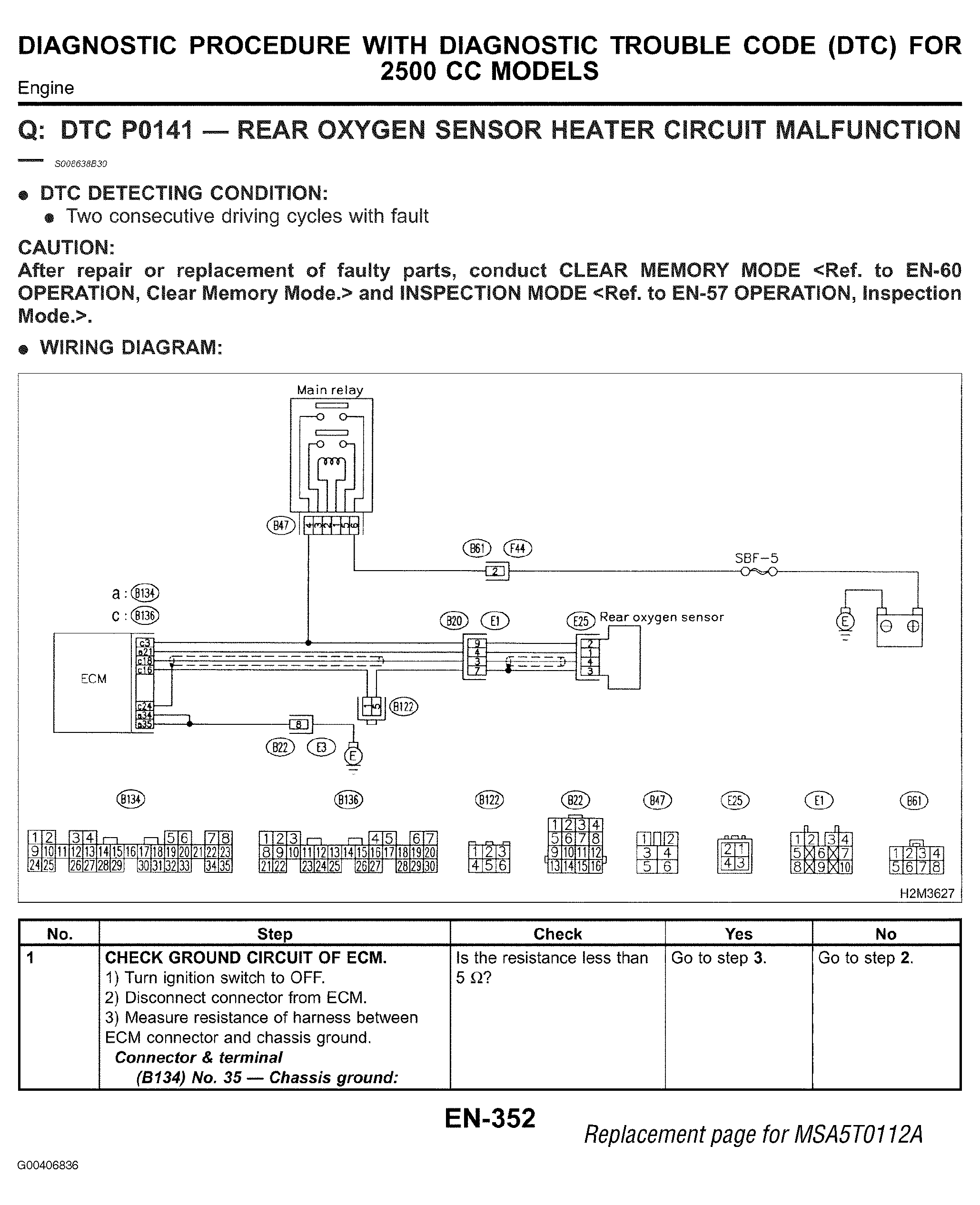

Fig 12: Replacement Page For MSA5T0112A, Page EN-352
G00406836

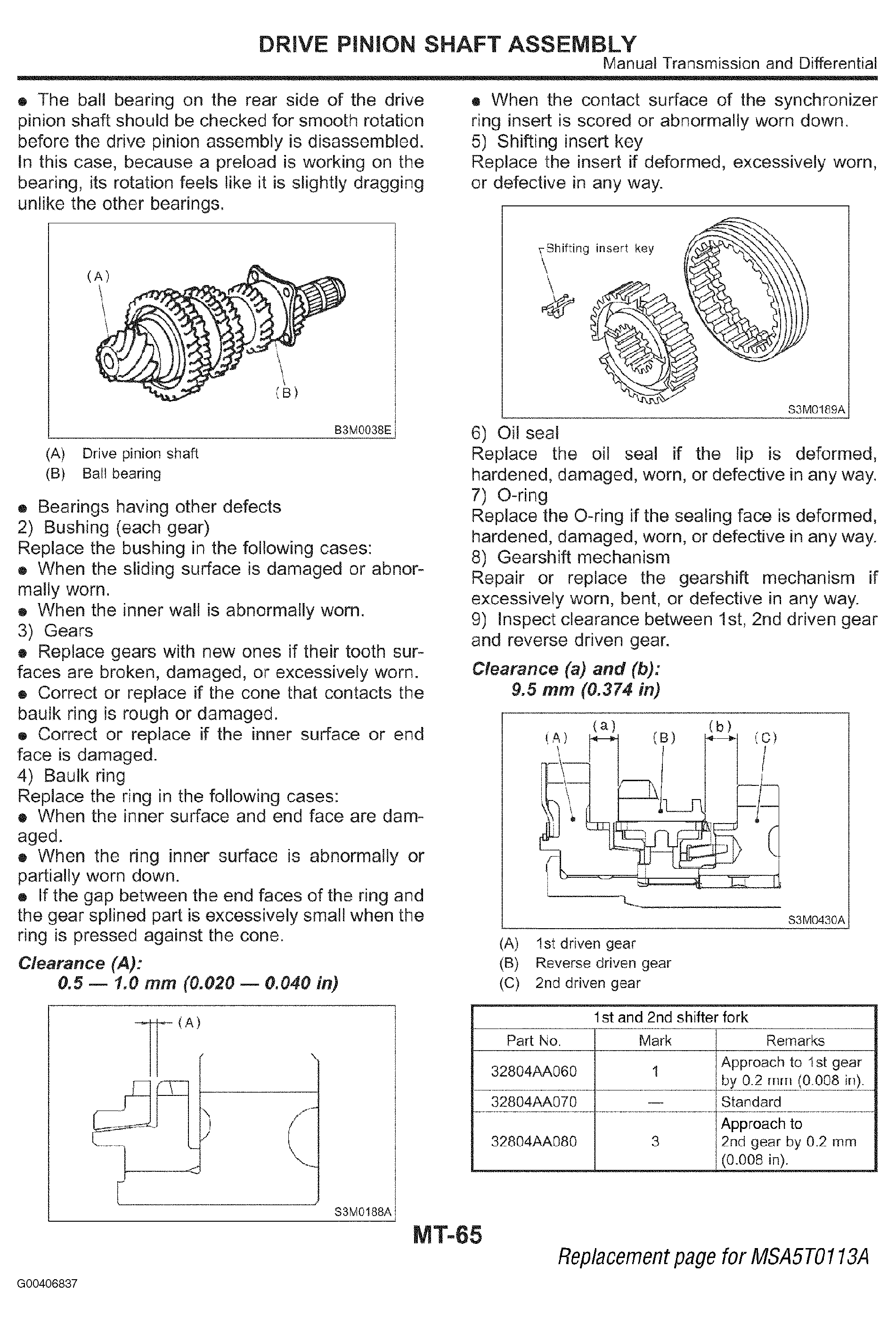

Fig 13: Replacement Page For MSA5T0113A, Page MT-65
G00406837

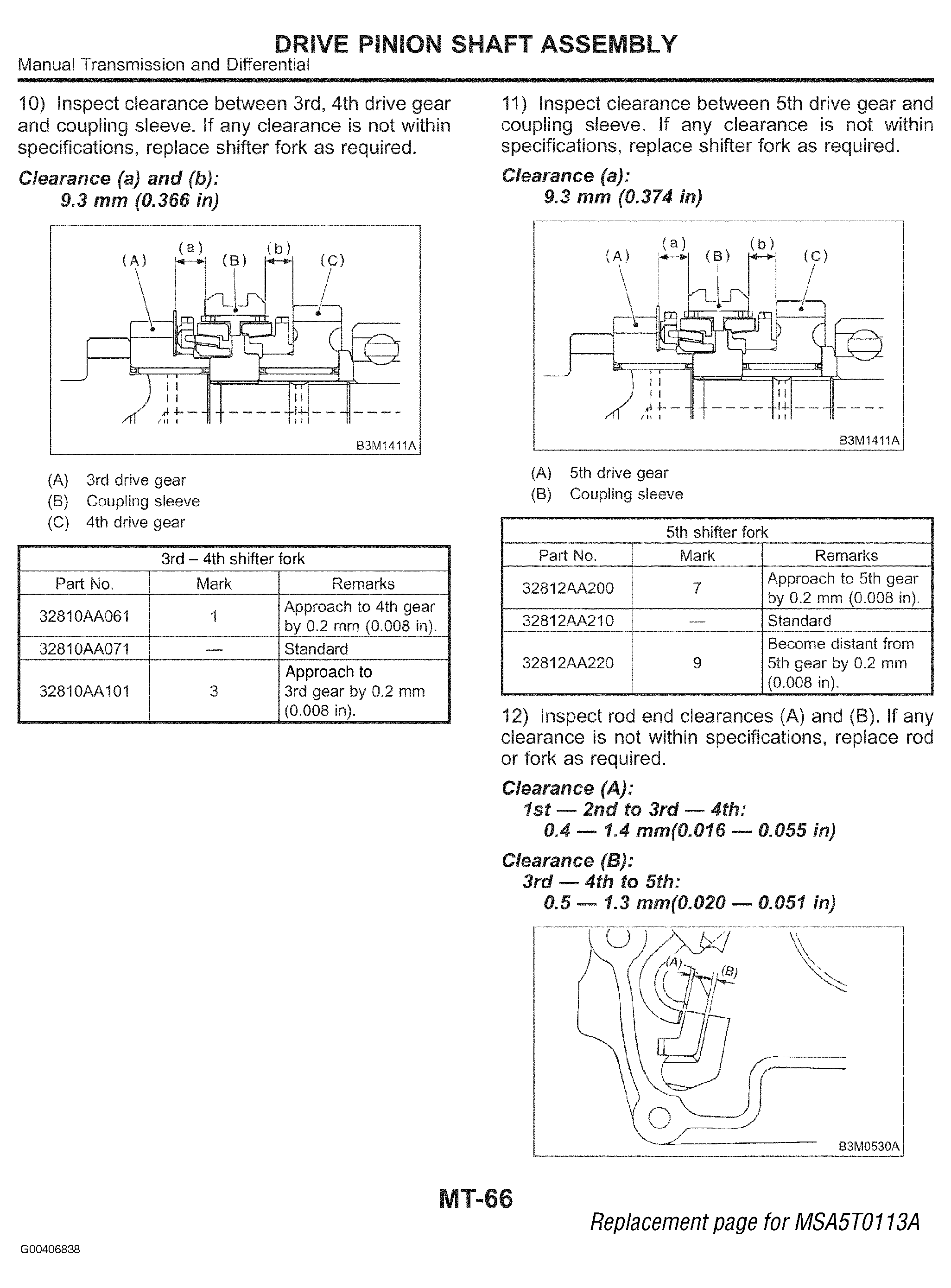

Fig 14: Replacement Page For MSA5T0113A, Page MT-66
G00406838

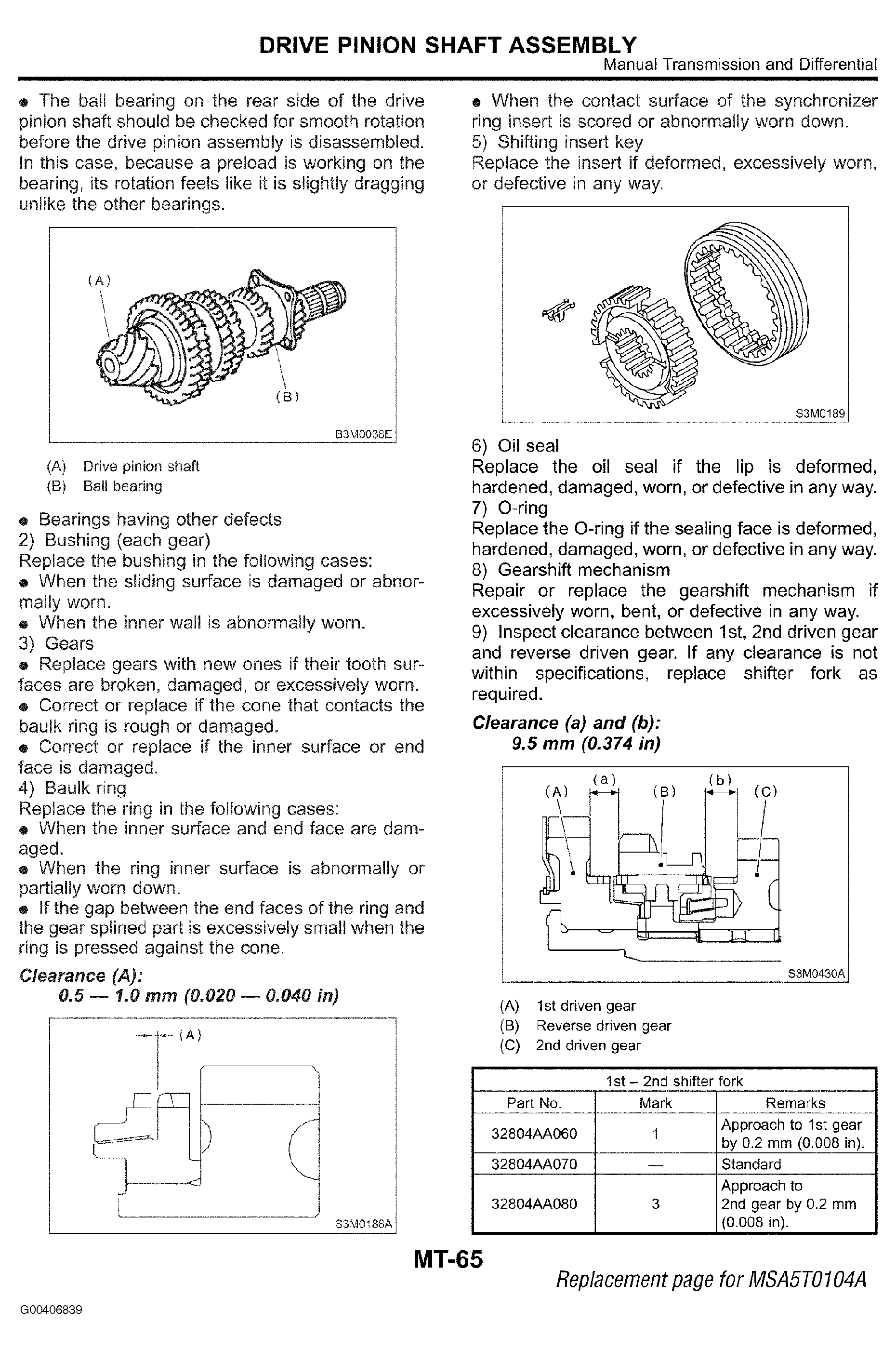

Fig 15: Replacement Page For MSA5T0104A, Page MT-65
G00406839

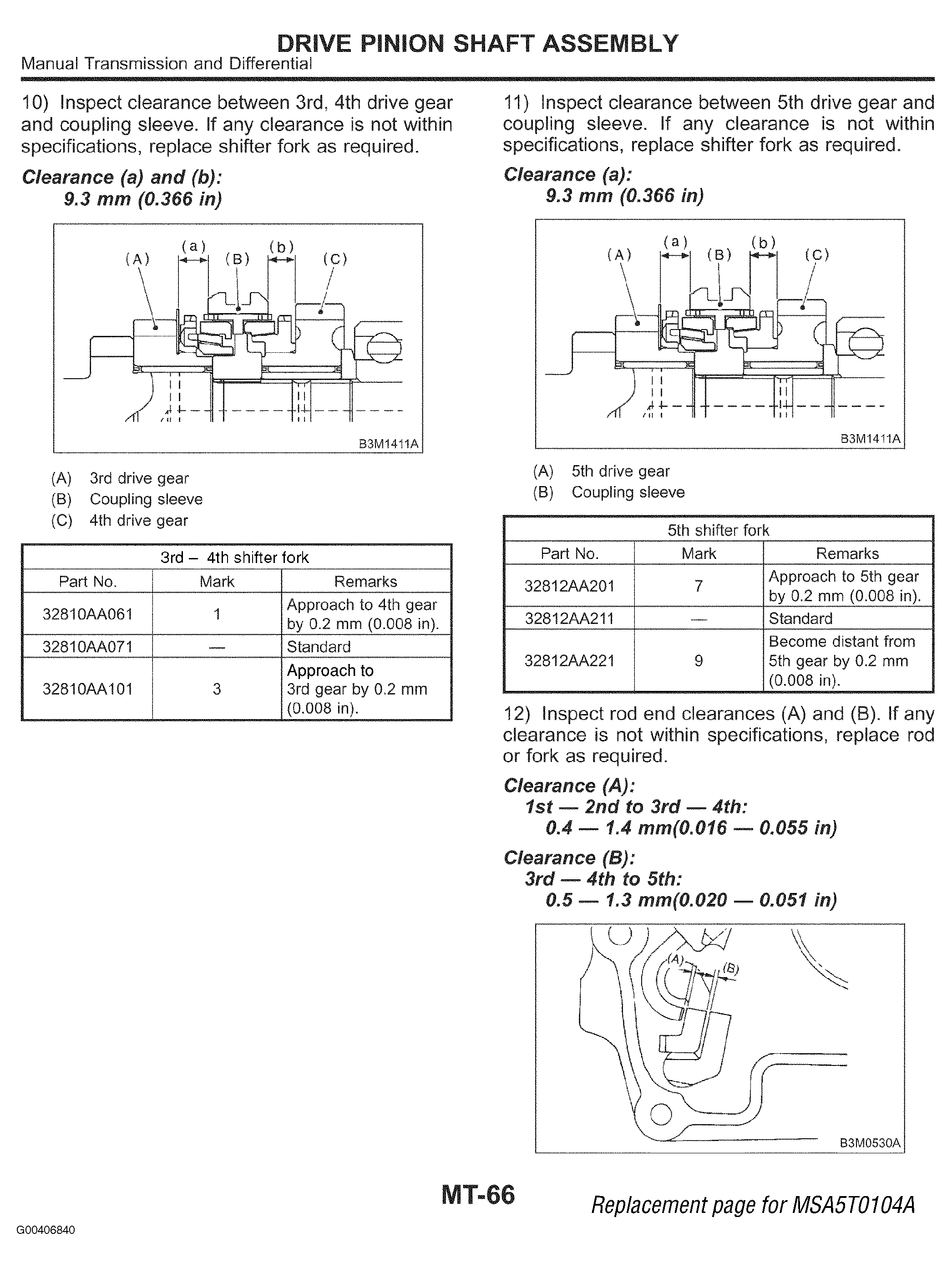

Fig 16: Replacement Page For MSA5T0104A, Page MT-66
G00406840

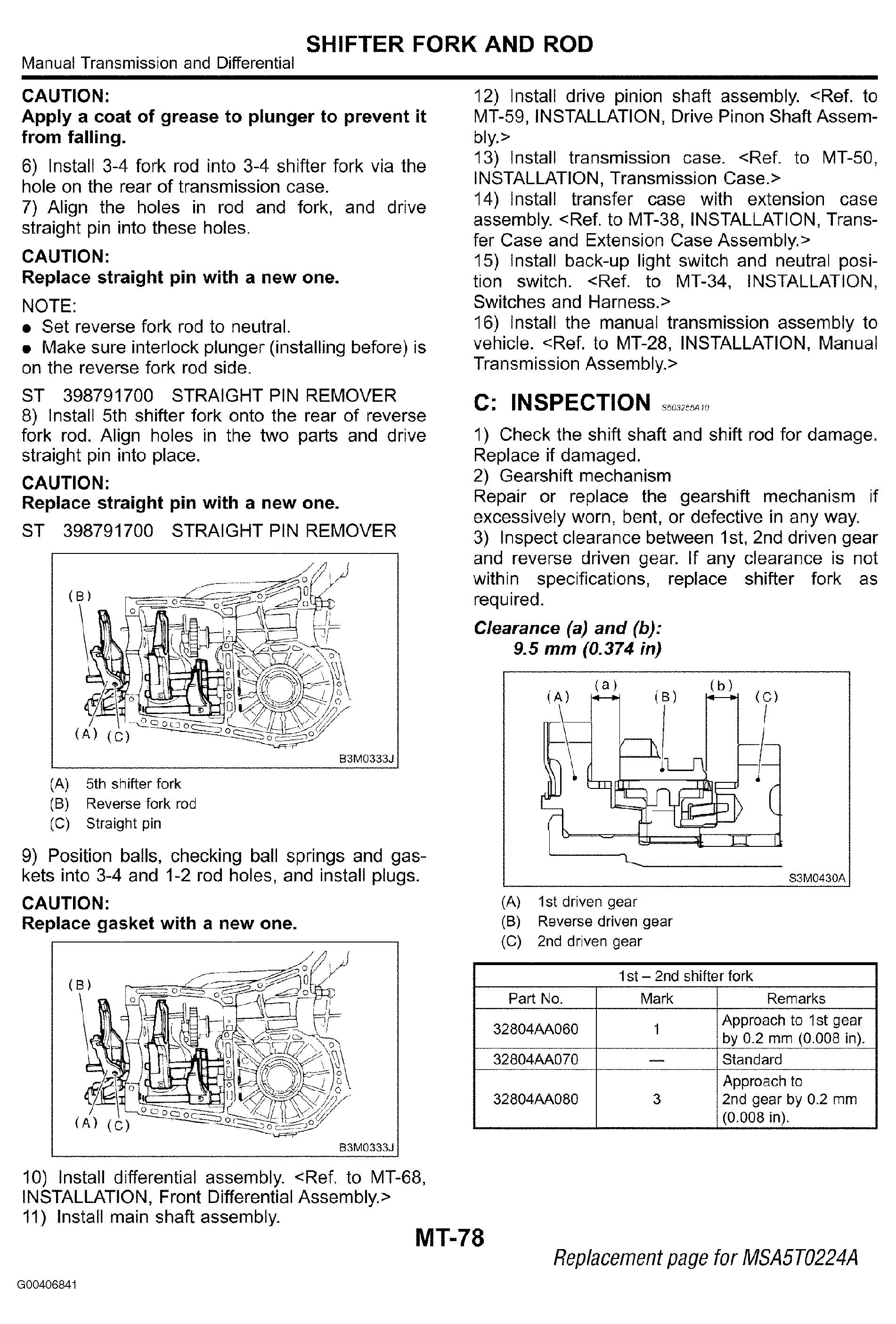

Fig 17: Replacement Page For MSA5T0224A, Page MT-78
G00406841

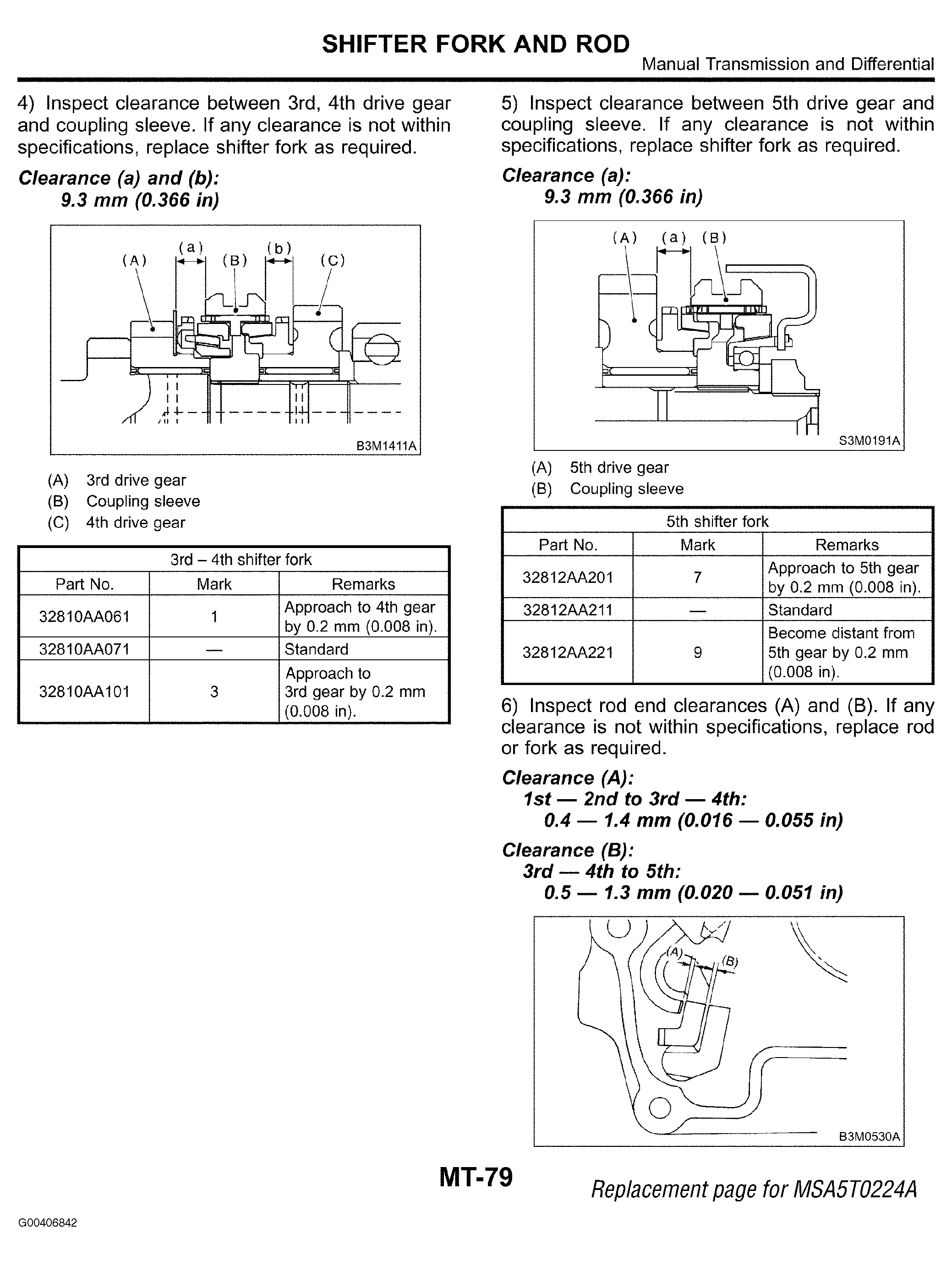

Fig 18: Replacement Page For MSA5T0224A, Page MT-79
G00406842

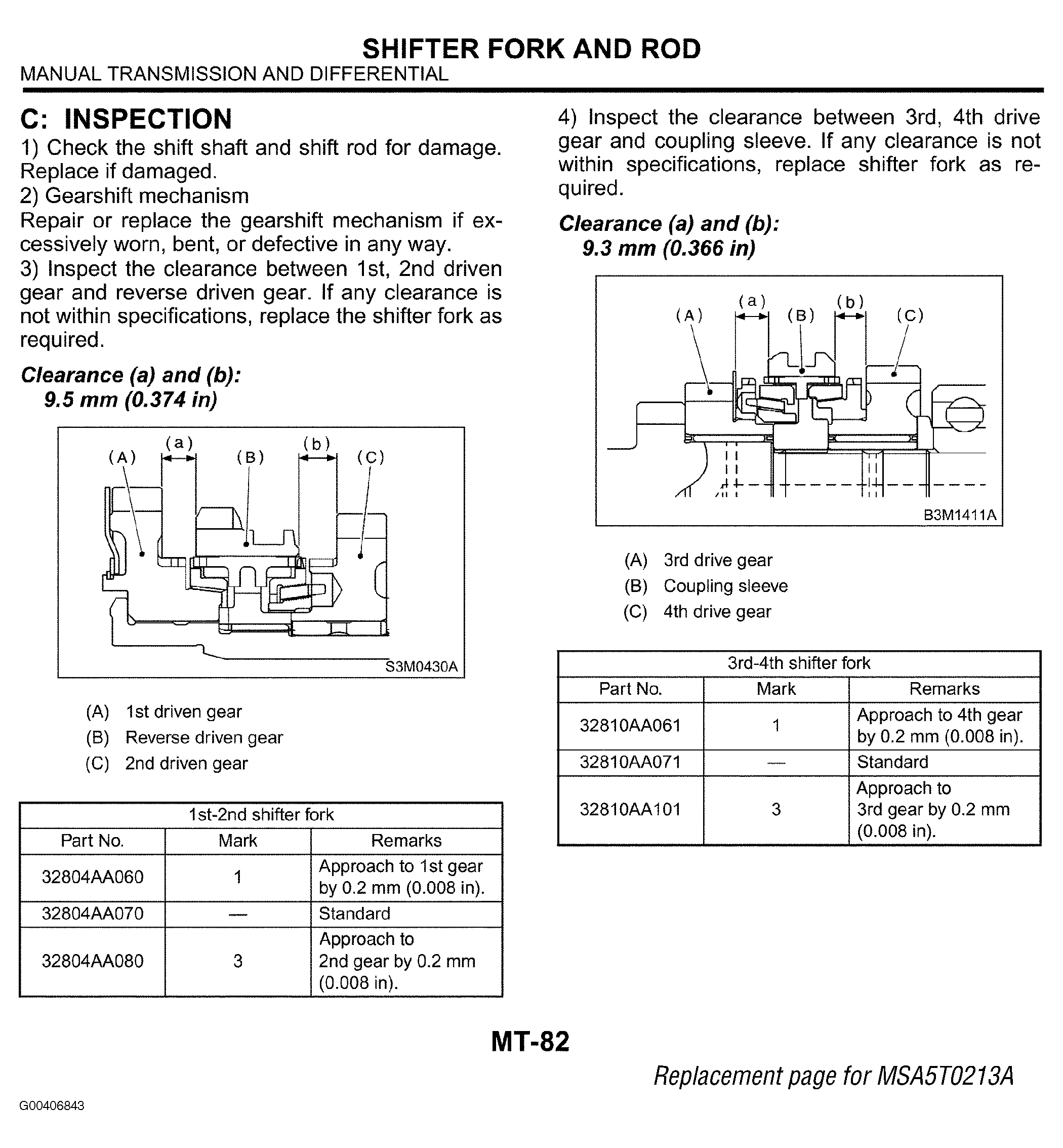

Fig 19: Replacement Page For MSA5T0213A, Page MT-82
G00406843

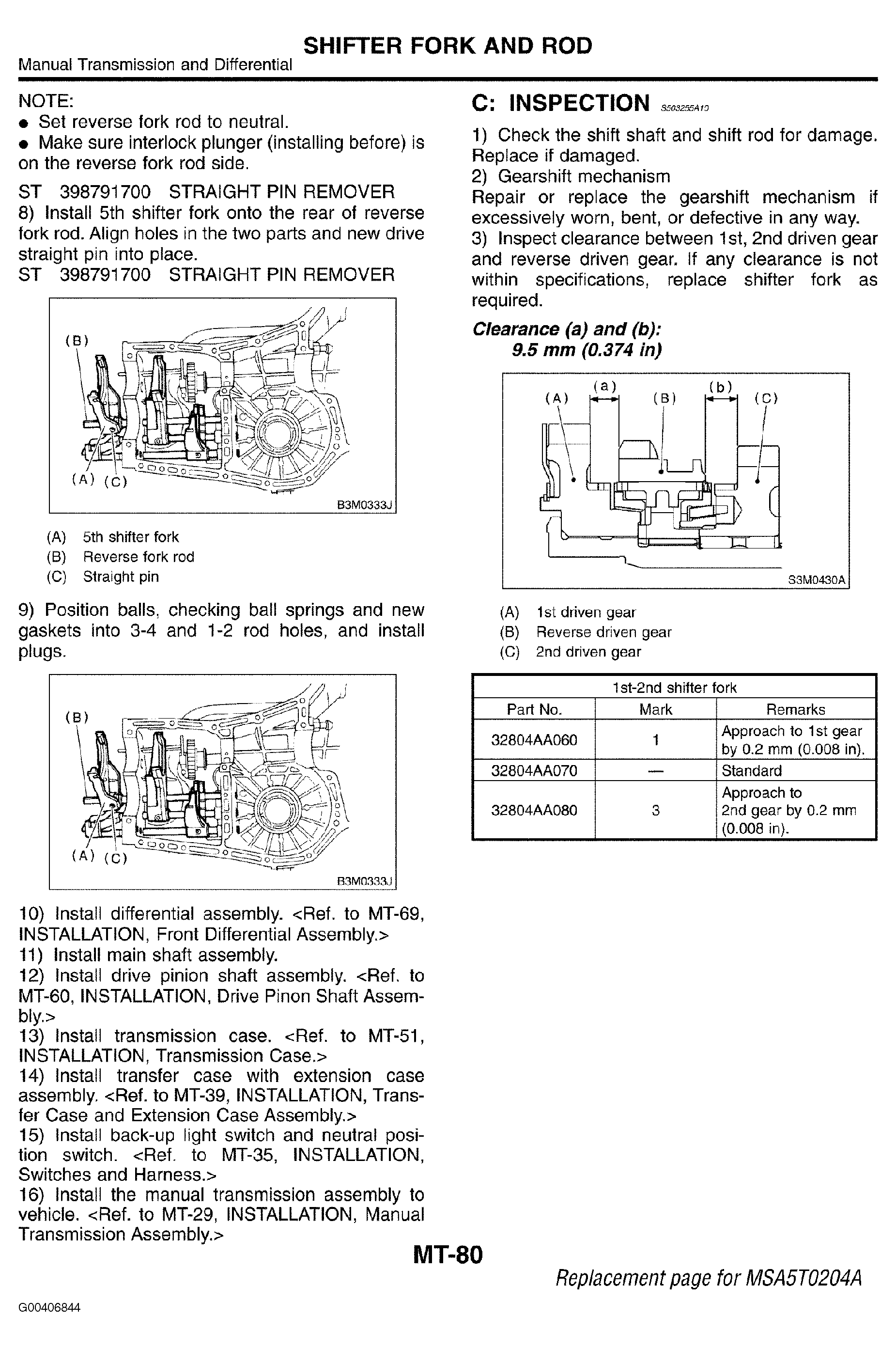

Fig 20: Replacement Page For MSA5T0204A, Page MT-80
G00406844

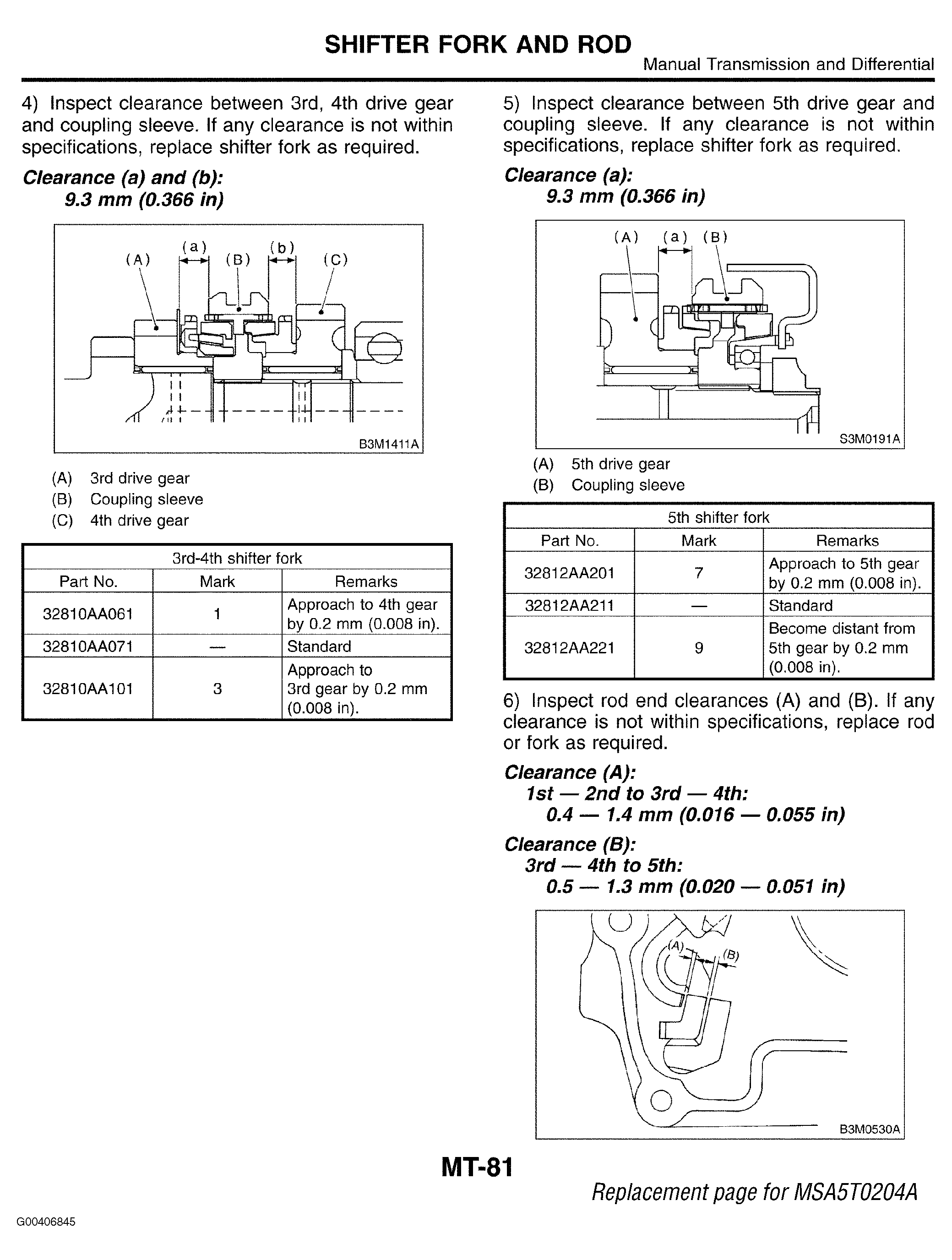

Fig 21: Replacement Page For MSA5T0204A, Page MT-81
G00406845

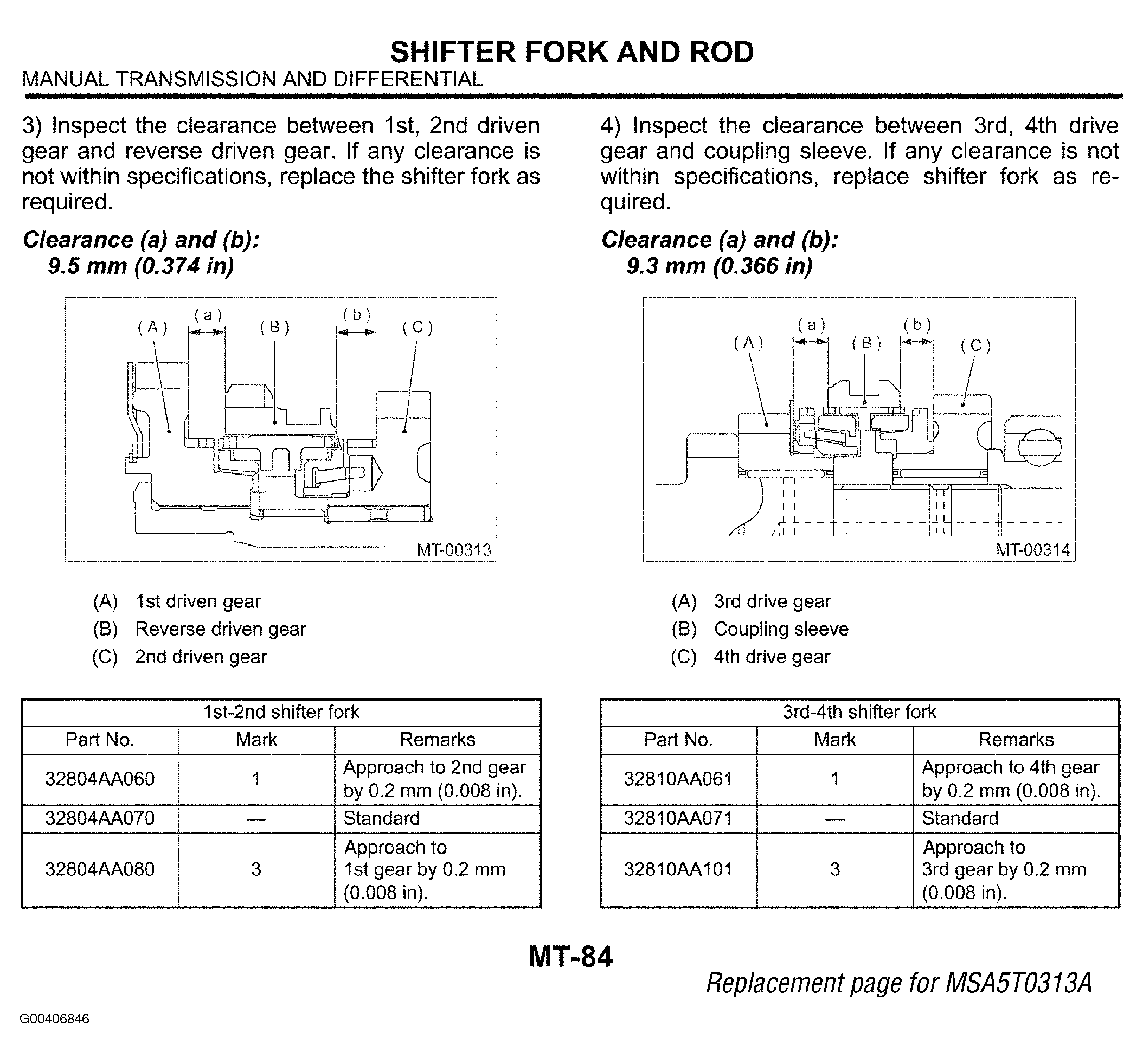

Fig 22: Replacement Page For MSA5T0313A, Page MT-84
G00406846

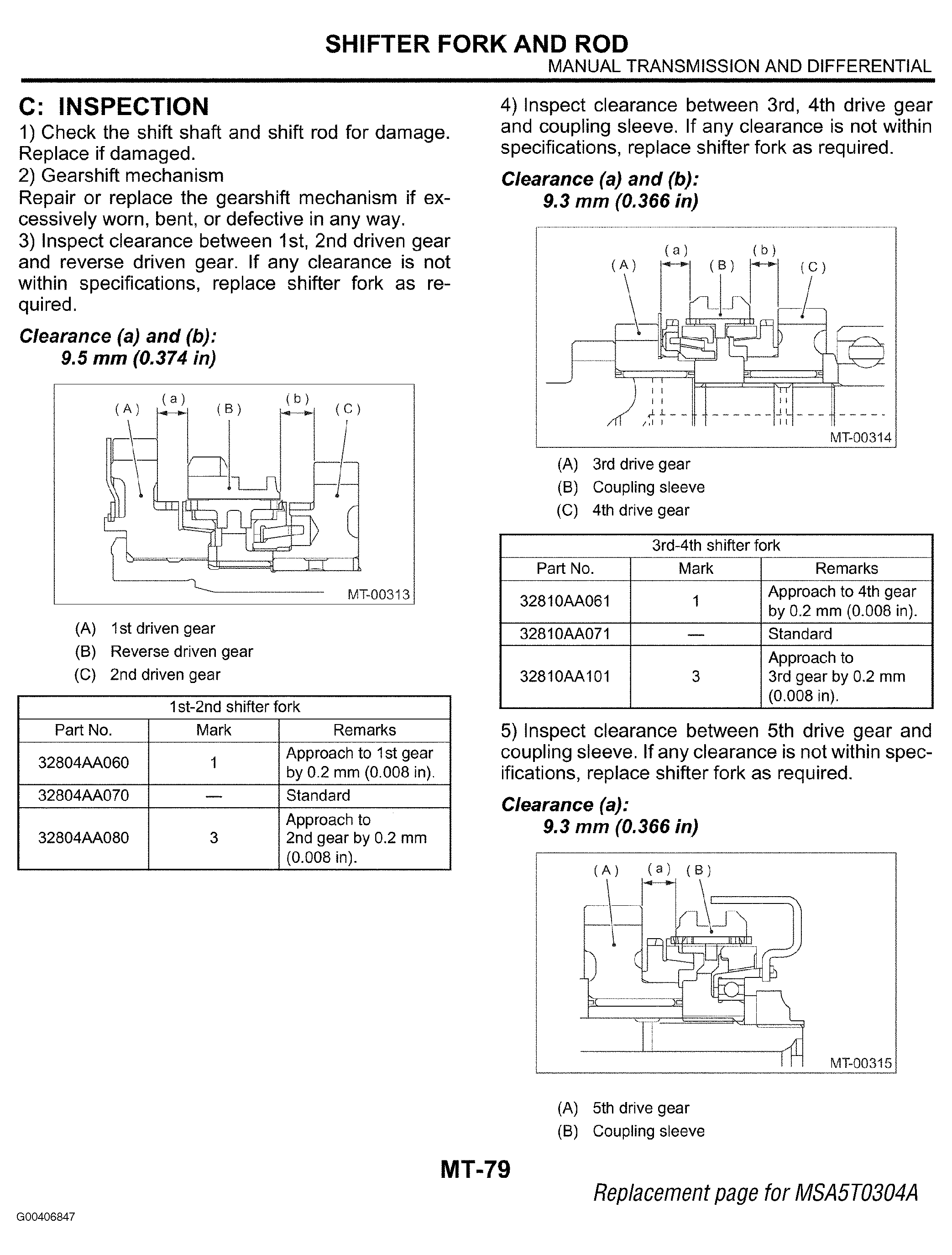

Fig 23: Replacement Page For MSA5T0304A, Page MT-79
G00406847

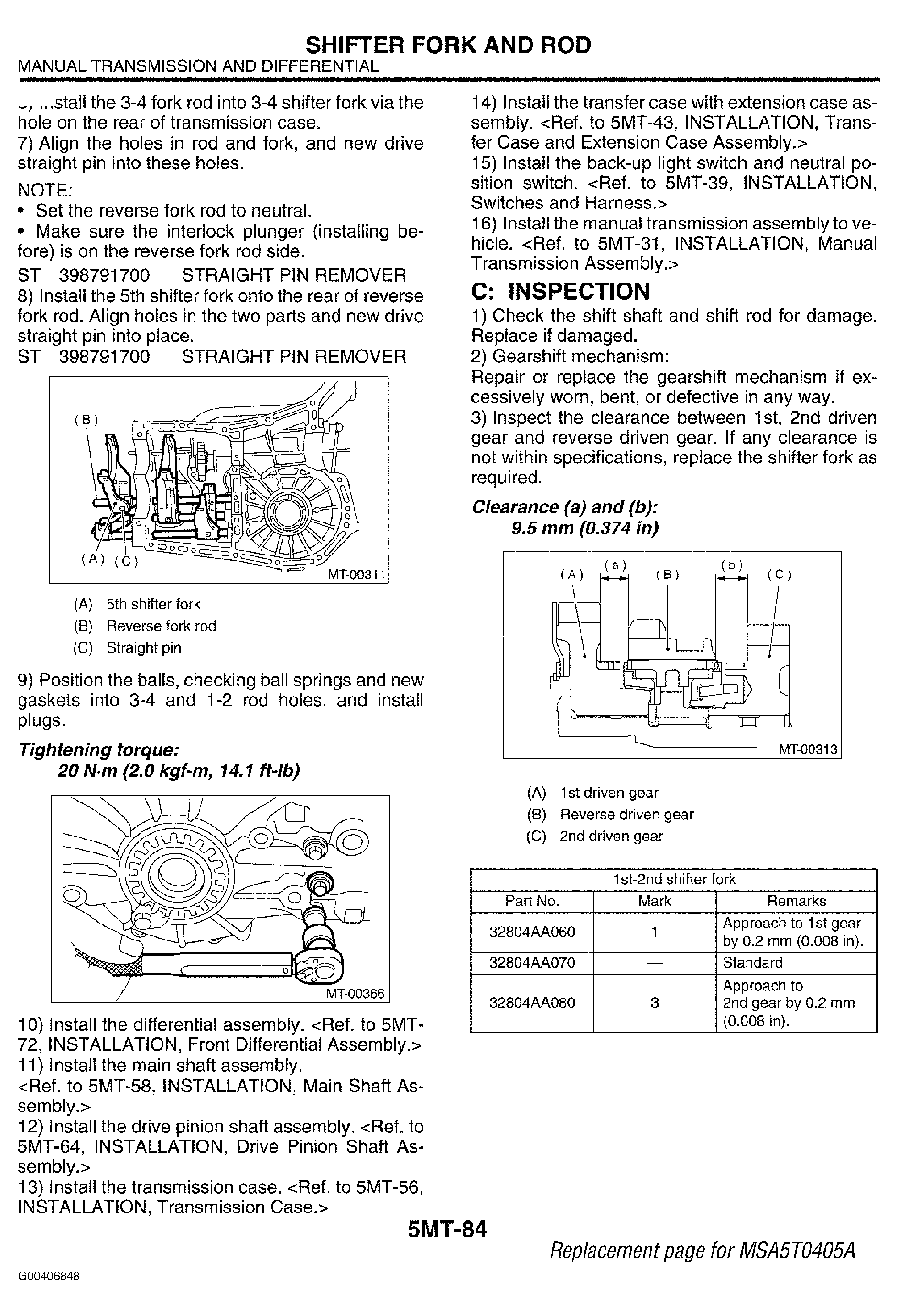

Fig 24: Replacement Page For MSA5T0405A, Page 5MT-84
G00406848

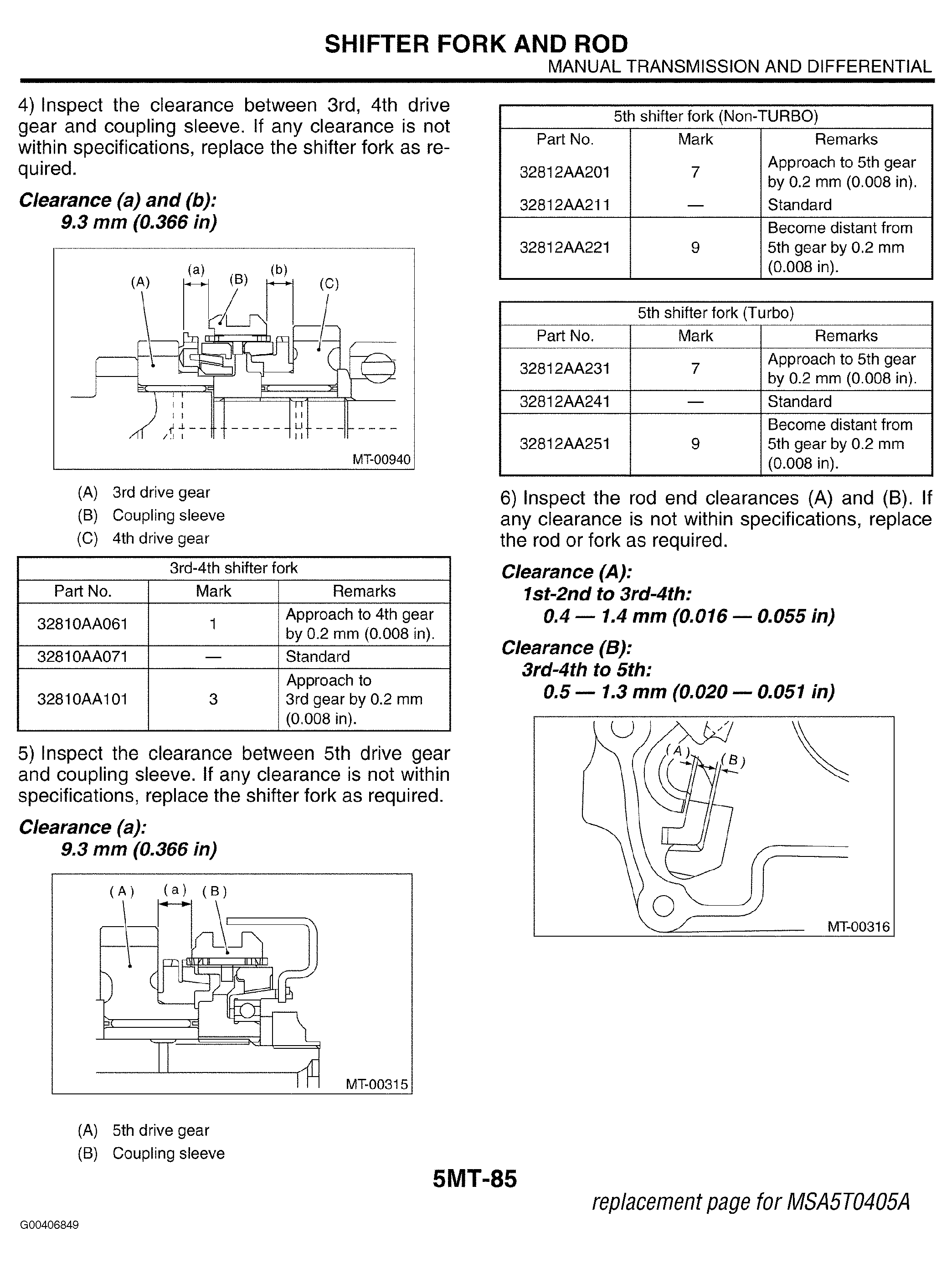

Fig 25: Replacement Page For MSA5T0405A, Page 5MT-85
G00406849

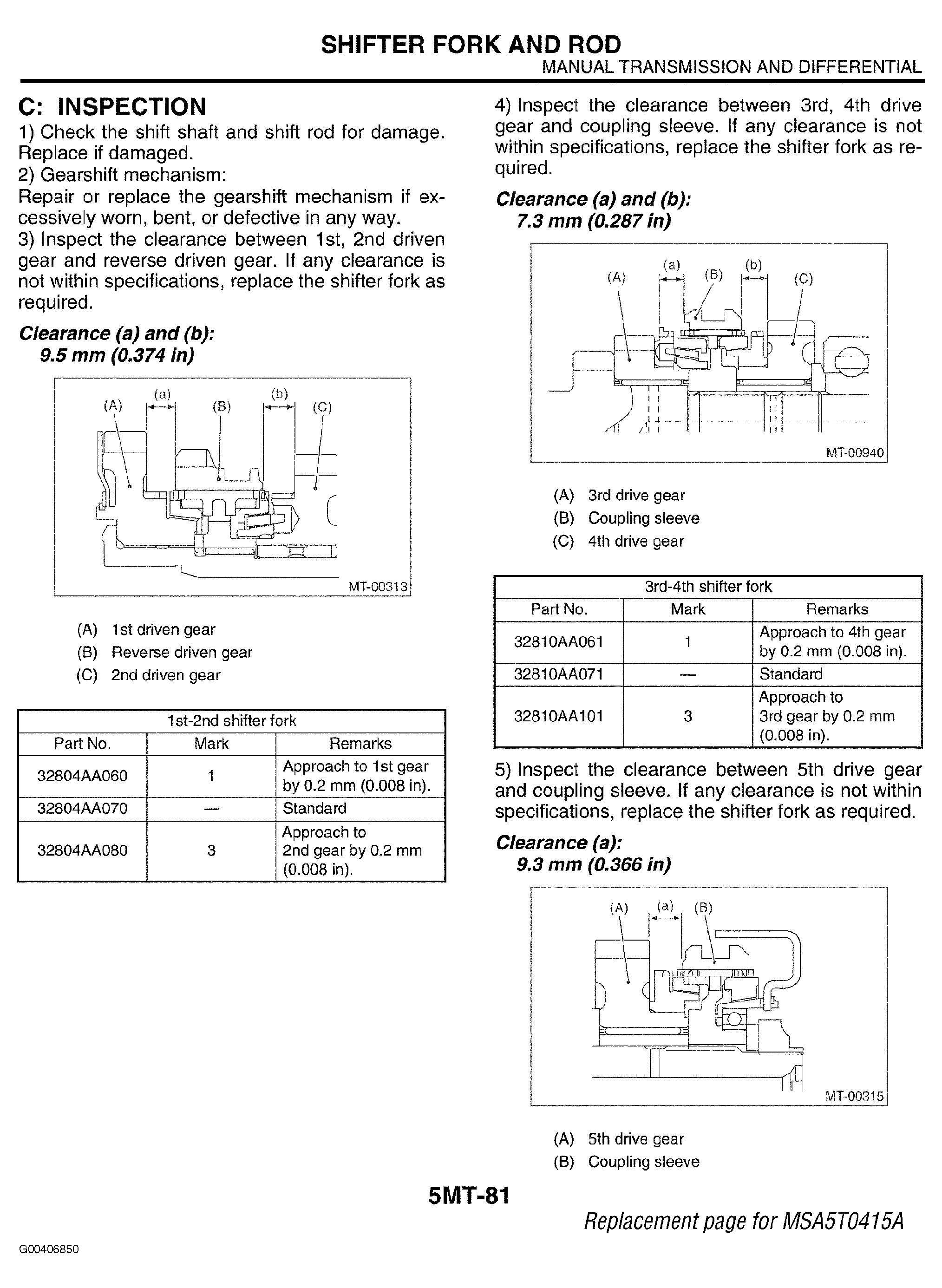

Fig 26: Replacement Page For MSA5T0415A, Page 5MT-81
G00406850
