Mode Control Panel Change (TIPS 0201-09)

Publication date: 2001-02-01
Reference number: TIPS 0201-09

MODE CONTROL PANEL CHANGE

TECHNICAL INFORMATION TIP - MANUFACTURER

Reference Number(s): TIPS 0201-09, Date of Issue: February, 2001

SUBARU:	2001 Legacy, Outback, Forester
CATEGORY:	Subaru Tech T.I.P.S. 2001
GROUP:	10 - Heating Ventilation & A/C Systems

DESCRIPTION

(10) MODE CONTROL PANEL CHANGE

The mode control panel has been changed for the Defrost position on 2001 MY Legacy, Outback, and Forester vehicles (see Fig 1 and Fig 2 ). The reason for the change is to remind the operator to use the Fresh Air position instead of the RECIRC position to lessen the possibility of interior window fogging.

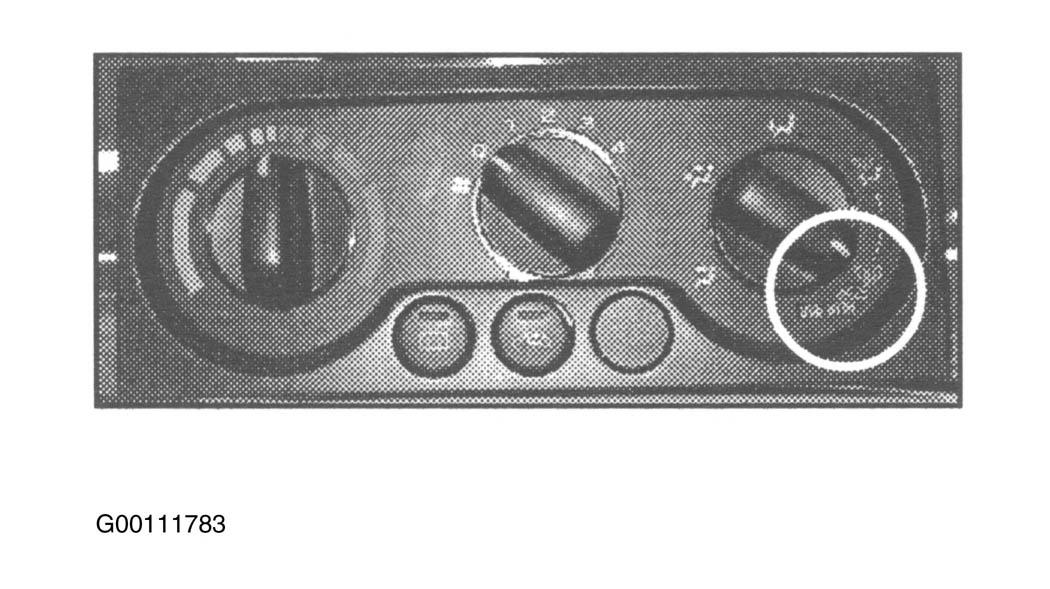

Fig 1: Legacy Mode Control Panel

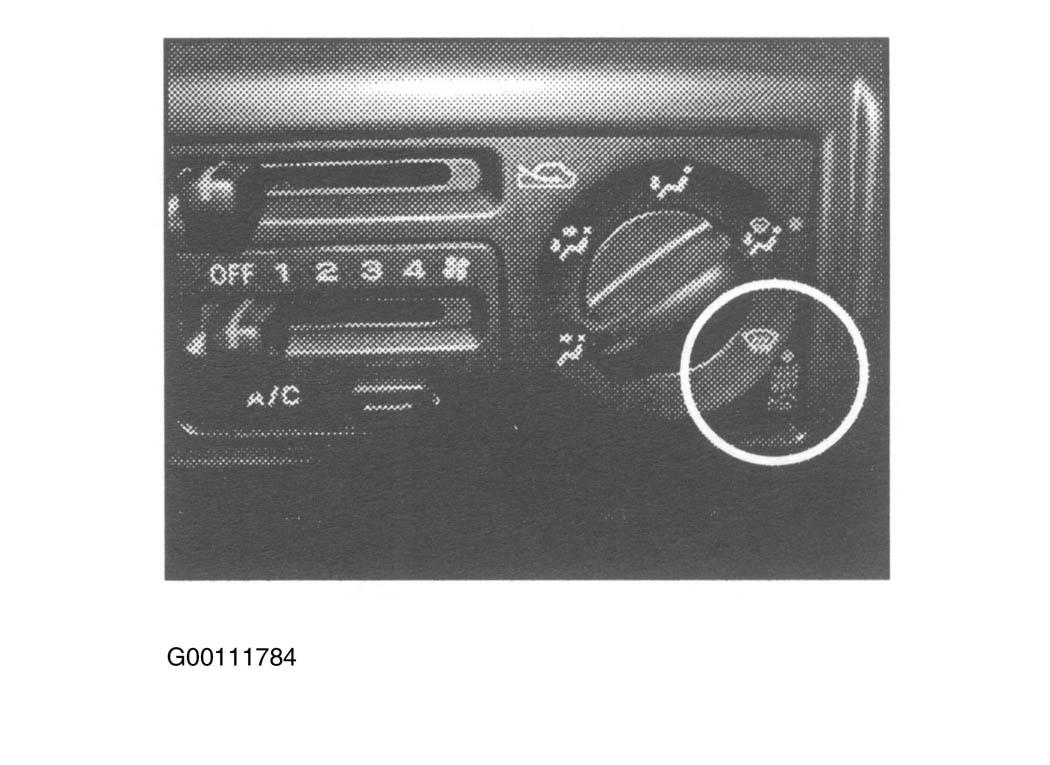

Fig 2: Forester Mode Control Panel
