2.5 L Model

  1. Install reservoir tank to bracket.
  2. Connect pipes D to return hose and suction hose to oil pump.

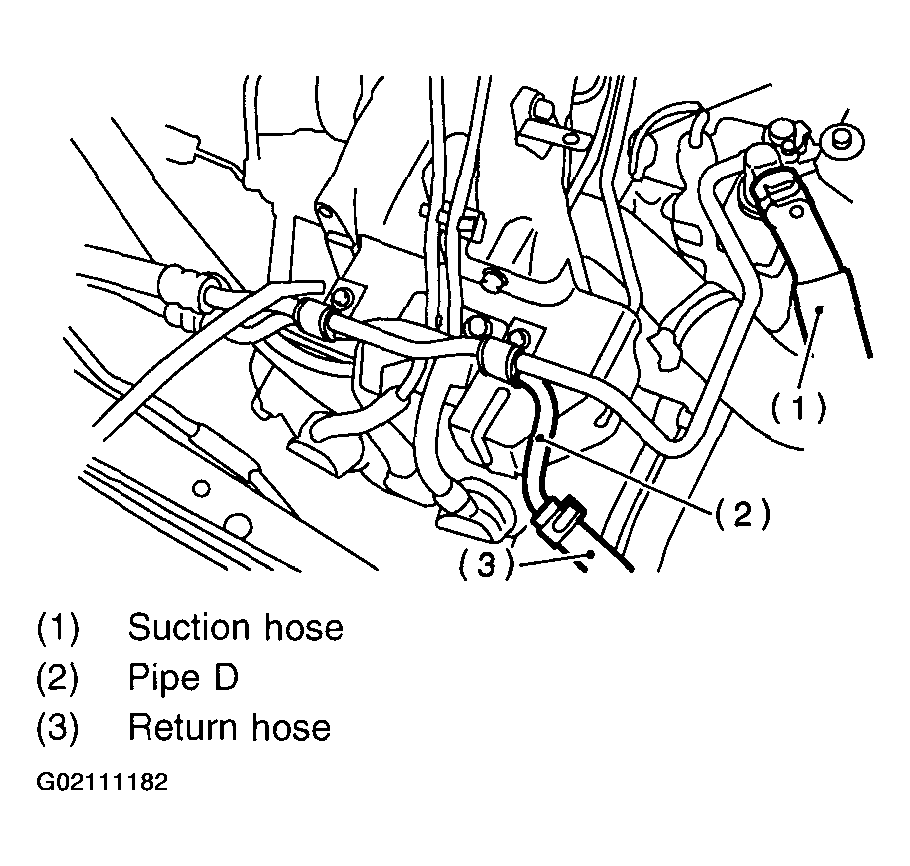

    Fig 1: Connecting Pipes D To Return Hose & Suction Hose To Oil Pump
    G02111182
  3. Feed the specified power steering fluid. See Power Steering Fluid  .
