Front Suspension: Description

For description and component location, see Fig 1.

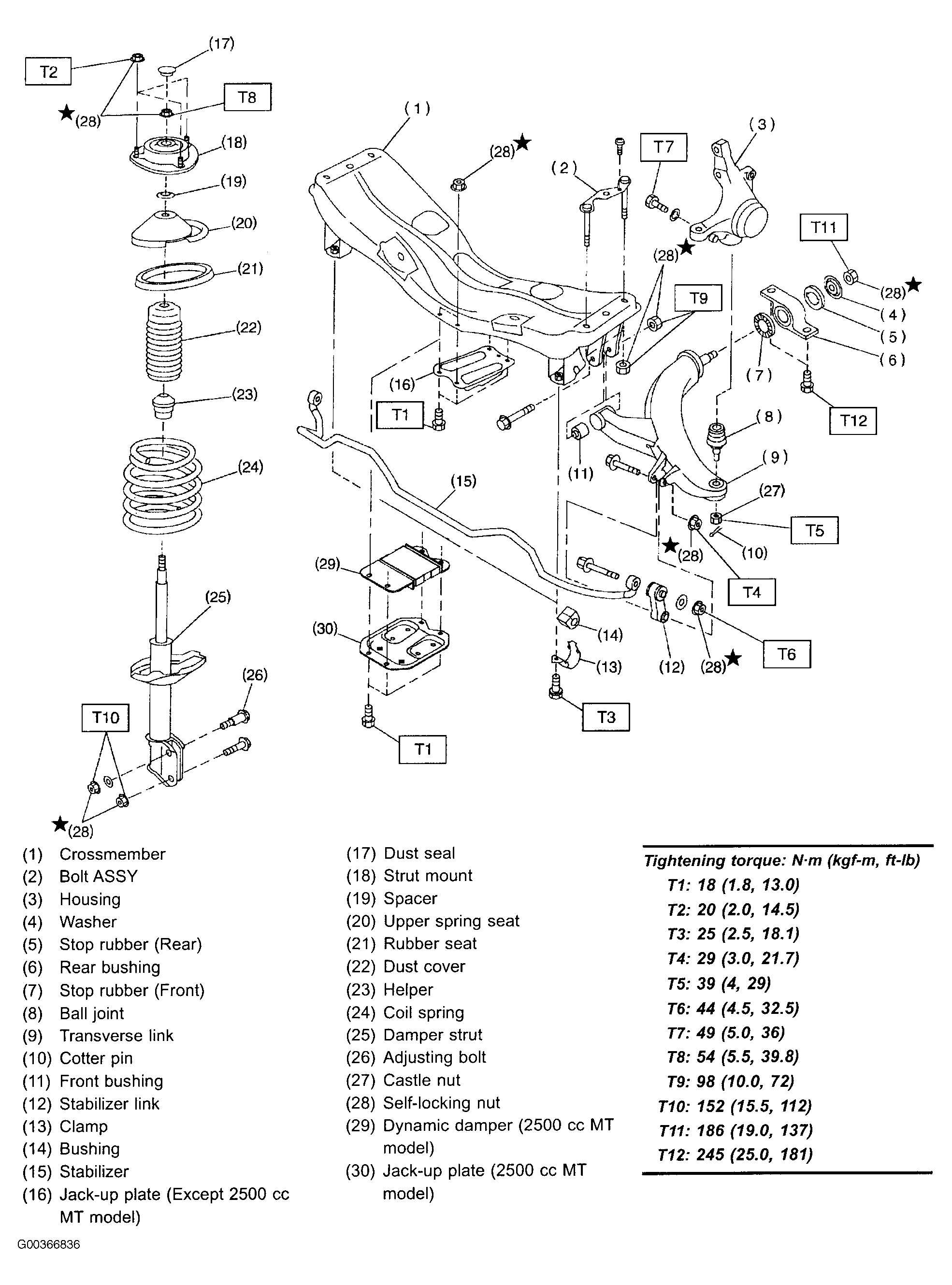

Fig 1: Description & Component Location With Torque Specifications
G00366836Courtesy of SUBARU OF AMERICA, INC.
