Select Lever Cannot Be Shift Locked

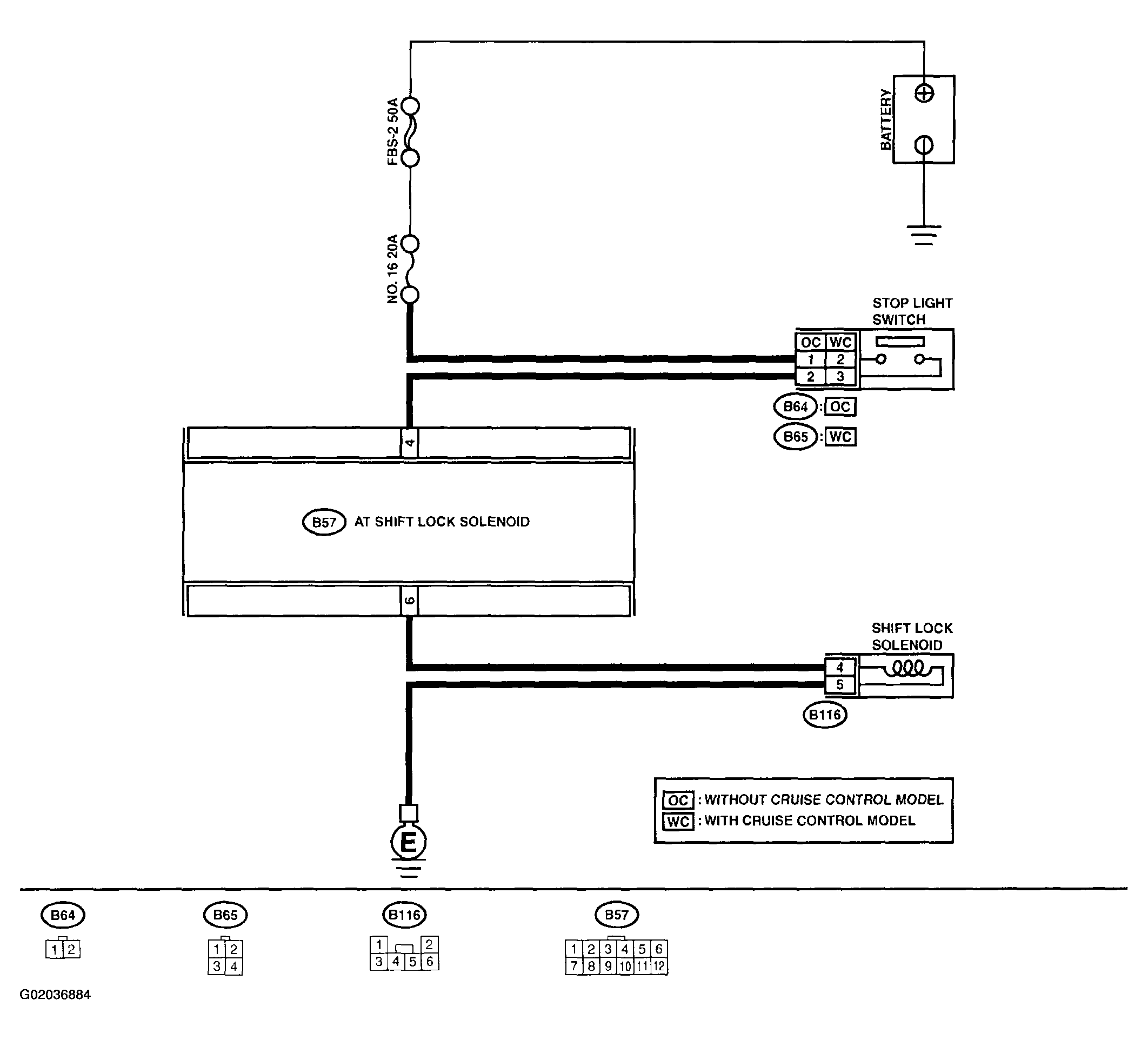

Fig 1: Wiring Diagram
G02036884

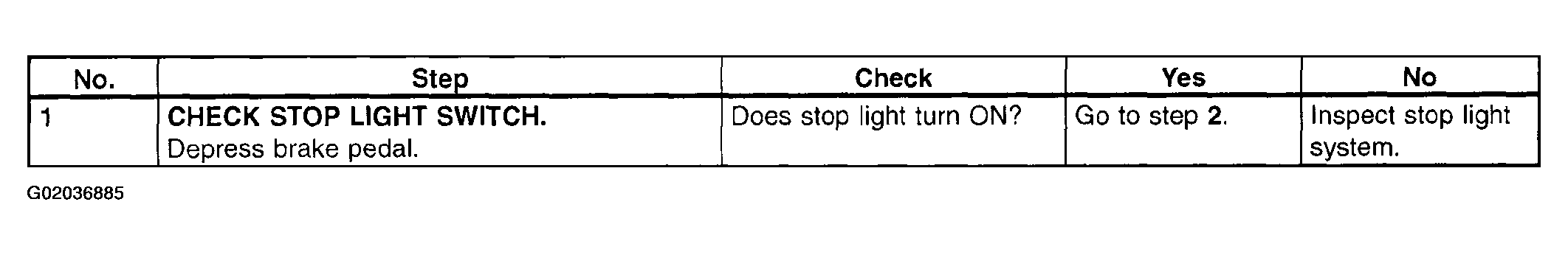

Fig 2: Stop Light Switch Diagnostic Chart
G02036885

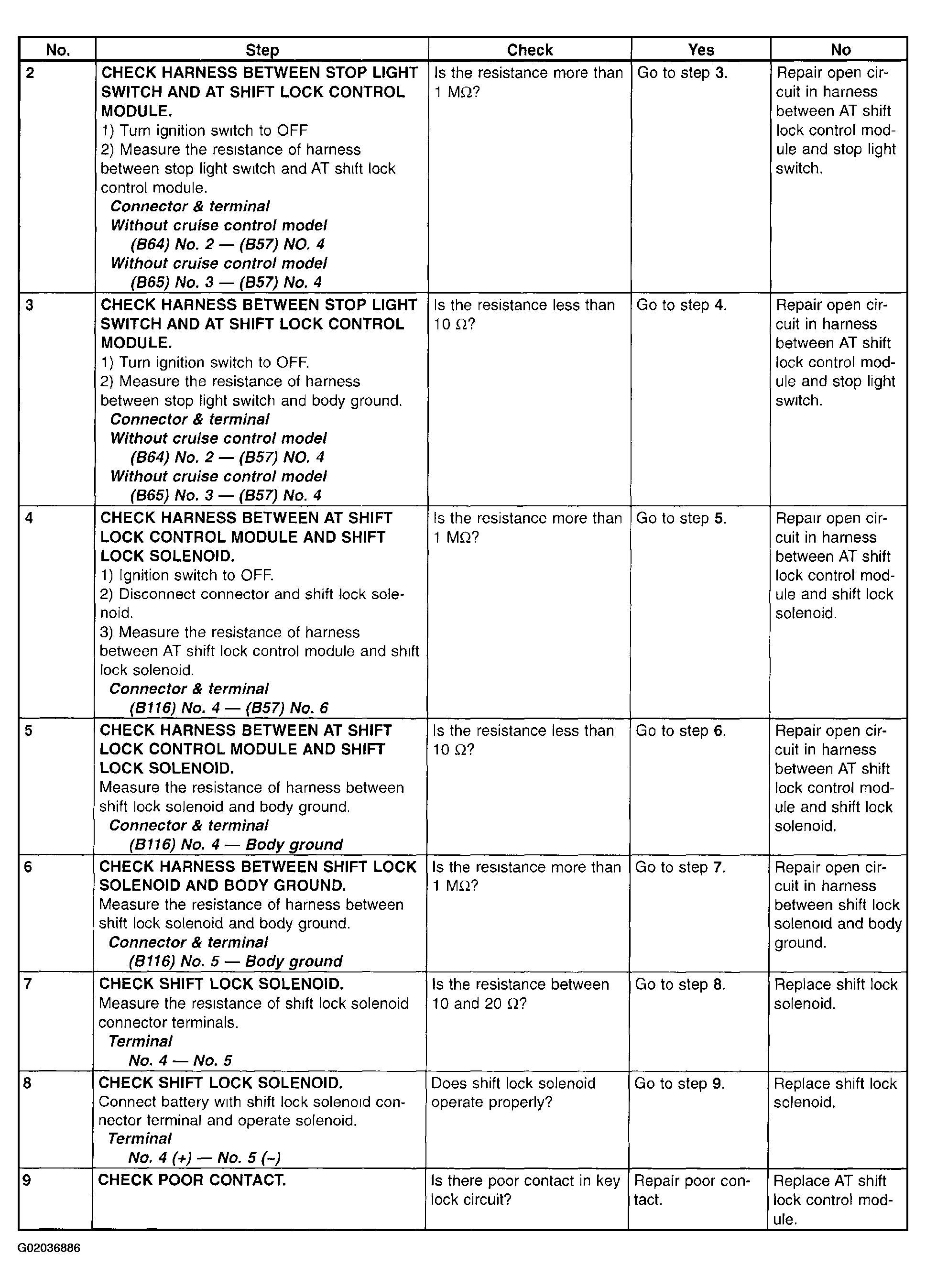

Fig 3: AT Shift Lock Wiring Diagnostic Chart
G02036886
