Electrical Component: Location

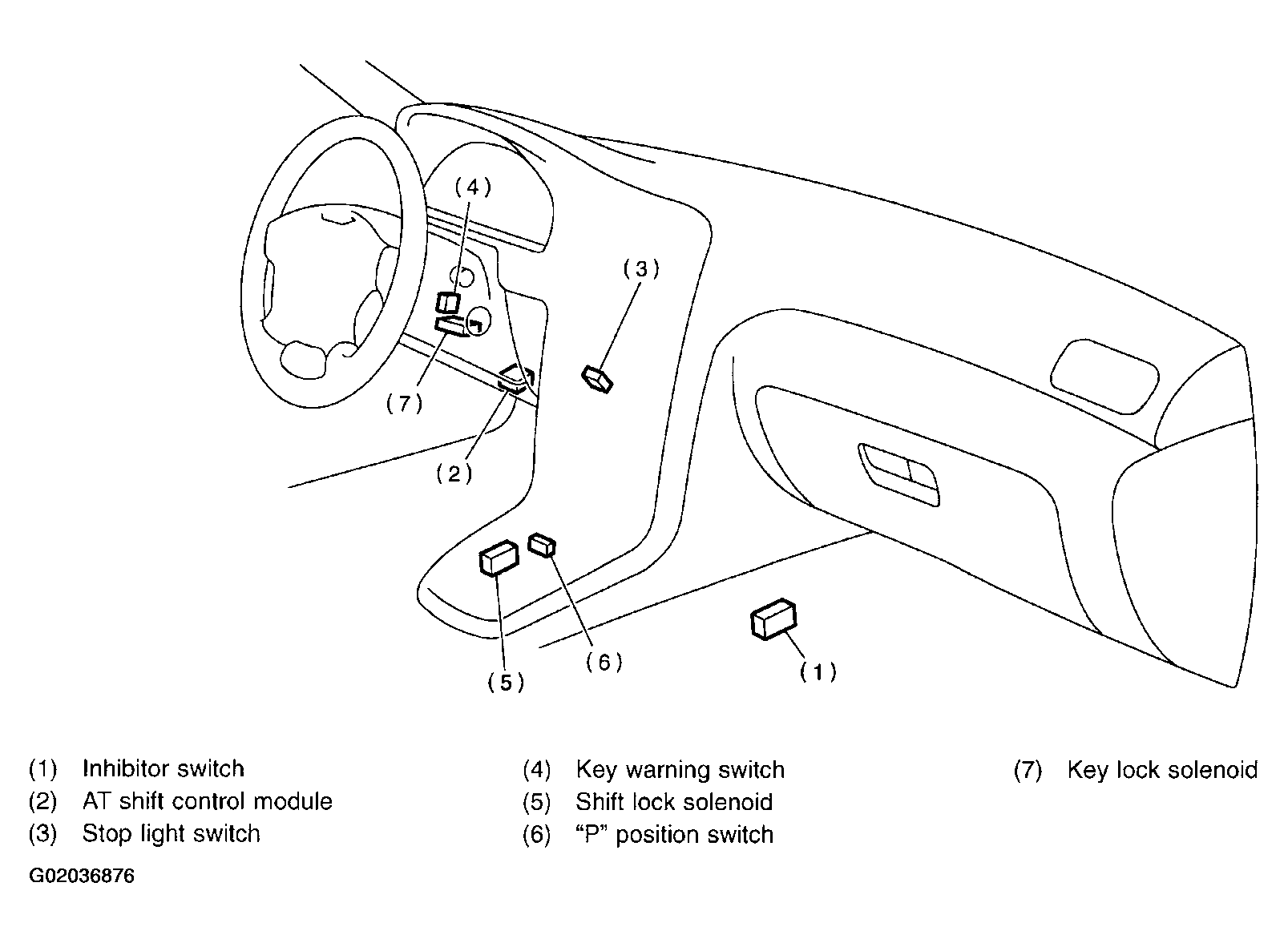

Fig 1: Locating Electrical Components (1 Of 2)

G02036876

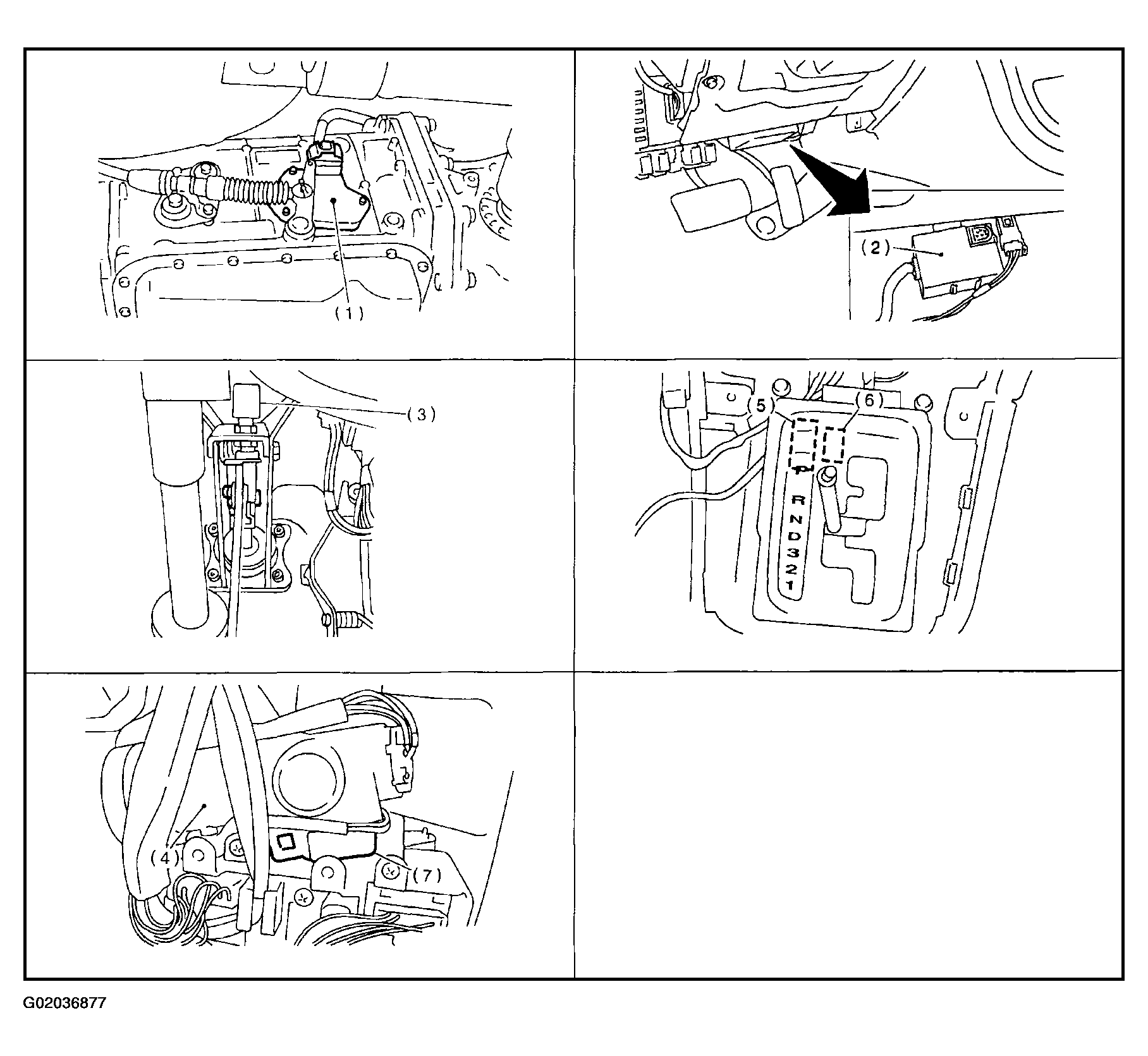

Fig 2: Locating Electrical Components (2 Of 2)

G02036877
