Mt Gear Shift Lever

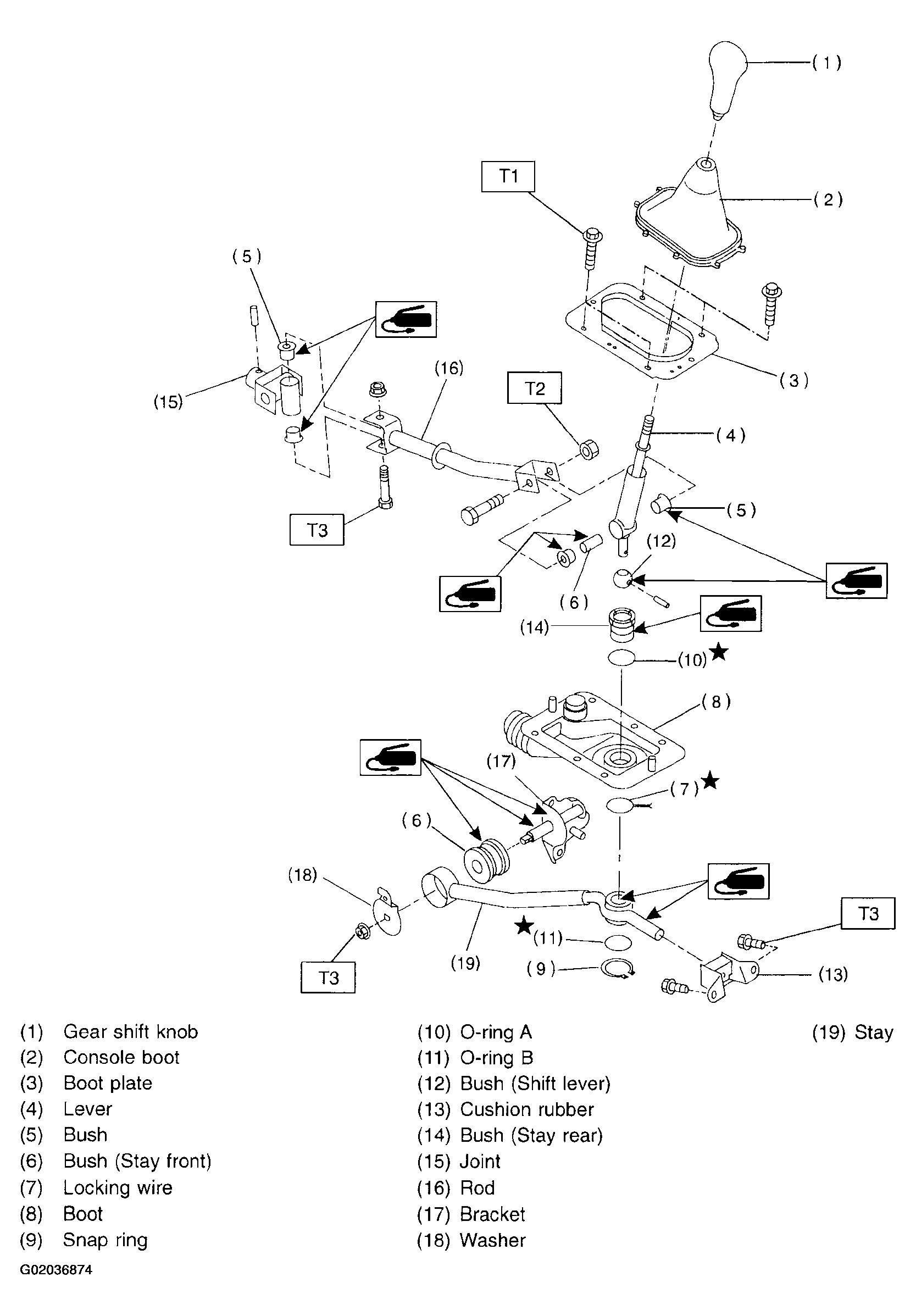

Fig 1: Identifying MT Select Lever Components
G02036874
  1. T1:  7.5 (0.76, 5.5)
  2. T2:  12 (1.2, 8.7)
  3. T3:  18 (1.8, 13.0)
